• Model NO.：4 1,2"-20"
• Sample：Available
• Spec：4 1 ,2"-20"
• ODM：Available
• OEM：Available
• Color：Black,Red,Yellow
• Drawing：Available
• Transport Package：Wood Cases
• Specification：5 1,2"* 8 1,2"
• Trademark：ZS
• Origin：Henan, China
• HS Code：843143100
• Production Capacity：5000PCS,Month

Basic Info.

Model NO. 4 1/2"-20" Sample Available Spec 4 1 /2"-20" ODM Available OEM Available Color Black/Red/Yellow Drawing Available Transport Package Wood Cases Specification 5 1/2"* 8 1/2" Trademark ZS Origin Henan, China HS Code 843143100 Production Capacity 5000PCS/Month

Product Description

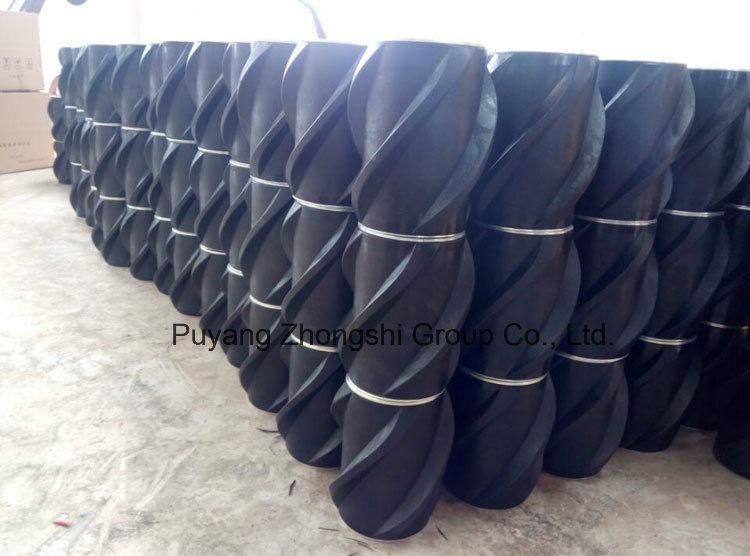

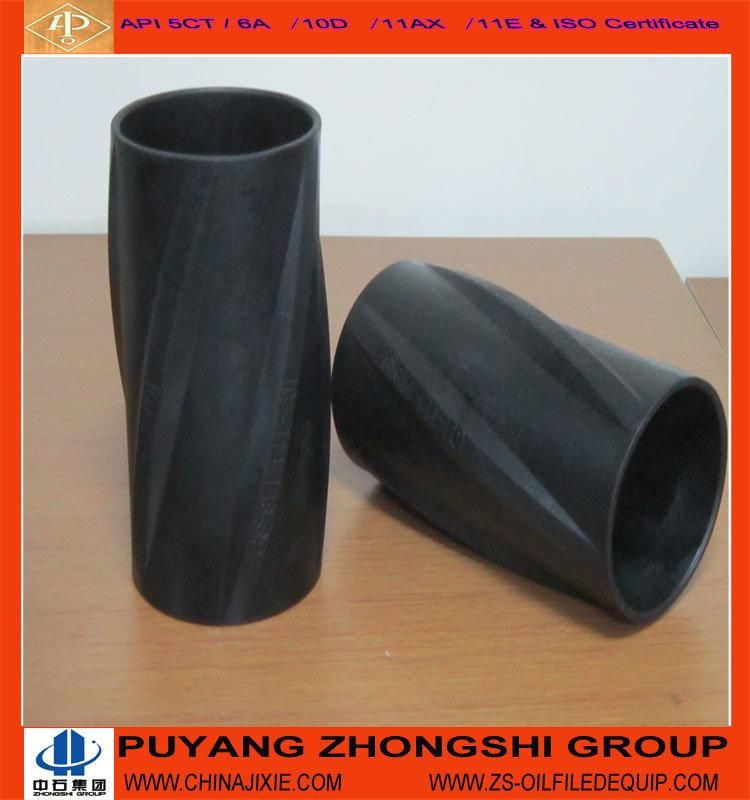

                              spiral blade polymer centralizer with set screws

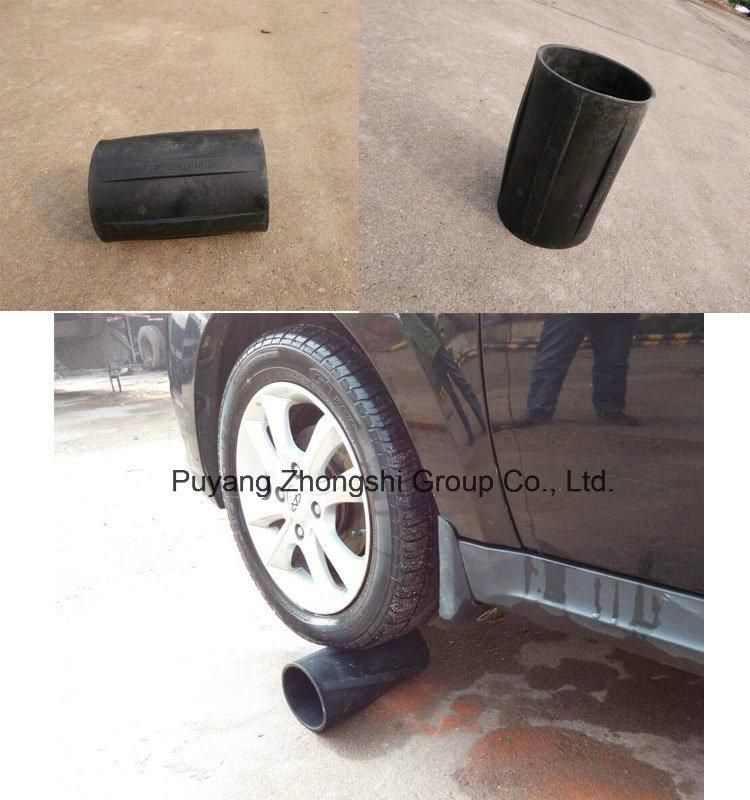

Composite Casing Centraliser is the ultimate in down-hole centralisation, offering field proven lower friction coefficients leading to superior drag and rotational torque reduction. High abrasion resistant proprietary engineered polymer ensures maximum stand-off at TD. Robust enough to meet the challenges of today's most demanding wells.

Composite Materials:
- Moulded during high pressure high temperature process
- Spiral Blades 22-25° and melon shaped
- Passive Straight Blades 5° and melon shaped
- Patented Anti-Swage Rings incorporated in each end
- Generous By-Pass Area provided
- Numerous Pipe x Hole size configurations available
- Low Weight
- Premium Self-Aligning Stop Collars also available

Rigid casing centralizer is used in deviated wells and horizontal wells. There are several blades on the rigid centralizer that can keep casing from contacting the wellbore wall

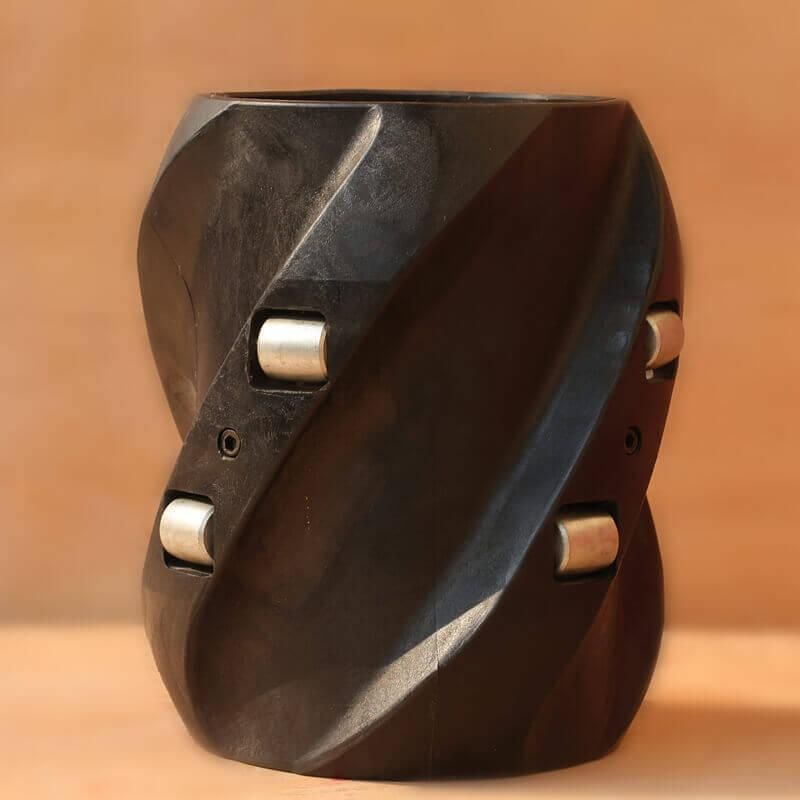

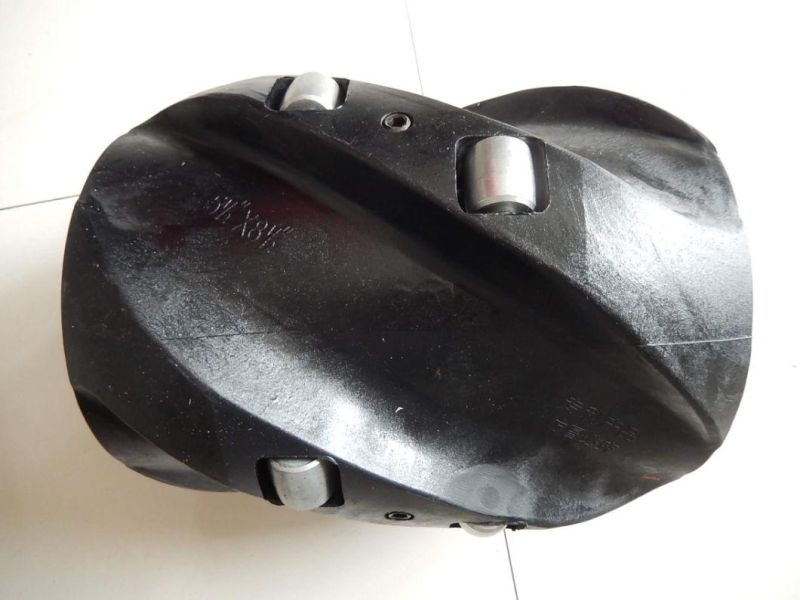

Roller rigid centralizer which is most suitable for highly deviated wells and horizontal wells has two or three rollers in each blade. It can change slipping friction to rolling friction, so it greatly reduces the friction between casing and wellbore wall and let casing go to desired position smoothly

Applications:

Horizontal wells
Deviated wells


Features:
Available with straight blade centralizer and spiral blade centralizer
Cast steel, cast aluminum and light weight casing rigid centralizer are available
Easy to install
Can move on casing freely, also can be fixed on casing by tighten screws.





some specifications for reference:



Model(in)	Hooping In-Dia.(mm)	Hooping  thickness  (mm)	Hooping height(mm)	Total Length(mm)	Max. Out-Dia.(mm)	Spring  Pieces
5-1/2*8-1/2	142-148	3-5	90-120	650±50	225±5	5
7*9-5/8	181-186	3-5	90-120	650±50	255±5	6
7*8-1/2	181-186	3-5	90-120	650±50	235±5	6
8-5/8*12-1/4	223-228	3-5	90-120	650±50	330±5	8
9-5/8*12-1/4	250-255	3-5	90-120	650±50	330±5	8
10-3/4*12-1/4	274-276	3-5	90-120	650±50	330±5	9
13-3/8*17-1/2	342-347	3-5	90-120	650±50	450±5	11
18-5/8*24	476±1	3-5	90-120	600±50	610±5	12
20*26	510±1	3-5	90-120	600±50	660±5	12
