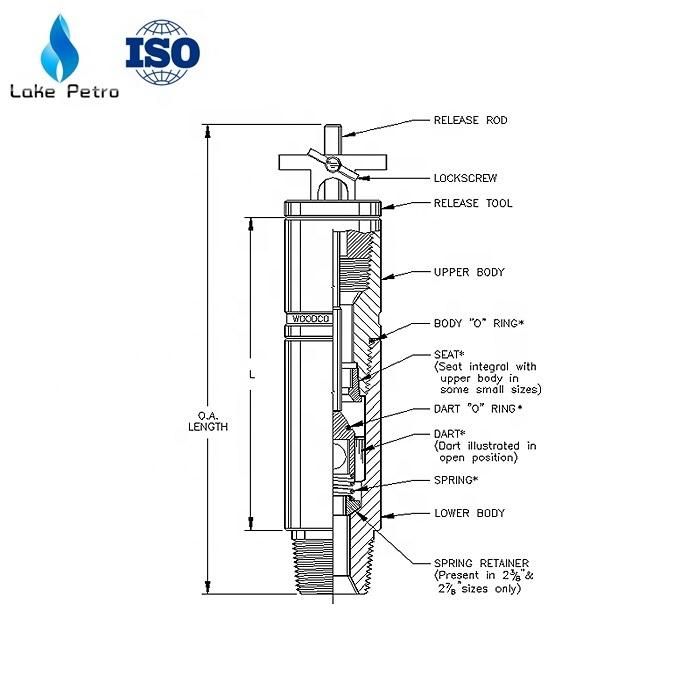

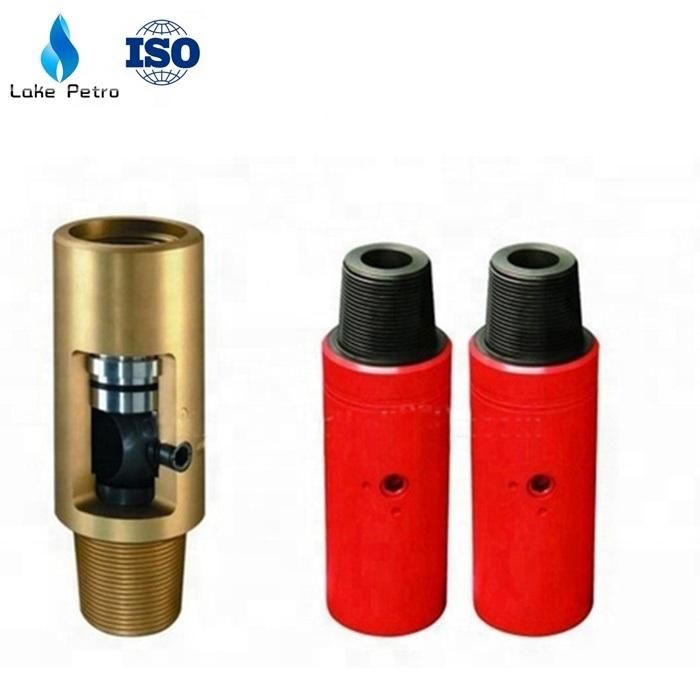

China API Drop-in Check Valve
Dongying Lake Petroleum Technology Co., Ltd.- After-sales Service：1 Year
- Warranty：3 Months
- Manufacturing Process：Forging
- Surface Treatment：Spray-Paint
- Operation Pressure：Atmospheric Pressure
- Material：Alloy
Base Info
- Model NO.：all type
- Transport Package：Wooden Case
- Specification：Std
- Trademark：Lake Petro
- Origin：Shandong, China
- HS Code：8431431000
- Production Capacity：500 PCS, Month
Description
Specifications - Full Opening Safety Valve
| Model | XS105-T44 | XS110-T51 | XS124-T62 | XS127-T62 | XS133-T57 | XS133-T57 | XS134-T62 |
| O.D. | φ105 | φ110 | φ124 | φ127 | φ133 | φ133 | φ134 |
| I.D. | φ44 | φ51 | φ62 | φ62 | φ57 | φ57 | φ62 |
| Connection | 2A10X2A11 | 210X211 | 2 7/8 EUE | 2 7/8 EUE | XT39 | 4 1/2VAM | 310X311 |
| Length | 732 | 726 | 578 | 578 | 773 | 1173 | 800 |
Specifications - Full Opening Safety Valve
| Model | XS134-T62 | XS146-T50.8 | XS152-T76 | XS152-T76 | XS178-T76 | XS178-T76.2 | XS190-T82.6 |
| O.D. | φ134 | φ146 | φ152 | φ152 | φ178 | φ178 | φ190 |
| I.D. | φ60 | φ50.8 | φ76 | φ76 | φ76 | φ76.2 | φ82.6 |
| Connection | 4 1/2NU | NC31 | 3 1/2NU | 3 1/2 EUE | 3 1/2EUE | 4A10X4A11 | 410X411 |
| Length | 580 | 832 | 640 | 617 | 675 | 885 | 895 |
Also, we can do customizing if the drawing is provided.
Also, we can do customizing if the drawing is provided.
FAQ
How to order?
Please send us your inquiry with detail item description or with Model number.
If there is no packing demand we take it as our regular exported standard packing.
We will offer you an order form for filling. We will recommend you the most suitable model according to information you offered.
You send us your detail requirement, we provide quotation to you.
Can I expect a quality products?
All the production and processing are strictly according to ISO 9001:2008 and API standard. At the same time, mature production technology ensuring the quality satisfy international request. We also welcome the third party inspection, such as BV, SGS and TUV.
The information you may like to know before Payment:
1. Methods of Payment:
T/T (Telegraphic Transfer) or L/C at sight
2. Shipping way
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
3. Quality Control
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.
