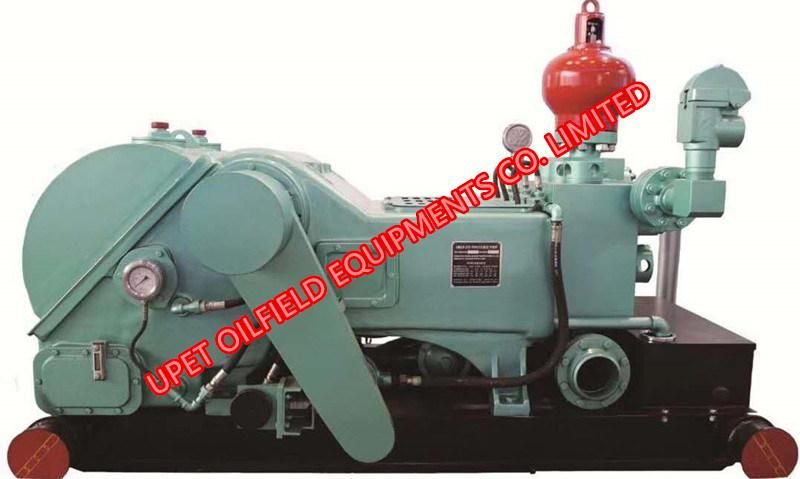

Bw Series Triplex Mud Pump Bw150/Bw160/Bw250/Bw320/Bw400/Bw420/Bw450/Bw500/Bw600/Bw850 etc
UPET GROUP CO., LTD.- Certification：CE, ISO 9001:2000, ISO 9001:2008, API
- Power Source：Electric&Engine
- Operation Pressure：3500psi-7500psi
- Material：Cast Steel&Forged Steel
- Type：Triplex Piston Drilling Mud Pump
- Mud Pump：Professional Supplier of Drilling Mud Pump
Base Info
- Model NO.：BW150,BW160,BW250,BW320,BW400,BW420,BW450,BW500
- Warranty：1 Year
- Condition：New
- Application：Oilfield
- Transport Package：Container
- Specification：8Ton-26Ton
- Trademark：UPET
- Origin：China
- HS Code：8413509090
- Production Capacity：120 Sets,Year
Description
BW160/BW200/BW250 mud pump are mainly used for irrigation agricultural machinery. the main characteristic is the high pressure,lift much,less energy consumption,easy operation,high quality and durable,easy to move,especially for mountain terraces of irrigation.
They are also the main equipment of the geological survey,the main role in the process of core drilling boreholes is to supply fluid(mud or water),making it circulate during drilling and carry rock waste back to the ground,in order to achieve and maintain the bottom hole clean and lubricate drill bits and drilling tools with cooling.
Drilling rig and mud pump application range:
1.Projects: Construction drilling of the projects e.g. prospection, geotechnical investigation(geological exploring), railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction;
2. Exploration: Coal mining exploration, Ore exploration;
3. Water well : Small hole diameter water well drilling;
4. Pipe-installing : Geothermal pipe-installing for heat pump;
5. Foundation piling: Small-diameter hole foundation piling drilling.
They are also the main equipment of the geological survey,the main role in the process of core drilling boreholes is to supply fluid(mud or water),making it circulate during drilling and carry rock waste back to the ground,in order to achieve and maintain the bottom hole clean and lubricate drill bits and drilling tools with cooling.
Technical parameter:
Model
Flow
(L/min)
pressure
(Mpa)
Power
(kw)
Suction pipe
diameter (mm)
Drain pipe
diameter (mm)
Size
(mm)
Weight
(Kg)
BW150
150
7
7.5
50
32
1840*795*995
560
BW160
160
10
11
51
32
1840*765*995
480
BW250
250
6
15
76
51
1100*995*650
760
BW300
300
6
15
76
51
1100*995*650
760
BW320
320
8
30
76
51
1280*855*750
1000
BW400
400
8
30
76
51
1280*855*750
998
BW420
420
9
30
83
51
1905*1100*1200
1000
BW450
450
8
37
89
51
2190*855*1200
1000
BW500
500
5
30
104
76
2190*855*1200
1000
BW600
600
6
30
89
51
1000*995*650
700
