Desander Shale Shaker with Capacity 15m3 Per Hour/66gpm

TIANJIN RUILIKE ENGINEERING MACHINERY CO., LTD.
  • Certification：ISO9001:2016
  • Power Source：Electric
  • Operation Pressure：Atmospheric Pressure
  • Material：Cast Steel
  • Type：Drilling Fluid Shale Shaker
  • Trenchless：Solid Control Equipment

Base Info

  • Model NO.：RLKJC15
  • Mud Cleaning System：Desander
  • Transport Package：Plywood Box
  • Specification：15m3
  • Trademark：RLK
  • Origin：Made in China
  • HS Code：8474100000
  • Production Capacity：60

Description


Equipment's function only is solid liquid separation, recycling drilling fluid. (Inlet pipeline connect preconditioning slurry, slurry discharge line connect mud tank.)
ModelRLKJC15-ERLKJC25-ERLKJC70-E

Capacity15m25mStainsteel bar screen and weave
HydrocycloneDN125X1DN150X1DN150X3

Slurry PumpCr27
Flow passage component all are made of alloy Cr27, mechanical seal and packing seal.
Total Power6.3Kw9Kw16.5Kw

Purification Grade
Grade 2
Particle Size
(75mm)
Outlet Diameter3inch
(100mm)4inch
(200mm)
Dimension
2000x1500x1900
2100x1800x2370mm
Weight
1200kgs
1400kgs
2000kgs
Remark30m3/h,100m3/h,150m3/h,200m3/h,250m3/h
Pls contact our salesman about economic type machine with model 30m3/h,100m3/h,150m3/h,200m3/h,250m3/h and so on.Structure:pump+electricity+cyclone+vibration motor+screen
  • Variety of screen sizes
  • Custom sizes to fit your plant
  • Low moisture content
  • Complete dewatering dual deck
  • Good year using for long life
  • Highest quality vibrating electric motors

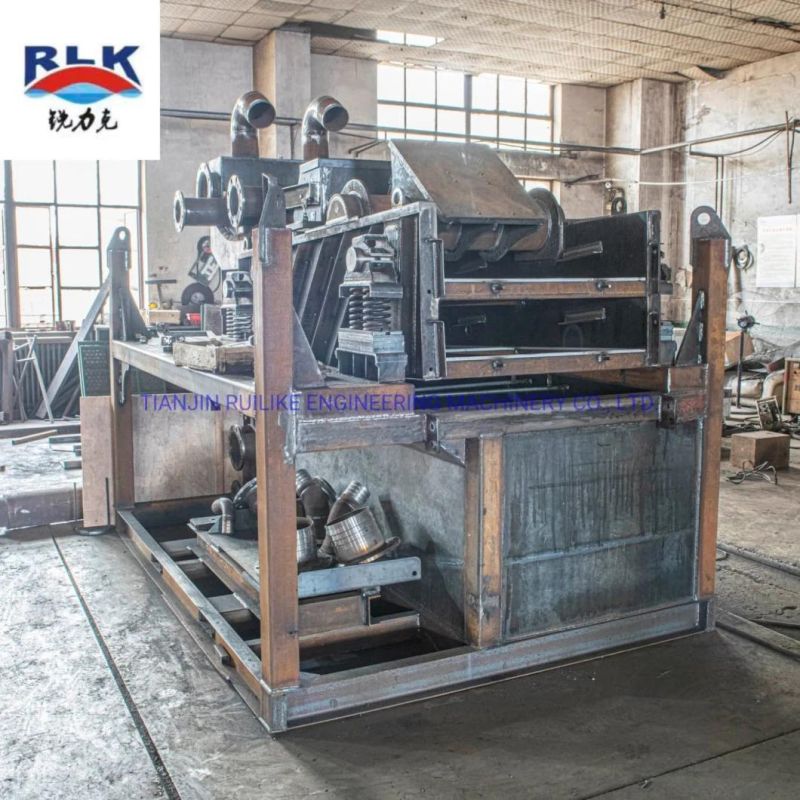

The Picture of Workshop

No finishining
Desander Shale Shaker with Capacity 15m3 Per Hour/66gpm

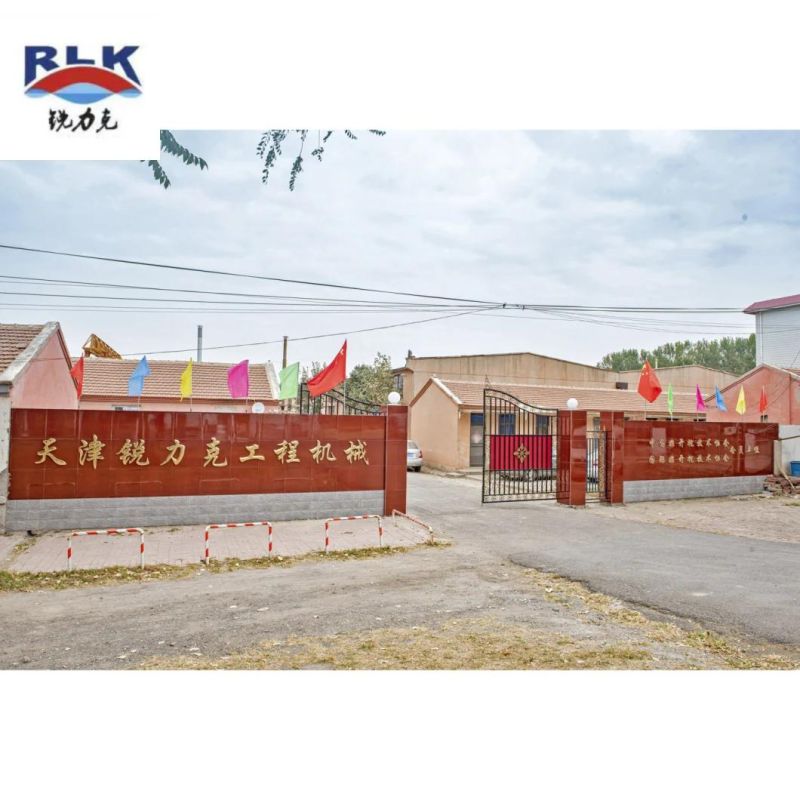

Picture of My factory

Desander Shale Shaker with Capacity 15m3 Per Hour/66gpm
