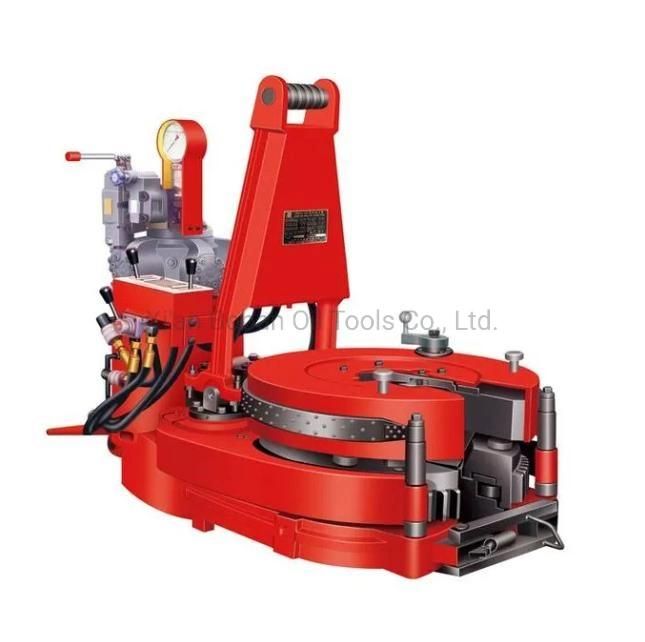

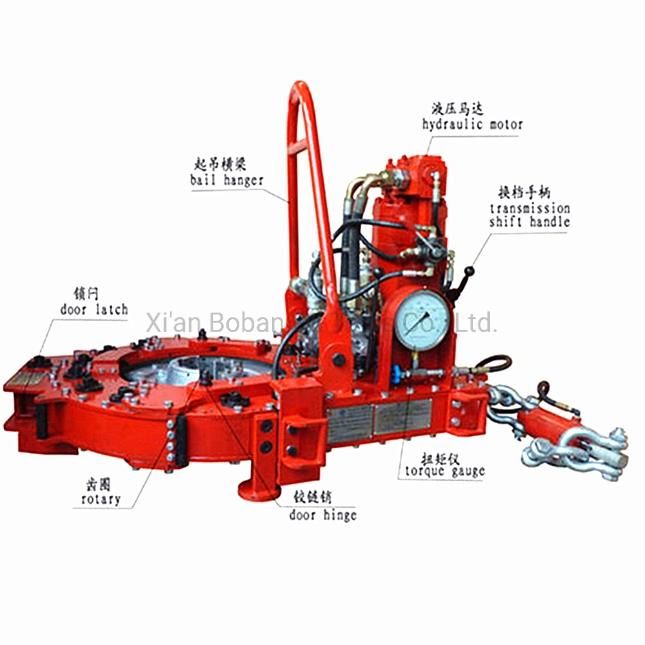

Drill Pipe Power Tong Bbzq203-100 Hydraulic Power Tong
Xi'an Boban Oil Tools Co., Ltd.- After-sales Service：24,7
- Warranty：12 Months
- Manufacturing Process：CNC Milling
- Surface Treatment：Spray-Paint
- Material：Cast Steel
- Usage：Tubular Handling Tools
Base Info
- Model NO.：Boban
- Transport Package：Wooden Case
- Specification：As per sizes
- Trademark：BOBAN & OEM
- Origin：China
- HS Code：8431431000
- Production Capacity：50 PCS Per Month
Description
ModelBBZQ203-125I BBZQ203-100 BBZQ203-100II BBZQ203-100III BBZQ162-50 BBZQ127-25 Size range mm 127-203 127-203 127-203 127-203 85-162 65-127 in 31/2coupling-8body 31/2coupling-8body 31/2coupling-8body 31/2coupling-8body 23/8coupling-5body 23/8coupling-31/2body Max. torque kN.m 125 100 100 100 50 25 ft.lbf 92200 73750 73750 73750 36880 18440 The speed of tong head Hi. rpm 40 40 40 40 60 65 The speed of tong head Lo. rpm 2.7 2.7 2.7 2.7 4.1 10.5 Hydraulic system pressure rating MPa 20 16.6 16.6 16.6 16 12 psi 2900 2400 2400 2400 2320 1740 Hydraulic system flow rating L/min 114 114 114 114 120 180 gpm 30 30 30 30 32 48 Stroke of shifting sylinder mm 1500 1500 1500 1000 1000 in 59 59 59 39.4 39.4 Moving distance of tong mm 0-1500 in 0-59 Lifting distance of tong m 0-485 0-800 in 0-19 0-31.5 Overall dimensions mm 1720*1050*1750 1700*1000*1400 1700*1000*1400 1750*1650*2050 1570*800*1190 1110*790*820 in 68*41*69 67*39*55 67*39*55 69*65*81 62*31*47 44*31*32 Weight kg 2600 2400 2500 3250 1500 620 lb 5730 5290 5510 7165 3310 1366
