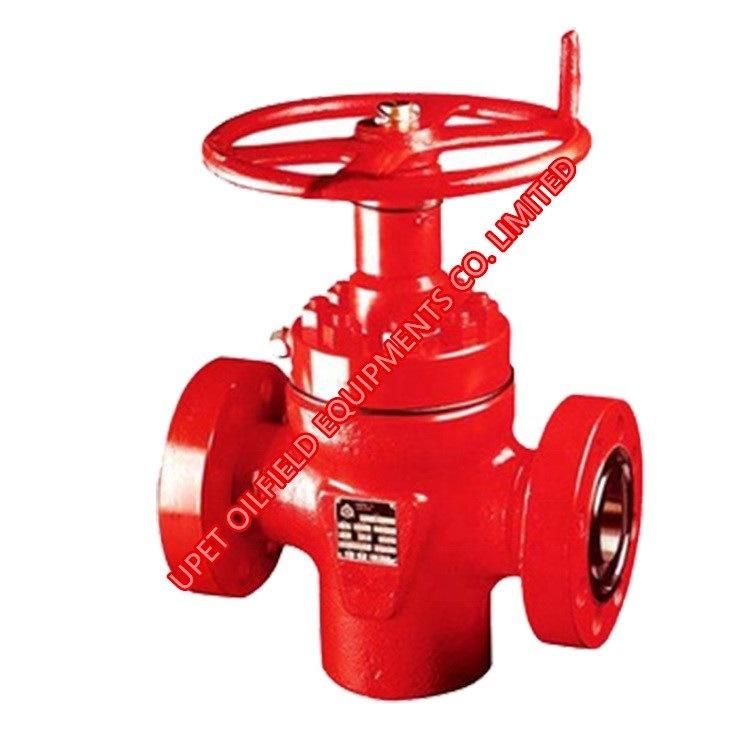

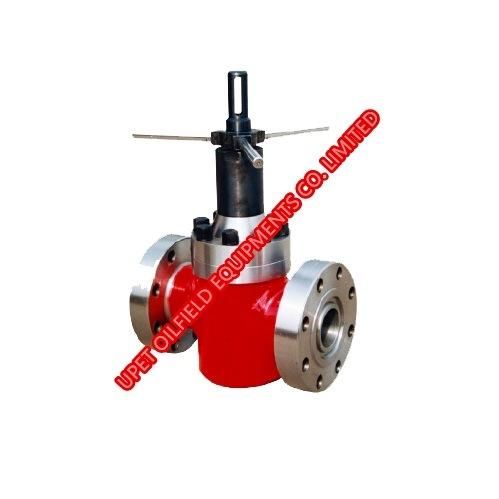

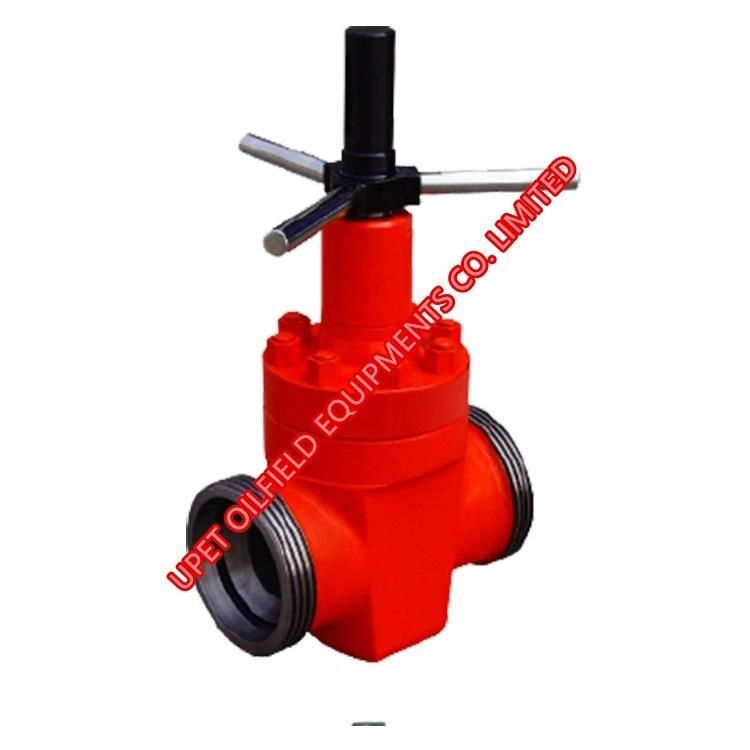

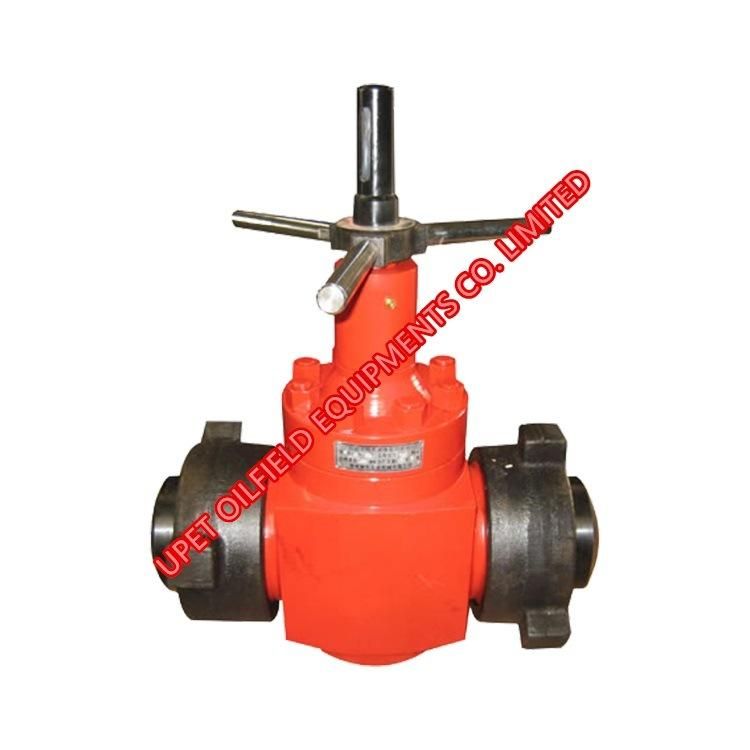

4" Mud Gate Valve, Fig-1002 Hammer Male Connection Both Ends, Min. 5000 Psi Z23y/1002
UPET GROUP CO., LTD.- Manufacturing Process：Forging
- Surface Treatment：Sand Blast
- Operation Pressure：2000psi-15000psi
- Material：Forged Steel
- Gate Valve：for High Pressure Manifold
- Warranty：1 Year
Base Info
- Model NO.：Z23Y-35-100
- Application：Oilfield
- Colour：Customer Requirement
- Transport Package：Container
- Specification：1 13,16"~7 1,16"
- Trademark：UPET
- Origin：China
- HS Code：8481804090
- Production Capacity：10000 PCS,Year
Description
1. Comply with API Spec 6A.
2. Valve structure includes both of styles, rising stem and non-rising stem.
3. End connection type: flange, thread, collar and butt welding.
4. Driving model: manual, gear drive and hydraulic.
5. Gate structure: Integral, expanded.
6. The sealing face of gate and seat is overlaying-welded with hard alloy with erosion and corrosion resistance.
7. The valve seat is classified into floating and ficed structure.
8. Stem filler adopts lip structure with reliable seal and small operation torque.
Working Pressure
2000psi~15000psi
Bore Size
1 13/16"~7 1/16"
Working Media
Oil,Gas,Mud
Working Temperature
-46ºC~121ºC(L~U)
Material Class
AA BB CC DD EE FF HH
Product Specification Level
PSL1 PSL2 PSL3 PSL3G PSL4
Product Performance
PR1
