• Model NO.：KQ65,105
• Type：Composite
• Specification Level：Psl1,Psl2,Psl3,Psl3g,Psl4
• Performance Levels：Pr1,Pr2
• Material Level：AA,Bb,Cc,Dd,Ee,FF,Hh
• Transport Package：Wooden Case
• Specification：KQ65,105
• Trademark：Apimeivalve
• Origin：China
• HS Code：8431431000
• Production Capacity：5000 Sets,Year

Basic Info.

Model NO. KQ65/105 Type Composite Specification Level Psl1,Psl2,Psl3,Psl3g,Psl4 Performance Levels Pr1,Pr2 Material Level AA,Bb,Cc,Dd,Ee,FF,Hh Transport Package Wooden Case Specification KQ65/105 Trademark Apimeivalve Origin China HS Code 8431431000 Production Capacity 5000 Sets/Year

Product Description

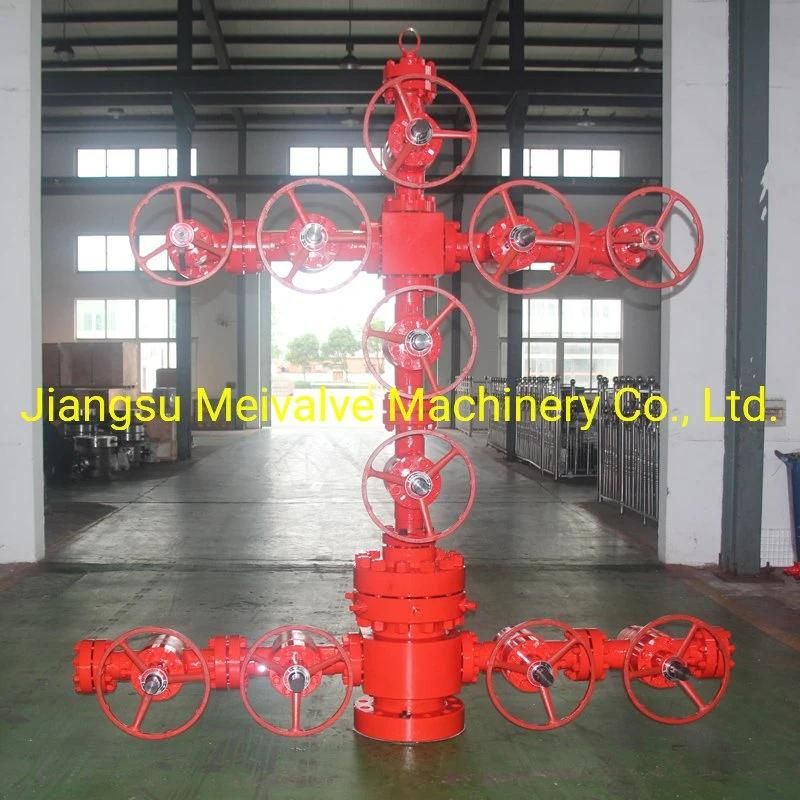

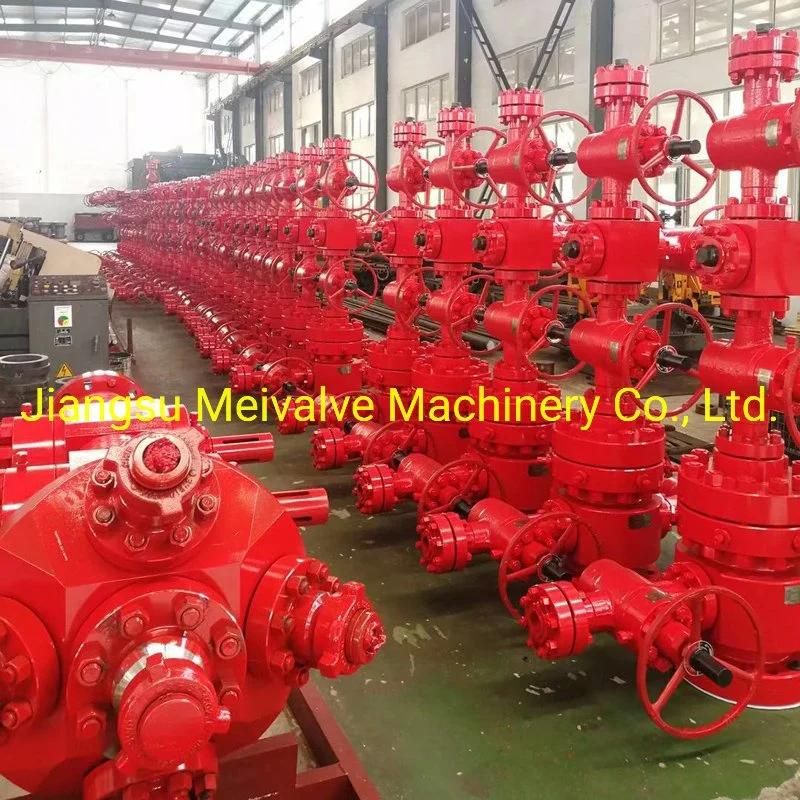

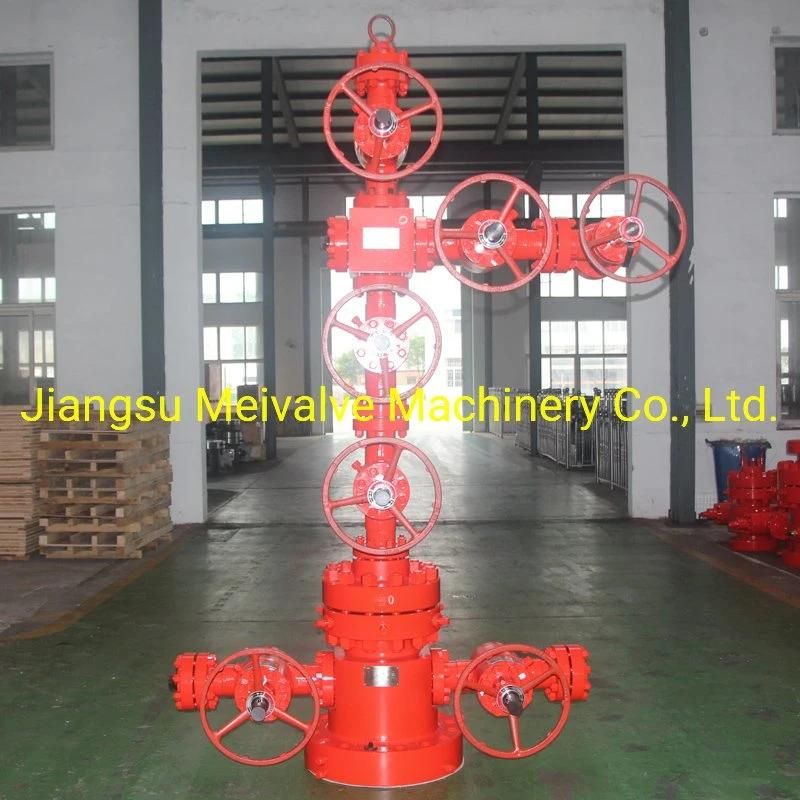

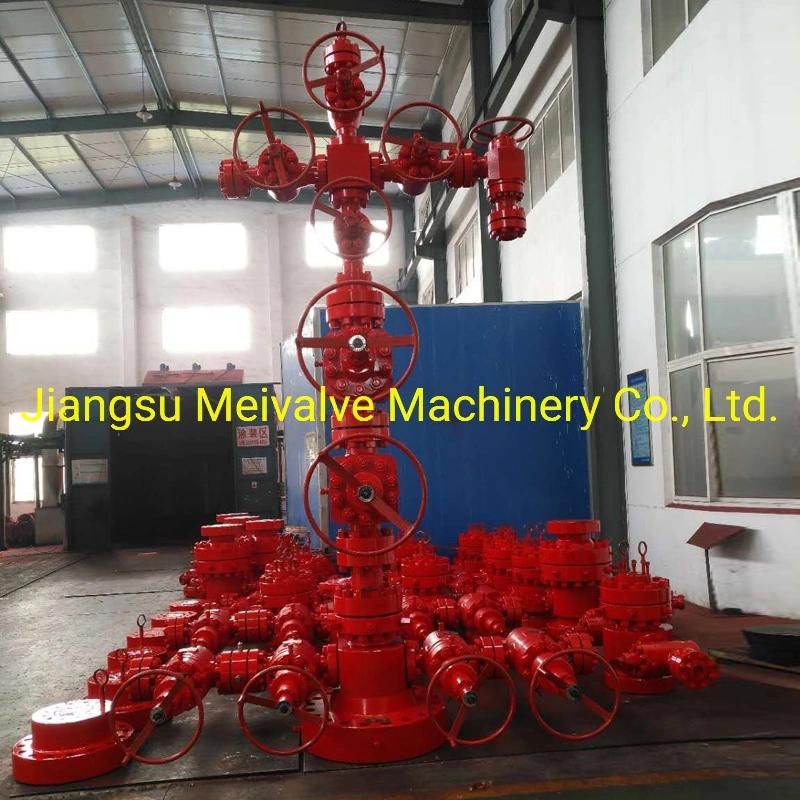

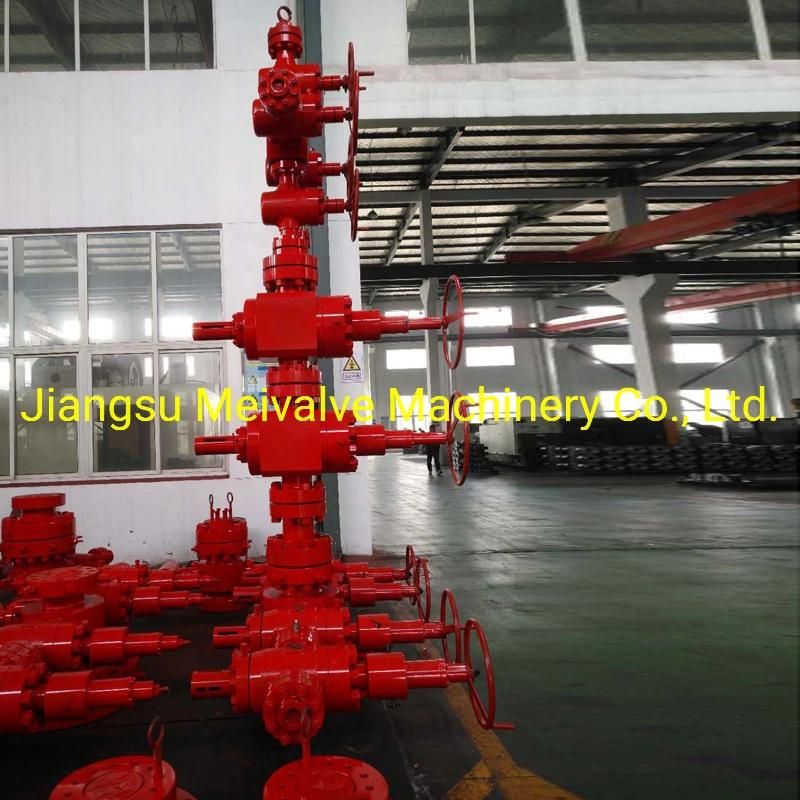

1.Wellhead devices and tree can be divided into oil production wellhead devices, gas recovery wellhead devices, fracturing and acidification wellhead devices, thermal recovery wellhead devices, and other wellhead devices. Wellhead device and tree are mainly assembled by gate valve, throttle valve, three - way, four - way, plug valve emergency cut - off valve and other pressure components.

2.Wellhead and Christmas tree equipment is an important equipment of oil and gas drilling, the casing head, tubing head, oil (gas) tree of three parts, used to connect the casing string and tubing string, and the sealing between the layers of casing and tubing annulus, and can control the production wellhead pressure and adjust the oil (gas) wellhead flow, also can be used in acid fracturing, injection, testing and other special operations.

3.Working Pressur:2000PSi,3000PSi,5000PSi,10000PSi,15000PSi,

Nominal diameter	2-1/16,2-9/16,3-1/16,4-1/16
Specification level	PSL1,PSL2,PSL3,PSL3G,PSL4
Performance levels	PR1,PR2
Material level	AA,BB,CC,DD,EE,FF,HH
Temperature level	K,L,N,P,S,T,U,V
Working Medium	oil,natural gas,mud and gas containing H2S,CO2
Execution standard	API 6A, NACE MR0175
Main Components	Casing Head , Tubing Head , FC type Gate Valves,  Flange, Cross, Choke Valve, Casing Hangers, Tubing Hangers, Pressure Gauges,etc.
