Zq Series Drilling Pipe Power Tong
Shandong Beyond Petroleum Equipment Co., Ltd.- After-sales Service：1year
- Warranty：1year
- Manufacturing Process：Casting
- Model：Zq203-100
- Maximum Torque (Kn.M)：100
- High Gear Speed of Tong Head(Rpm)：40

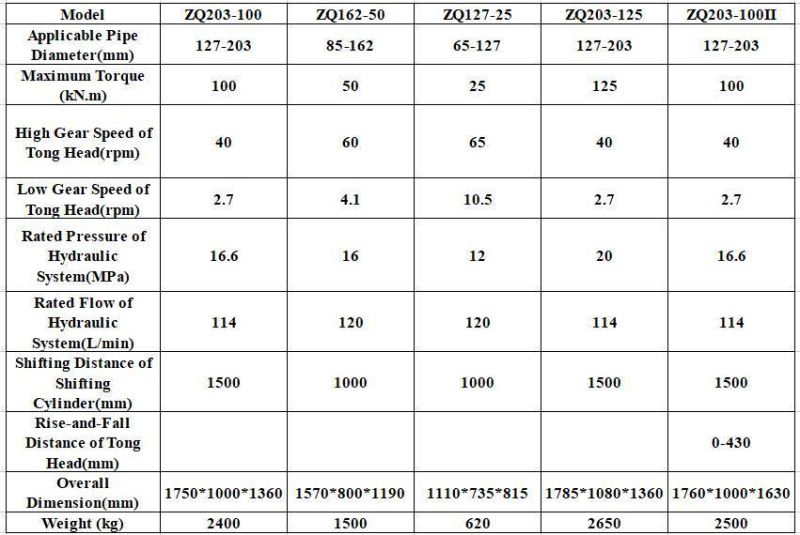

Base Info
- Model NO.：ZQ series
- Rated Pressure of Hydraulic System(MPa)：16.6
- Rated Flow of Hydraulic System(L/Min)：114
- Shifting Distance of Shifting Cylinder(M：1500
- Overall Dimension(mm)：1750*1000*1360
- Weight (Kg)：2400
- Transport Package：Export Package
- Specification：2500kg
- Trademark：BEYOND
- Origin：China
- HS Code：8413810090
- Production Capacity：100sets,Month
Description
Basic Info.
Model NO. ZQ series Rated Pressure of Hydraulic System(MPa) 16.6 Rated Flow of Hydraulic System(L/Min) 114 Shifting Distance of Shifting Cylinder(M 1500 Overall Dimension(mm) 1750*1000*1360 Weight (Kg) 2400 Transport Package Export Package Specification 2500kg Trademark BEYOND Origin China HS Code 8413810090 Production Capacity 100sets/MonthProduct Description

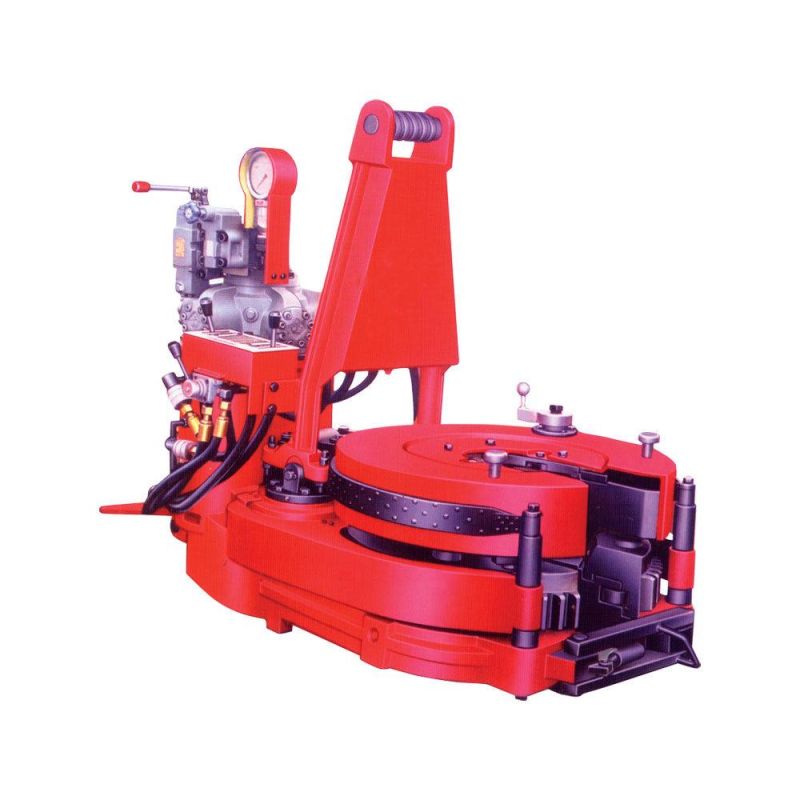

ZQ drill pipe power tong is an ideal well head tool for oil drilling apparatus, widely applied in making-up and breaking-out in drilling well and repairing well on offshore and land, open head design of the ZQ-series allows to take the long away from drilling pipe freely and high mobility, the tong is a combination of spinning tong and torque tong instead of cathead, manual tong and spinning rope for making-up and breaking-out.The Tongs are designed and manufactured according to SY/T5074 standard and API Spec 7K"Specification for Drilling and Well Servicing Equipment".
