Petroleum Equipment & Machinery

Home > Product > Petroleum Machinery Parts

Metal-Face Sealed Bearing 12 1/4′′ Tricone Drill Bit with IADC537

Dongying Oilman Machinery Equipment Co., Ltd.
  • After-sales Service：Online Technical Support
  • Warranty：One Year
  • Manufacturing Process：Forging
  • Surface Treatment：Painting
  • Operation Pressure：Atmospheric Pressure
  • Material：Alloy Steel

Base Info

  • Model NO.：Tricone drill bit
  • Product Name：Metal-Face Sealed Bearing 12 1,4′′ Tricone Bit
  • Certification：API 7-1
  • Size：3 7,8" to 26"
  • Sealed Type：Metal Sealed or Rubber Sealed
  • Application：Oil & Gas, Mining, Water Well
  • Transport Package：Export Packing
  • Specification：Tricone drill bit
  • Trademark：OilMan
  • Origin：China
  • HS Code：84314310
  • Production Capacity：1000 Pieces Per Month

Description

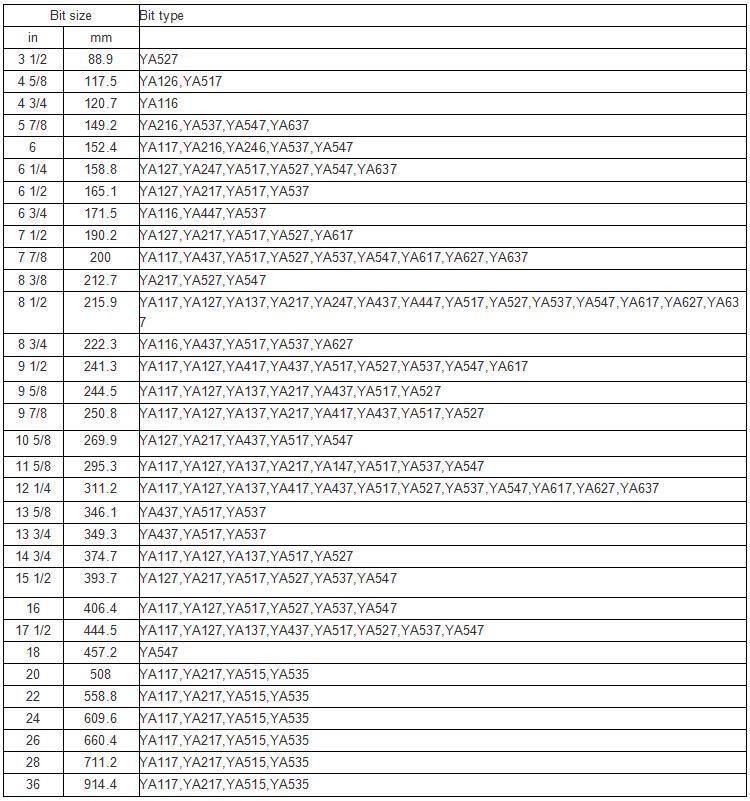

Bit size

Bit type

in

mm



7 7/8

200

IADC437, IADC447,IADC517,IADC537

8 1/2

215.9

IADC417,IADC437,IADC447,IADC517,IADC527,IADC537,IADC547

8 3/4

222.3

IADC437, IADC447,IADC517,IADC527

9 1/2

241.3

IADC437, IADC447,IADC517,IADC537,IADC547

9 7/8

250.8

IADC437,IADC517

10 1/2

266.7

IADC517,IADC537,IADC547

10 5/8

269.9

IADC517,IADC537,IADC547

12

304.8

IADC517,IADC537,IADC547

12 1/4

311.25

IADC417,IADC437,IADC447,IADC517,IADC537

13 1/2

342.9

IADC517,IADC537,IADC547

14 3/4

374.7

IADC517,IADC537,IADC547

17 1/2

444.5

IADC517,IADC527

18 7/8

479.4

IADC517,IADC537


Metal-Face Sealed Bearing 12 1/4′′ Tricone Drill Bit with IADC537

1,The teeth bearing surface hardfacing of hard alloy layer,the roller bearing is made of alloy after welding to improve the carrying capacity and anti bite ability.
2,The 0 - ring sealing ring of the bearing adopts high - saturation nitrile rubber with high wear resistance and high temperature resistance. The sealing ring section is enlarged to reduce the sealing pressure, and the outer end lug is sealed to improve the sealing reliability.
3,Steel tooth bit welding new wear-resistant materials, while maintaining high drilling speed of steel teeth while improving the life of the cutting teeth.
4,The drill bit is made of high strength and high toughness carbide teeth,give full play to the high wear resistance and excellent cutting ability of the tooth cutter with optimized designe of the number of rows of teeth, the number of teeth, the height of the teeth and the unique shape of the alloy teeth.



Bit type:
Metal-Face Sealed Bearing 12 1/4′′ Tricone Drill Bit with IADC537

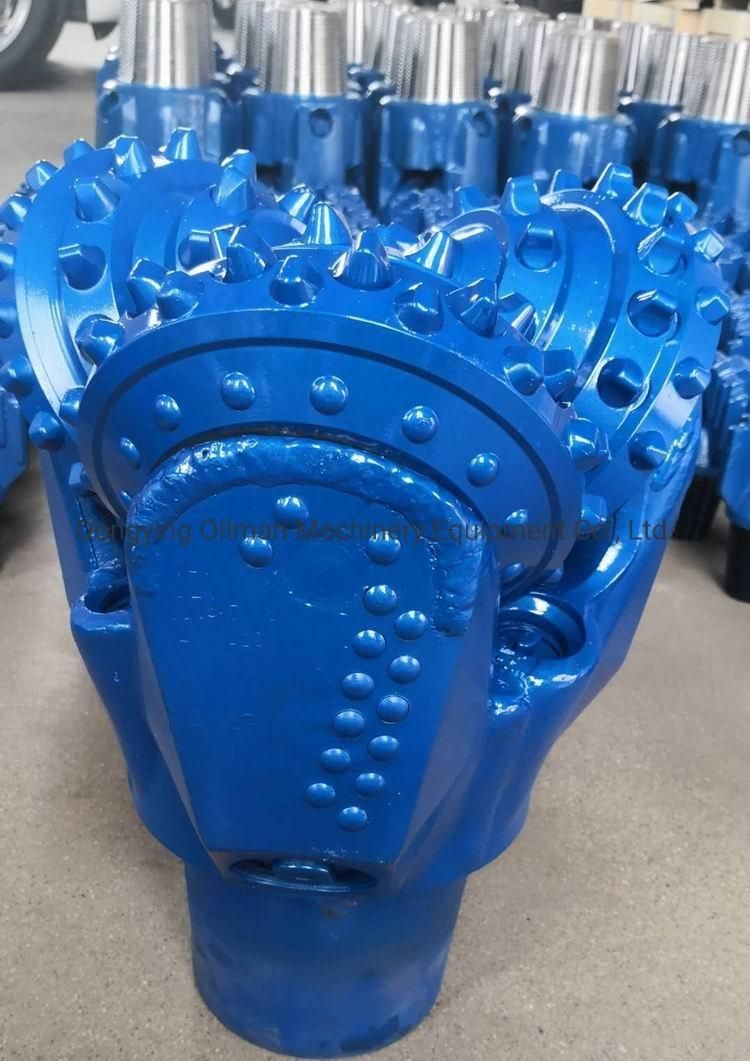

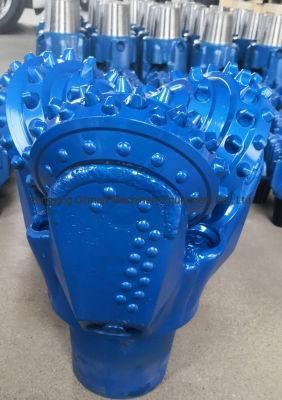

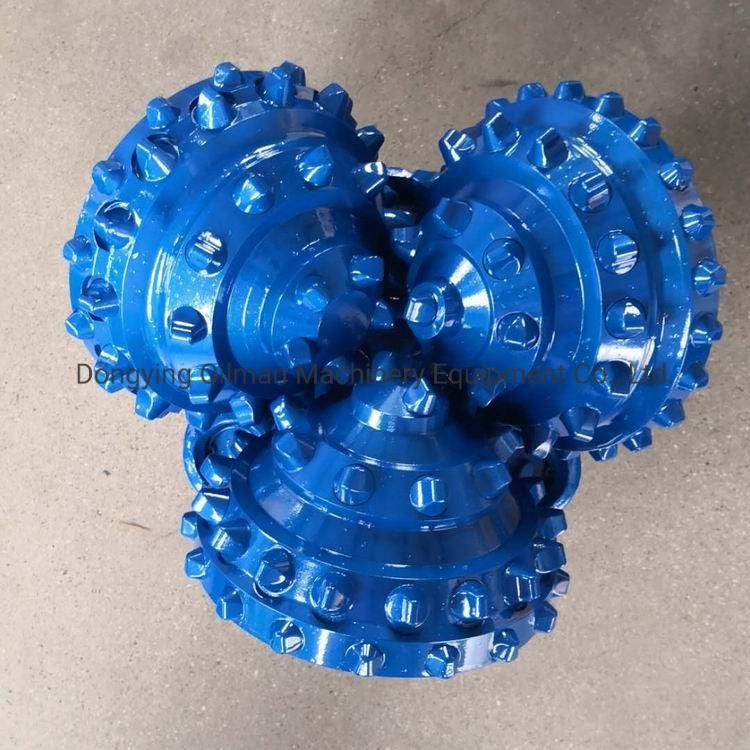

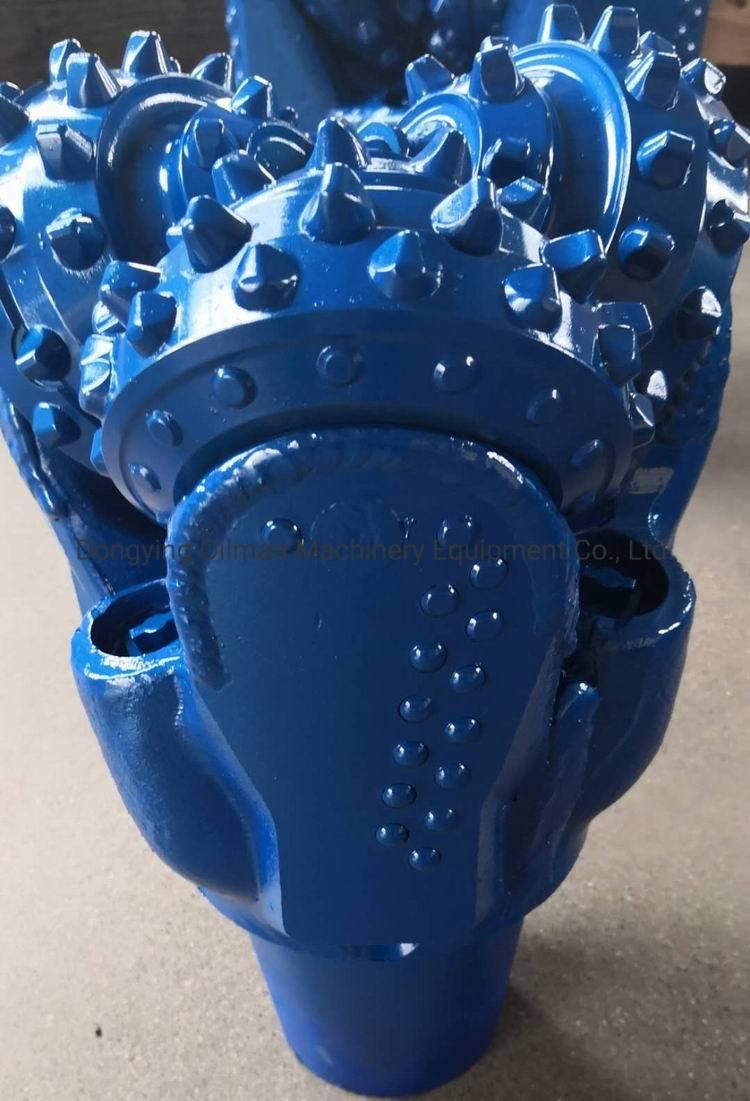

Tricone Bits Pictures:

Metal-Face Sealed Bearing 12 1/4′′ Tricone Drill Bit with IADC537Metal-Face Sealed Bearing 12 1/4′′ Tricone Drill Bit with IADC537Metal-Face Sealed Bearing 12 1/4′′ Tricone Drill Bit with IADC537Metal-Face Sealed Bearing 12 1/4′′ Tricone Drill Bit with IADC537

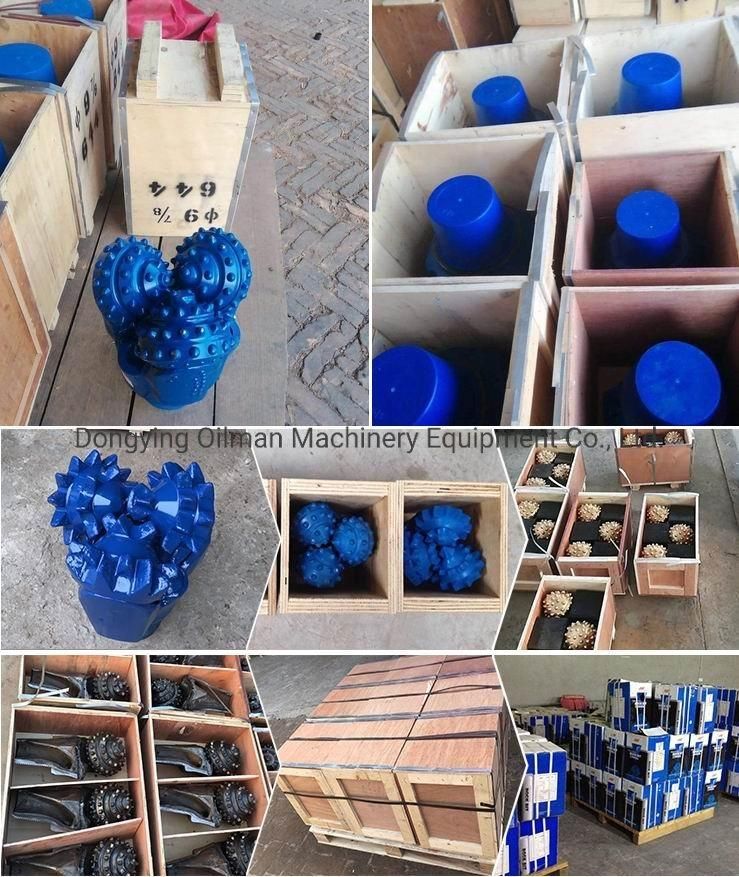

Packing & Delivery of Tricone Bits:

Metal-Face Sealed Bearing 12 1/4′′ Tricone Drill Bit with IADC537

Related Products:
Metal-Face Sealed Bearing 12 1/4′′ Tricone Drill Bit with IADC537
About us

Dongying OilMan Machinery Equipment Co.,Ltd is a professional supplier of various petroleum equipment, including drilling rig and accessories, well control system, solid control equipment, drill string, handling tools, downhole tools, OCTG, drilling tools, cementing tools and sapre parts with API certification. Our products have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, first-class service and reasonable prices.



Certificates

API-5CT, API-10D, API-7K, API-11E, API-6A, API-11AX, API-5D, ISO 9001, ISO14001, ISO18001 etc.
