• Design Temperature：-46-200ºC
• Design Standard：API6ddin,GB,Ghost
• Transport Package：Wood Box by Sea
• Specification：ALL
• Trademark：XINHUAFA
• Origin：China Mainland
• HS Code：8413910000
• Production Capacity：50000 Sets,Per Year

Basic Info.

Design Temperature -46-200ºC Design Standard API6ddin/GB/Ghost Transport Package Wood Box by Sea Specification ALL Trademark XINHUAFA Origin China Mainland HS Code 8413910000 Production Capacity 50000 Sets/Per Year

Product Description

Contact


Company	Hebel Xinhuafa Petroleum Machinery Co. LTD
Address	Chang'an District,Shijiazhuang,Hebei,China
Contacts	Anne Yang
Mobile	+8617831121697

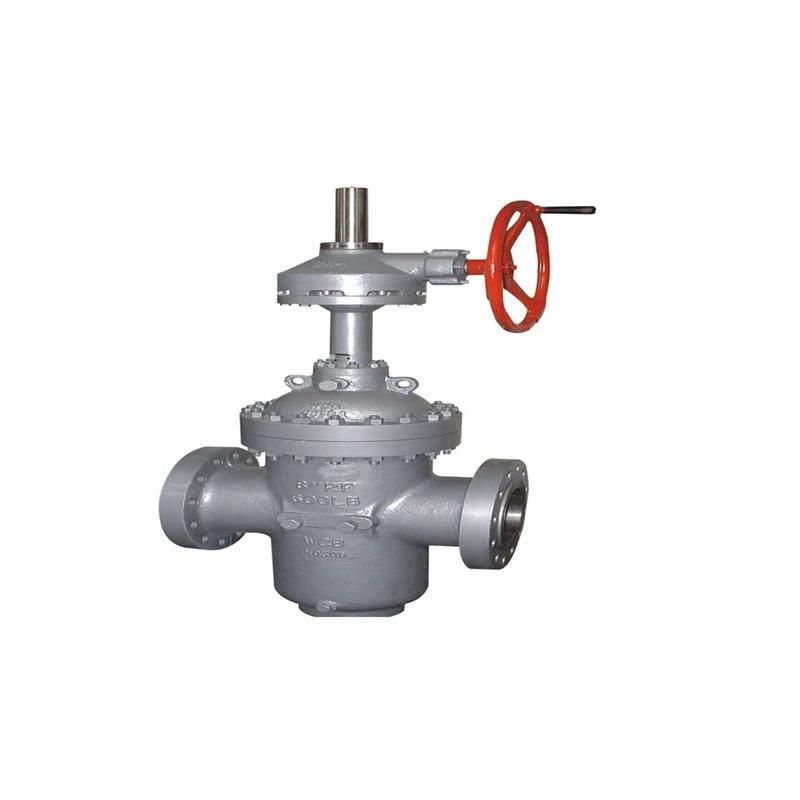

Slab gate valve

Slab gate valve (Through conduit gate valve) has been designed as per API6D standard, including soft sealing slab gate valve, metal to metal sealing slab gate valve and expanding slab gate valve. Slab gate valves are mainly used for oil& gas, water pipelines, the design has two floating seats,grease injection system and double block & bleed system.
Tchnical Features :

Service	Oil, Natural gas, Water and Chemical Transmission Pipeline application
Design Body	Bolted bonnet/ Pressure sealing bonnet
Bore	Full bore
Disc design	Single disc/Double disc
Disc type	Non hole/Adjustive disc/Through conduit disc
DBB	Yes
Size	1 1/2"-64"
Pressure	150Lb-2500Lb
Design temperature	-46-200ºC
Main materials	CS/SS/Duplex stainless steel/Bronze/Inconel/Titanium alloy steel
Seat sealing type	PTFE/RPTFE/NYLON/DEVLON/PPR/PEEK/Stellite/Tugsen Carbride
Operation	Manual, Electric, Pneumatic, Gas over oil, Electro-hydraulic actuator.(Rotork, Biffi, DVG, ect.)
Design Standard	API6DDIN/GB/GHOST
Face to face	ASME B16.10/ Ghost/DIN
Ends	RF/RTJ to ASME B16.5/ASME B16.47, BW to ASME B16.25
Pressure and Temperature Design	ASME B16.34
Test standard	API6D/API598, ISO5208
Fire safe	APIF6A
Others	Seat grease injiection system, Stem grease injection, NACE MR0175/ISO15156(if applicable)
