• Model NO.：BBES584
• Type：High Frequency
• Transport Package：Pallet or Wooden Case
• Specification：2998*1856*1515,118*73*60
• Trademark：BOBAN & OEM
• Origin：China
• HS Code：84741000
• Production Capacity：15sets Per Month

Basic Info.

Model NO. BBES584 Type High Frequency Transport Package Pallet or Wooden Case Specification 2998*1856*1515/118*73*60 Trademark BOBAN & OEM Origin China HS Code 84741000 Production Capacity 15sets Per Month

Product Description

Features
High-capacity operating mode for increased capacity and conveyance rate.
Deck-adjustment system capable of adjustment while processing fluid.
State-of-the art motion generators are oilfield proven and require minmal maintance.
Modular platform to accommodate a variety of features.
Progressive and balanced modes of elliptical motion.

Advantages
Extends screen life
Requires less rig space
Pre-tensioned composite screens for fast screen changes and overall ease of use.
Balanced basket functions flawlessly in either linear or balanced elliptical mode, with dry, light loads or wet, heavy loads.

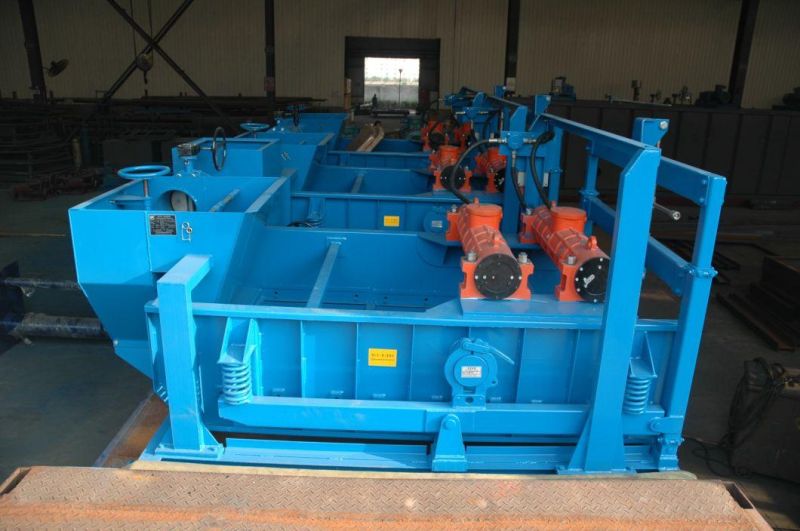

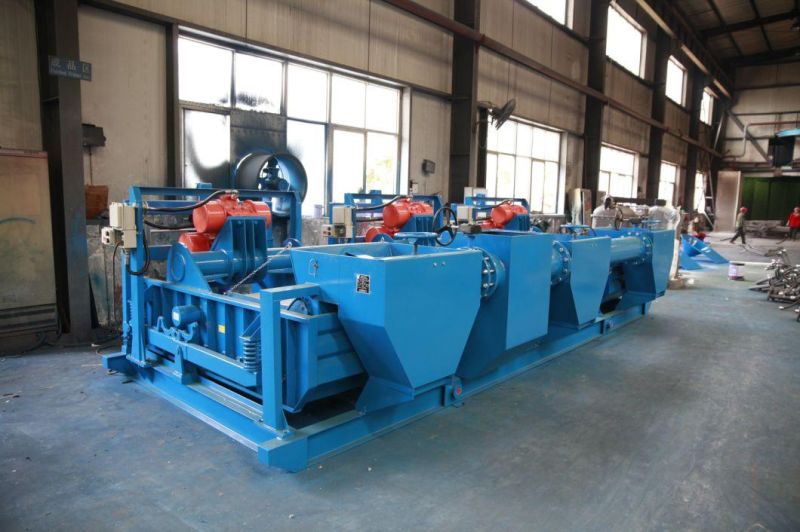

Product Photos





Parameters

	ES584
Vibration Motor	Balanced Elliptical Motion
Vibration Motor(kW)/(hp)	2*1.86kw(2*2.5hp)(Martin)
Vibration Strength(G-Force)	6.3(5~6.3)
Screen Surface Area(Square meter)/(ft2)	2.7/29
AWD ( °)	-1~+5
Capacity(m3/h)/(GPM)	136~170 /600~750
Screen Type	Frame/Pre-tensioned
Screen Dimension(mm)/(in)	585*1165 / 23*46
Screen QTY	4
Weir Height(mm)/(in)	780/30
Machine Dimension: (mm)	2998*1856*1500/118*73*59
Weight(kg)/(lbs)	1917/4227
