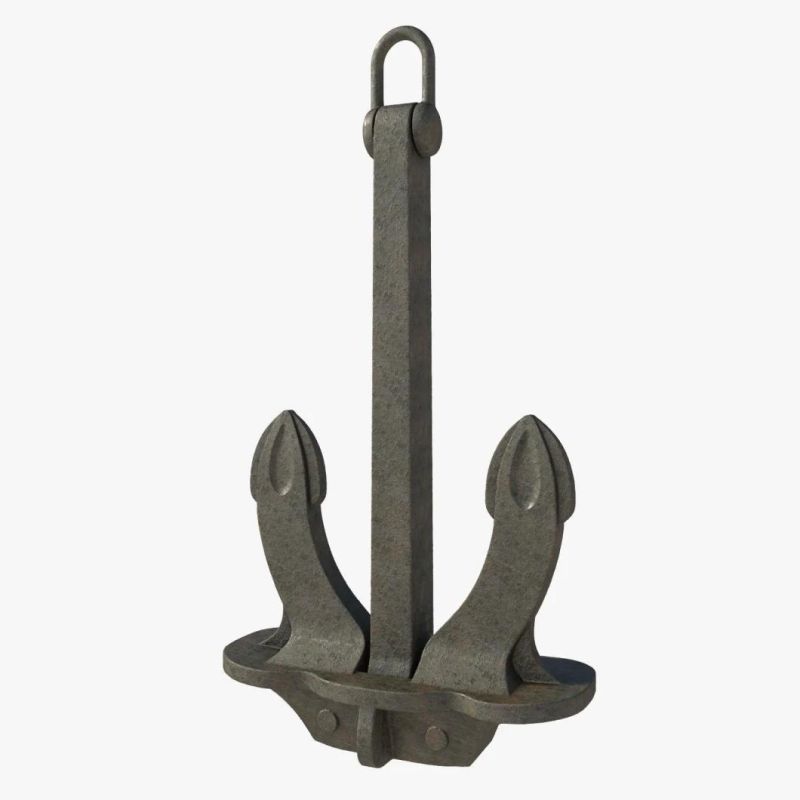

Hall Anchor GB/T 546-2016 for Boat
Shandong Seaco Machinery Equipment Co., Ltd.- After-sales Service：Online
- Warranty：12 Month
- Certification：ISO 9001:2000, ISO 9001:2008
- Power Source：Manual
- Operation Pressure：40-1290kg
- Applicable Medium：Water
Base Info
- Model NO.：HA-40
- Structure：Vertical
- Material：Cast Steel
- Name：Hall Type Anchor GB,T 546-2016 for Boat;
- Packing：Boxes
- Transport Package：Wooden Box
- Specification：40kg, 60kg, 100kg---1290kg
- Trademark：SEACO
- Origin：Shandong China
- HS Code：7316000000
- Production Capacity：100000 Per Year
Description
Overview

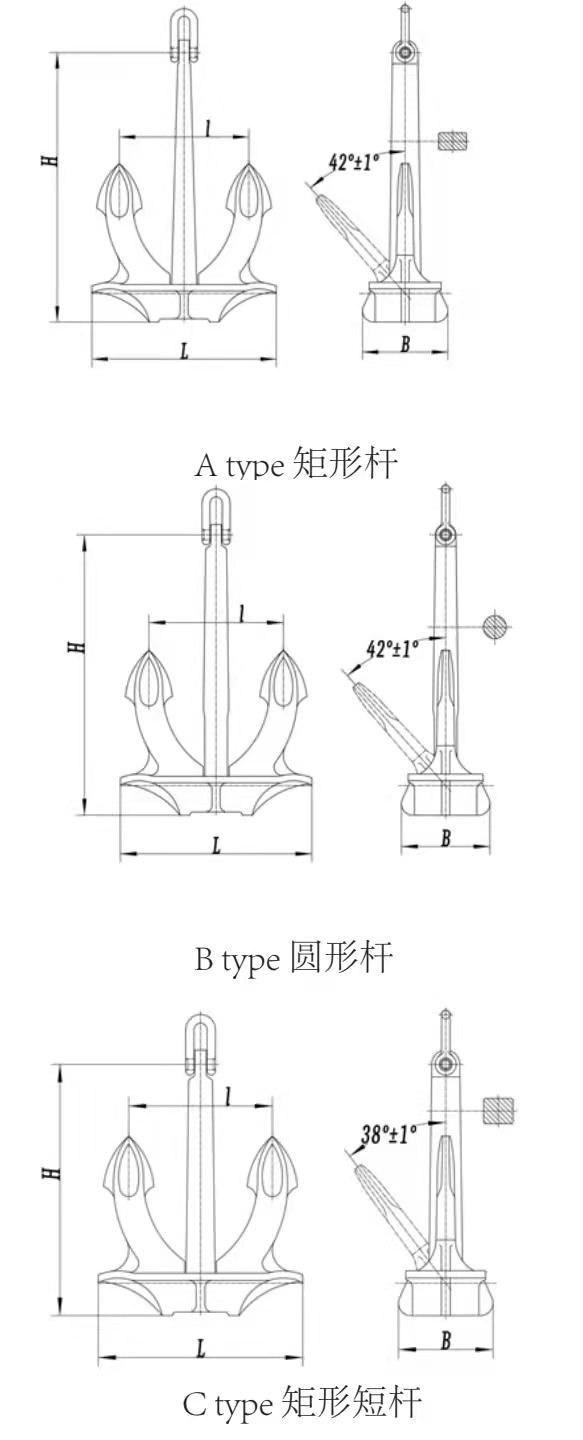

Part No. Weight H(mm) B(mm) L(mm) I(mm) A B C HA-40 40 624 624 497 198 430 303 HA-60 60 713 713 568 227 429 347 HA-100 100 850 850 680 270 584 410 HA-125 125 911 911 726 443 629 443 HA-150 150 969 969 768 308 670 470 HA-180 180 1029 1029 820 327 710 500 HA-240 240 1140 1140 909 361 784 552 HA-300 300 1225 1225 980 388 844 595 HA-360 360 1298 1298 1036 412 898 630 HA-420 420 1367 1367 1091 434 946 660 HA-480 480 1434 1434 1138 454 988 690 HA-570 570 1517 1517 1203 481 1042 732 HA-660 660 1591 1591 1262 506 1096 769 HA-780 780 1684 1684 1337 535 1160 813 HA-900 900 1768 1768 1403 560 1220 855 HA-1020 1020 1840 1840 1463 584 1268 891 HA-1140 1140 1908 1908 1519 605 1319 926 HA-1290 1290 1989 1989 1589 630 1374 965
Hall Type Anchor GB/T 546-2016 for boat
