• Model NO.：BW-200
• Power Source：Hydraulic
• Operation Pressure：Atmospheric Pressure
• Applicable Medium：Mud
• Structure：Horizontal
• Material：Cast Steel
• Stroke(mm)：85
• Pressure(MPa)：4,6
• Cylinder Diamete(mm)：80,65
• Flow(L/Min)：200,125
• Outlet Pipe Diameter(mm)：51
• Inter Pipe Diameter(mm)：76
• Power(Kw)：15
• Shape Size(mm)：1050*630*820
• Transport Package：Export Packing
• Specification：300kg
• Trademark：BEYOND
• Origin：China
• HS Code：8413810090
• Production Capacity：100sets,Month
• Package size per unit product：110.00cm * 70.00cm * 90.00cm
• Gross weight per unit product：350.000kg

Basic Info.

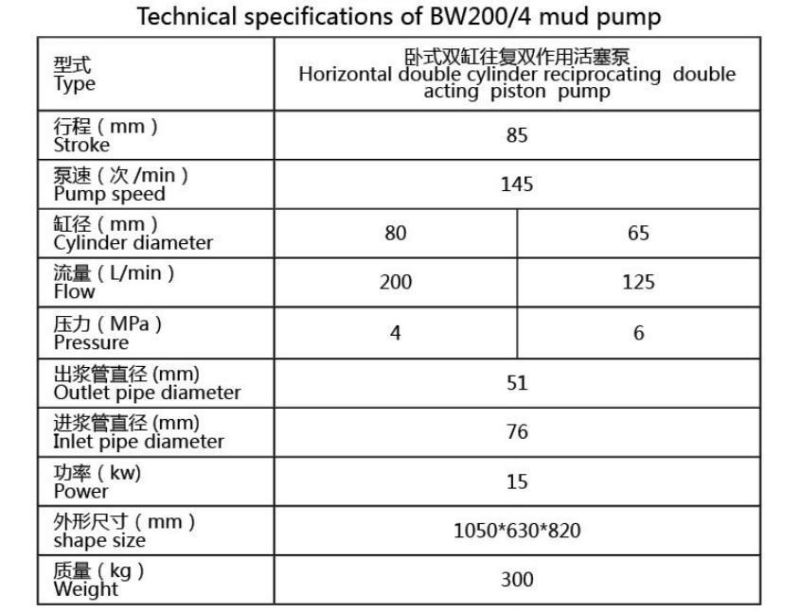

Model NO. BW-200 Power Source Hydraulic Operation Pressure Atmospheric Pressure Applicable Medium Mud Structure Horizontal Material Cast Steel Stroke(mm) 85 Pressure(MPa) 4/6 Cylinder Diamete(mm) 80/65 Flow(L/Min) 200/125 Outlet Pipe Diameter(mm) 51 Inter Pipe Diameter(mm) 76 Power(Kw) 15 Shape Size(mm) 1050*630*820 Transport Package Export Packing Specification 300kg Trademark BEYOND Origin China HS Code 8413810090 Production Capacity 100sets/Month

Packaging & Delivery

Package size per unit product 110.00cm * 70.00cm * 90.00cm Gross weight per unit product 350.000kg

Product Description

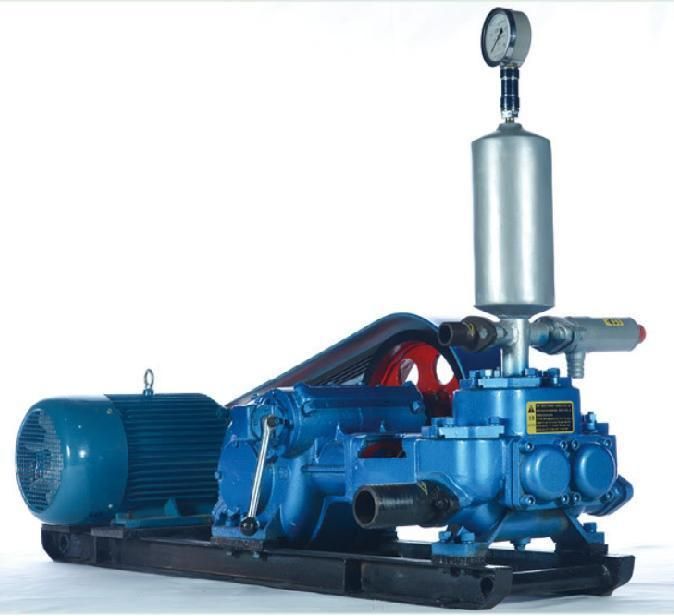

BW series mud pump is a horizontal reciprocating piston pump, which is mainly used to transport mud, suitable for the needs of geology, groundwater, geothermal and shallow oil drilling. It can also be used for mine sewage and long-distance water delivery. The pump consumes less energy, flexible to operate, high quality and durability, good decomposition, and easy to relocate.
