• Model NO.：5-1,2" cup packer
• Transport Package：Wooden Case
• Specification：3-1,2"
• Trademark：ZX
• Origin：China
• HS Code：8481431000
• Production Capacity：100 PCS Cup Packer Per Month

Basic Info.

Model NO. 5-1/2" cup packer Transport Package Wooden Case Specification 3-1/2" Trademark ZX Origin China HS Code 8481431000 Production Capacity 100 PCS Cup Packer Per Month

Product Description

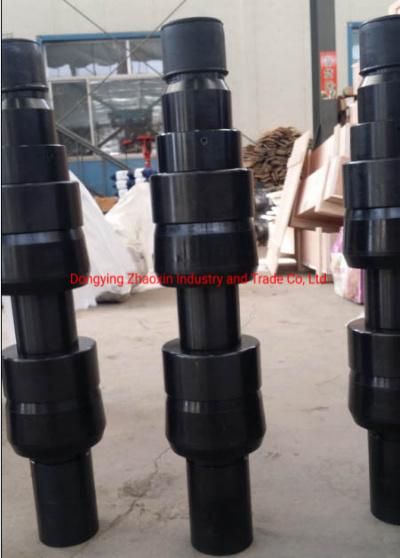

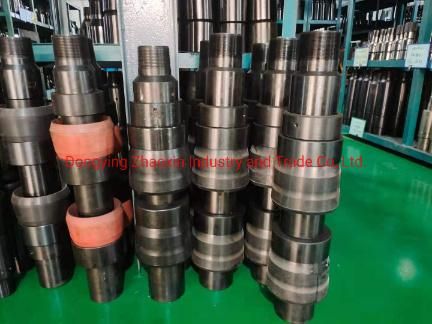

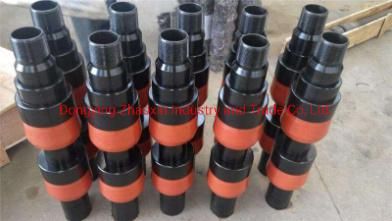

CUP PACKER

Cup packer is a kind of self-sealing packer , which relies mainly on the interference contact between cup and casing to make annular space between tubing and casing

Since the cup packer itself has no slip , so it has a good safety and high reliability.Moreover ,there is no damage to the casing pipe

Features:
1.the structure of the cup packer is simple , it is easy tooperate, reliable sealing and no anchoring machanism .It can be used in vertical wells , deflecting wells and horizontal wells.

2.The cup of the product can be fixed at the opposite direction( hold the pressure from two directions) or fixed in the same direction(up or down).cup can be fixed in any direction and it is easy to assemble
3.The cup packer can set without any other equipment. It doesn't need to move tubing string or increase pressure to set ,Putting downward together with the string can seal the tubing and casing to make annular space . It can save operation time and cost


Technical Data


type	Max OD(mm)	Length(mm)	Min ID(mm)	Working pressure	connection	Suitable size
Z33-115	116	666	62	≤35	EUE/NUE	5-1/2"
Z33-143	143	706	62/76	≤35	EUE/NUE	6-5/8"
Z33-150	150	706	62/76	≤35	EUE/NUE	7"
