Downhole Motor Pdm Drill Mud Motor 2 7/8~14 3/4" with 5 Bending Degree
Shandong Seaco Machinery Equipment Co., Ltd.- After-sales Service：on Site
- Warranty：12month
- Manufacturing Process：CNC Milling
- Surface Treatment：Spray-Paint
- Operation Pressure：High Pressure
- Material：High Manganese Steel, Tungsten Carbide
Base Info
- Model NO.：9 7,8~14 3,4"
- Grade：35CrMo AISI 4140 G105
- Name：Downhole Motor Pdm Drill Mud Motor 9 7,8~14 3,4" W
- House Material：AISI4140
- Bearing：Stainless Bearing
- Bending Degree：0-5 Degree
- Weight：80-290kg
- Packing：Woodern Box
- Connection Type：Nc38 Nc50, Bq Bw
- Transport Package：Standard Export Package
- Specification：2 3,8 2 7,8 3 1,2
- Trademark：SEACO
- Origin：Shandon China
- HS Code：84314310
- Production Capacity：100t
Description
Hole Size
Mm
95~121
114~152
118~152
118~152
118~152
149~200
In
Thread Type
Top
Length
(mm)
Straight
Weight
(Kg)
Straight
Type
5LZ165 7.0
5LZ165 7.0
5LZ172 7.0
5LZ197 7.0
5LZ210 7.0
5LZ244 7.0
Hole Size
Mm
213~251
213~251
213~251
251~311
251~375
311~445
In
83/8~97/8
83/8~97/8
83/8~97/8
97/8~121/4
97/8~143/4
121/4~171/4
Thread type
Top
41/2"REG
41/2"REG
41/2"REG
51/2"REG
65/8"REG
65/8"REG
Bottom
41/2"REG
41/2"REG
41/2"REG
65/8"REG
65/8"REG
75/8"REG
Nozzle pressure drop
Mpa
1.4~7
1.4~7
1.4~7
1.4~7
1.4~7
1.4~7
Recommend Flow
L/s
20~28
20~28
25~35
25~57
35~50
50~75
Bit rotary
R/min
90~160
80~150
90~160
86~196
100~160
100~160
Motor pressure drop
Mpa
2.4
3.2
4.0
4.0
4.0
4.0
Working torque
N.m
2750~3960
3860~4980
5860~6970
7800~9350
9980~11900
12870~13970
Lagging torque
N.m
6300
8470
11550
18690
19600
23000
Output power
Kw
31.6~56.2
37~69.4
60.4~107.4
70~160
115~183
140~225
Recommended bit weight
T
8
8
10
16
17
18
Max bit weight
T
16
16
16
24
28
30
Length
(mm)
Straight
5930
6830
7230
8470
8400
9060
Single curve
6180
7080
7480
8720
8660
9320
Weight
(Kg)
Straight
742
820
930
1140
1460
1980
Single curve
772
850
970
1195
1520
2050

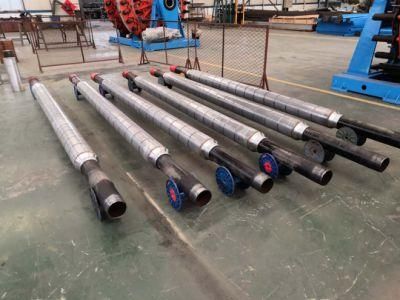

Detailed Photos

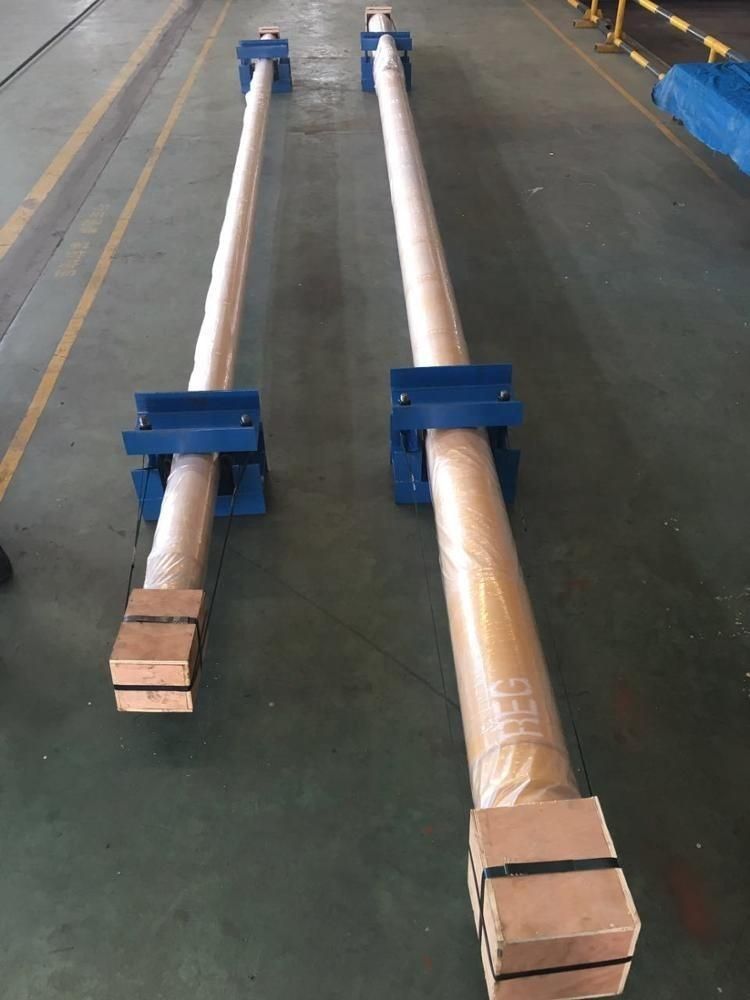

Packing type:
