• Model NO.：RT-CNG312 324
• Accuracy：0.3%
• Flow Rate：30kgs,M
• Communication：RS485
• Meter：Coriolis Mass Flow Meter
• Working Pressure：27 MPa
• Transport Package：Wooden Case
• Specification：1.2cbm
• Trademark：bluesky
• Origin：China
• HS Code：8413110000
• Production Capacity：500

Basic Info.

Model NO. RT-CNG312 324 Accuracy 0.3% Flow Rate 30kgs/M Communication RS485 Meter Coriolis Mass Flow Meter Working Pressure 27 MPa Transport Package Wooden Case Specification 1.2cbm Trademark bluesky Origin China HS Code 8413110000 Production Capacity 500

Product Description

Products and description

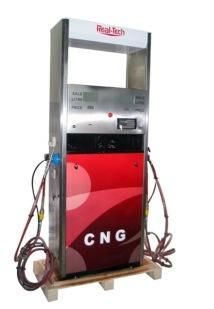

CNG dispenser RT-CNG312 9(single nozzle)
3Pipeline/2Massflowmeter/1nozzle/1keypad/2display
Power:AC 220V 50Hz
3xPiplelines with high,middle,low pressure,
1xCNG filter,
2xMass flowmeter(Bluesky type ) (CG-25),
6xCheck valve,
2x Breakaway valve,
3x Safety valve,
1x NGV type nozzle with high pressure hose,
1x Electronic controller with RS485,(explosion-proof),
1xPressure gauge(range:0-40Mpa),
1xMetal keypad,2 x Display,
Stainless steel body,ground protection,
Package:Standard export carton,
Dimension(mm):LxWxH 1000x600x2200mm,



                                                                                                                                                                                  CNG dispenser RT-CNG324 (double nozzle)
3Pipeline/4Massflowmeter/2nozzle/2keypad/4display
Power:AC 220V 50Hz,
3xPiplelines with high,middle,low pressure,
2xCNG filter,
4xMass flowmeter(Bluesky type ) (CG-25),
6xCheck valve,
2x Breakaway valve,
1x Safety valve,
1x NGV type nozzle with high pressure hose,
1x Electronic controller with RS485,(explosion-proof),
2xPressure gauge(range:0-40Mpa),
2xMetal keypad,4 x Display,
Stainless steel body,ground protection,
Package:Standard export carton,
Dimension(mm):LxWxH1060*570*2260mm,
