F-1000 Mud Pump Customized High Quality Diaphragm Mud Pump/Mud Pump for Drilling/Drilling Mud PumpZhengzhou Hanfa Imp & Exp Trading Co., Ltd.
- Certification：CE, ISO 9001:2000
- Power Source：Electric
- Operation Pressure：Atmospheric Pressure
- Type：Drilling Fluid Shale Shaker
- Transport Package：Standard Export Packing or as You Needs
- Model NO.：F Series
- Production Capacity：20sets Per Month
Basic Info.Model NO. F Series Specification 4617*3260*2600mm Trademark HF Origin China Production Capacity 20sets Per Month
Product DescriptionProduct Description

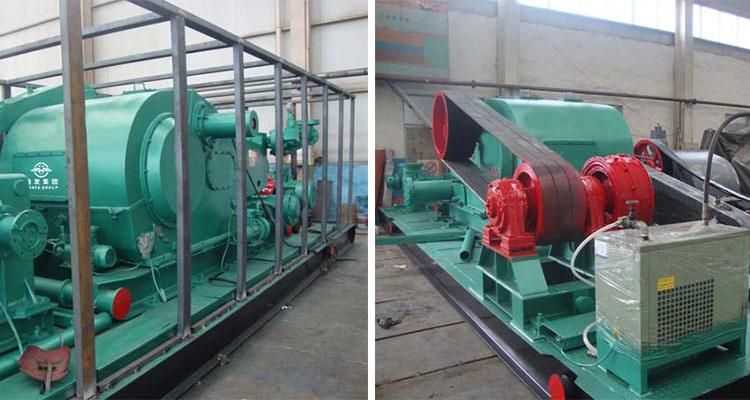

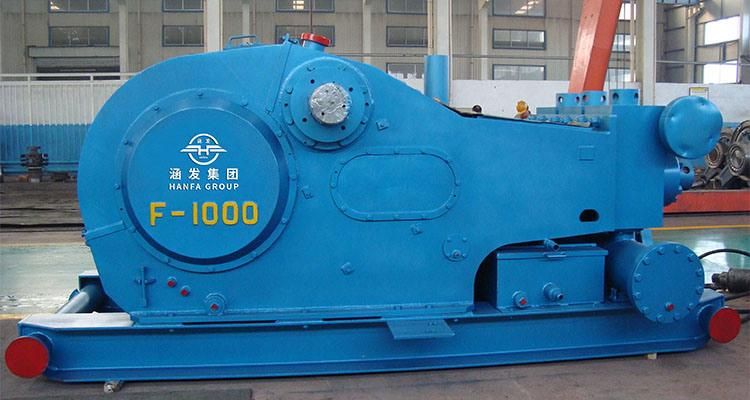

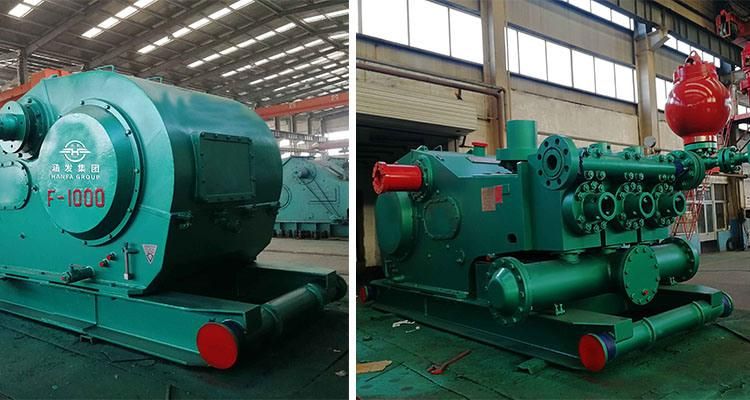

F-series mud structure strong, compact, small size, use the performance good, adapt to the oil field high pump pressure, large displacement and drilling technological requirements. F series wet slurry pump has a long stroke and can be used at a low stroke to effectively improve the water-feeding performance of the mud pump, extend the life of vulnerable parts at the hydraulic end, and achieve the best buffering effect in the suction line. F series pump power end adopts forced lubrication and splash lubrication, reliable lubrication, increase the power end of the month life. This series of pumps are widely used in oil fields and other industrial and mining enterprises, drilling, workover and other operations. The f-1000 is mainly adapted to 20-32 drilling RIGS. This series pumps are in strict accordance with APISPEC7K& LT;& lt;Specification for drilling rig and workover equipment & GT;& gt;Production, and in accordance with the standard for factory testing.
|Rated Input Power (hp/KW)||500 /373||800 /597||1000 /746||1300 /969|
|Rated Pump Speed (SPM)||165||150||140||120|
|Stroke Length (in /mm)||7.5" /190.5||9"/228.6||10"/254||12"/305|
|Inlet Dia. (in/mm)||8"/203||10"/254||12"/305||12"/305|
|Outlet Dia. (in)||4" Flange|
|Max. Liner (in/mm)||6-3/4"/170||6-3/4"/170||6-3/4"/170||7"/180|
|Overall Dimension L*W*H (mm)||3658*2709*2231||3963*3025*2410||4267*3167*2580||4617*3260*2600|
|Approx. Weight (kg)||9770||14500||18790||24572|
Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research,manufacture and market. Now, the Group pursues high standard manufacturing and qualified products. It has more than 20 species such as water well drilling rig, core drilling rig, engineering drilling rig, DTH drilling rig, horizontaldirectional drilling rig, etc. These machines are mainly used in geological prospecting, exploration of railway and highway engineering, mining, SPT, water well, geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000 and are national inspection-free products.
1. More than 30 years of experience

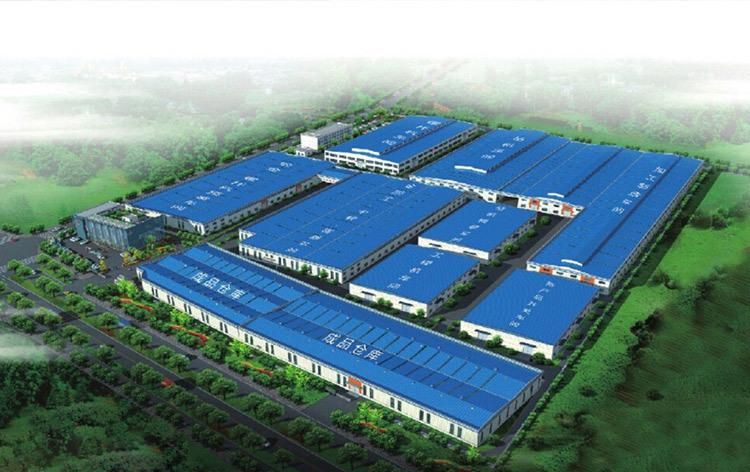

The factory is located in Henan Province, China. We are very welcome to visit our factory. If
you need it, we will arrange a pick-up.
2.Top production team
The transportation and packaging will be packaged in international standards. If you have special packaging requirements, we will give you the most suitable solution.
- New machine provides technical trair.
- Once anything goes wrong with the machine by normal using, our technical person must appear at the first time no matter where you are.
- When the machine should be maintained, you will receive the reminding from us.
- According to different geological conditions, we will recommend different construction plans for you
- Remind you which are wearing parts, so you can prepare enough.
- 24 hours respond to your quality problem.
1,Are you trading company or manufacturer?
We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.
2,Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
3,How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4,Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.
5,What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.
6,How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
