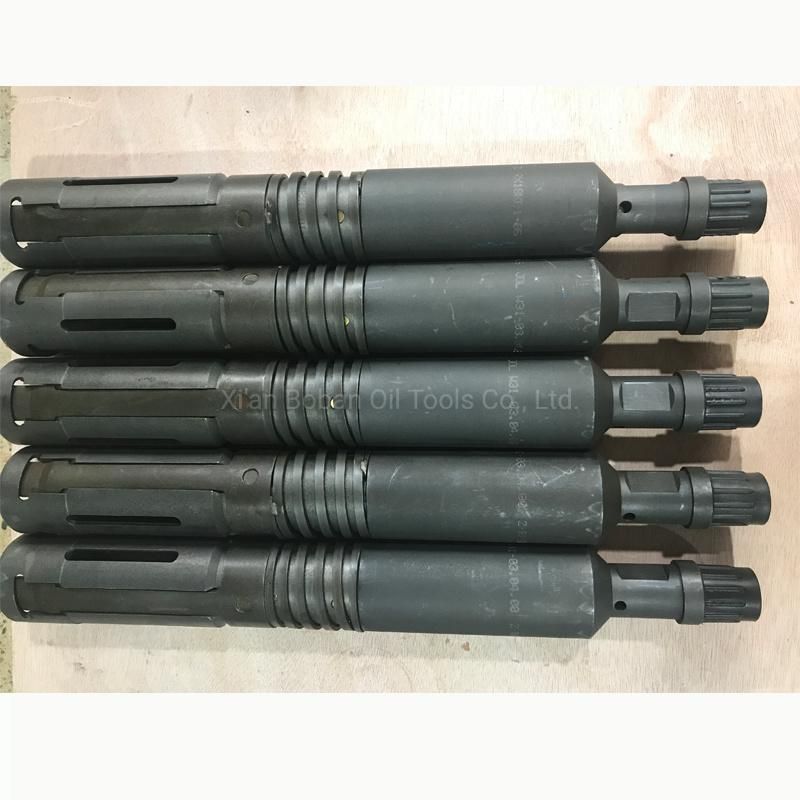

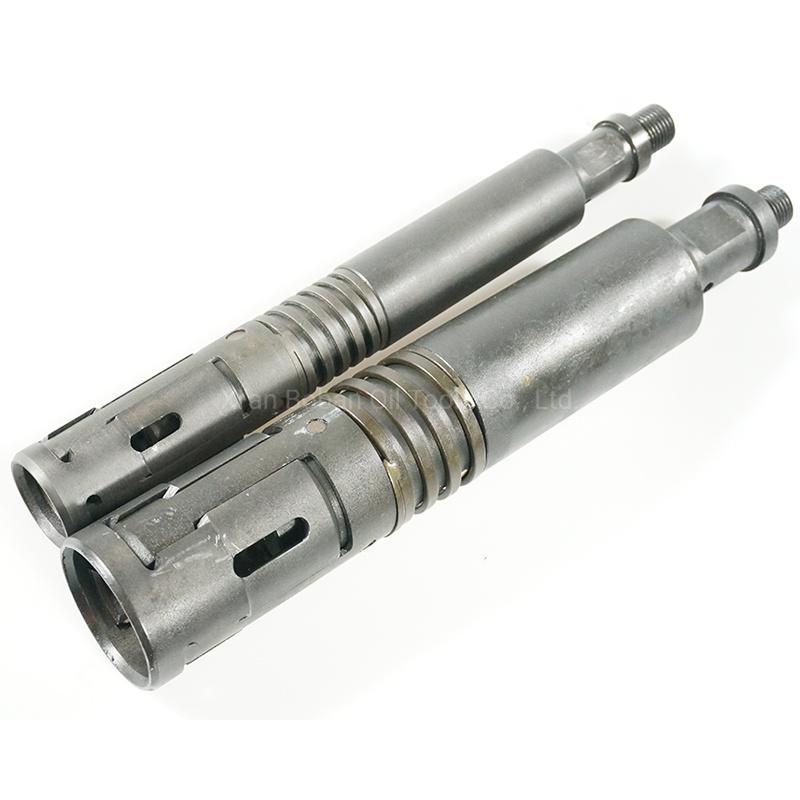

Oilfield Downhole Tools Slickline Wireline Jd Pulling Tools
Xi'an Boban Oil Tools Co., Ltd.- After-sales Service:24,7
- Warranty:12 Months
- Manufacturing Process:CNC Milling
- Surface Treatment:Phosphating
- Operation Pressure:N,a
- Material:Cast Steel
Base Info
- Model NO.:Boban
- for Wire Size:0.108", 0.125"
- Connection:Un,Qls,Hdqrj
- Size:1.25"~4"
- Transport Package:Wooden Case
- Specification:1.25"~2.5"
- Trademark:BOBAN & OEM
- Origin:China
- HS Code:8431431000
- Production Capacity:30 PCS Per Month
Description
III. General Technical Parameters
Size | Actual O.D. | Fishing Neck | Connection | To Engage Size |
1.25 " | 1.291 " | 1.187 " | 15/ 16UN | 0.875 " |
1.5 " | 1.422 " | 1.187 " | 15/ 16UN | 1.187 " |
2 " | 1.86 " | 1.375 " | 15/ 16UN | 1.375 " |
2.5 " | 2.25 " | 1.375 " | 15/ 16UN | 1.75 " |
3 " | 2.796 " | 1.75 " | 15/ 16UN | 2.313 " |
4 " | 3.75 " | 2.313 " | 1-1/ 16UN | 3.125 " |
Note. Other sizes are available upon request.
