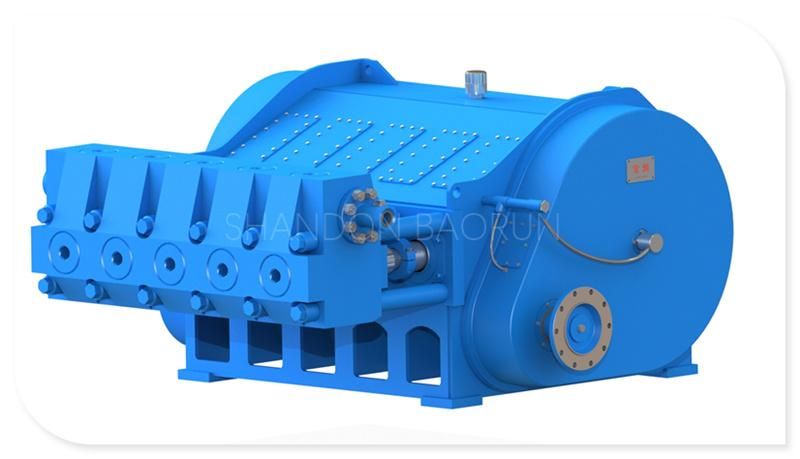

Br2800q Quintuplex Oplunger Pump for Oilfield Fracturing Application

Shandong Baorun Precision Machinery Manufacturing Co., Ltd.
  • Manufacturing Process：Forging
  • Surface Treatment：Spray-Paint
  • Operation Pressure：Atmospheric Pressure
  • Material：Alloy
  • Rated Brake Horsepower：2,800HP (2088kw)
  • Maximum Rod Load：229,305 Lbf (1020kn)

Base Info

  • Model NO.：BR2800Q
  • Stroke Length：8"(203.2mm)
  • Gear Ratio：6.333:1
  • Overhall Dimensions：91.42X91.14X47.24in (2,320 X 2,315 X 1,200 mm)
  • Weight：20,945lbs(9,500kg)
  • Application：Fracturing
  • OEM：Accept
  • MOQ：1set
  • Delivery：2-3months Aganist Contract
  • Transport Package：Seaworthy Packing
  • Specification：BR2800Q
  • Trademark：Baorun
  • Origin：China
  • HS Code：841350
  • Production Capacity：100 Sets Per Year

Description

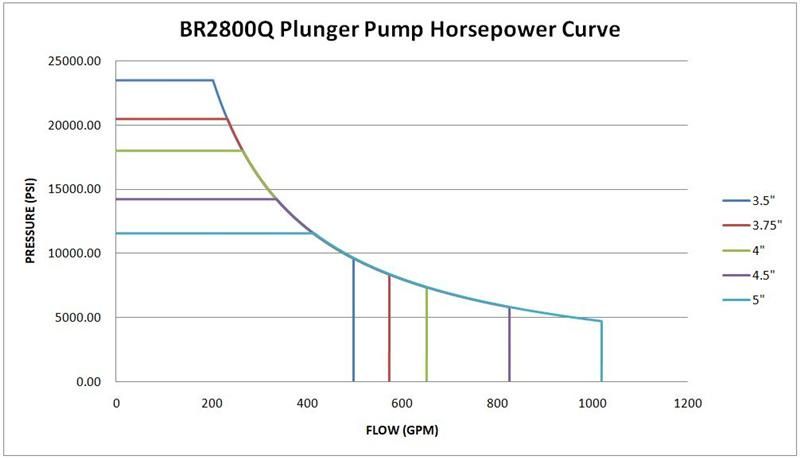

2090Based on 90% ME and 100% VE - Intermittent service only.
Br2800q Quintuplex Oplunger Pump for Oilfield Fracturing Application
Br2800q Quintuplex Oplunger Pump for Oilfield Fracturing Application
Br2800q Quintuplex Oplunger Pump for Oilfield Fracturing ApplicationBr2800q Quintuplex Oplunger Pump for Oilfield Fracturing Application1.Excellent design ability (R&D)10 years experiences in design, production and field application;Two large national labs (materials, transmission) as our backup force;8 skilled senior R&D engineers keep innovating on material, structure and transmission system.2.Strict quality control (QC)Quality control plan, incoming inspection, process inspection, outgoing inspection, quality file and tracing.3.Fast response24 x 7 x365 fast response, providing technical support and feedback to customers.Br2800q Quintuplex Oplunger Pump for Oilfield Fracturing Application
Br2800q Quintuplex Oplunger Pump for Oilfield Fracturing Application

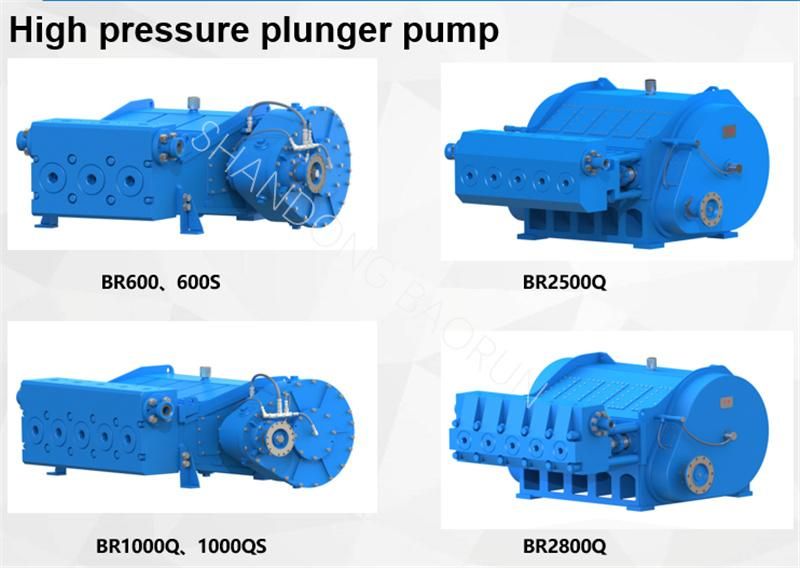

Shandong Baorun Precision Machinery Manufacturing Co.,Ltd is mainly engaged in high pressure pump design and manufacture, including acidizing & cementing & frac pump and parts, hydraulic piston pump, motor, hydraulic multi-way valves as the key components in hydraulic system. Our frac pump horsepower can reach up to 6600HP, which is the most powerful in this oilfield industry now. Spare parts mainly include fluid ends, valve and seat, valve insert, plunger, packing set, junk ring, valve spring and seal. Besides, good interchangeability of spare parts with SPM, GD, FMC and so on can meet customer's unique requirements.

Br2800q Quintuplex Oplunger Pump for Oilfield Fracturing Application
Br2800q Quintuplex Oplunger Pump for Oilfield Fracturing ApplicationBr2800q Quintuplex Oplunger Pump for Oilfield Fracturing Application



Welcome to visit our company at any time!
