• Capacity：80000lts
• Color：White or blue
• Dimension：12192mmx2438mmx2896mm
• Warranty：1 Years
• Wall：Single Wall or Double Wall
• Accessory：Gas Buster
• Level Indicatior：Equip
• Shiping：Soc Container Ship with Csc Certification
• Transport Package：Nude Packing
• Specification：220bbl 500bbl
• Trademark：luqiang
• Origin：China
• Production Capacity：100 Unit Per Month

Basic Info.

Capacity 80000lts Color White or blue Dimension 12192mmx2438mmx2896mm Warranty 1 Years Wall Single Wall or Double Wall Accessory Gas Buster Level Indicatior Equip Shiping Soc Container Ship with Csc Certification Transport Package Nude Packing Specification 220bbl 500bbl Trademark luqiang Origin China Production Capacity 100 Unit Per Month

Product Description

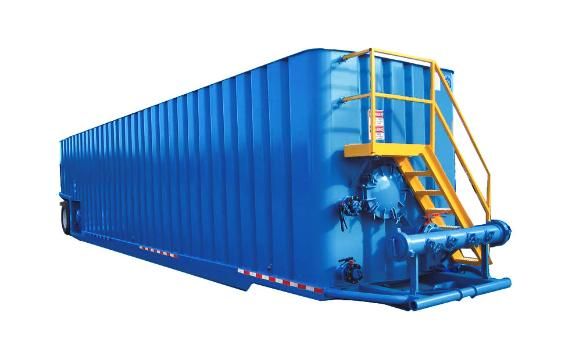

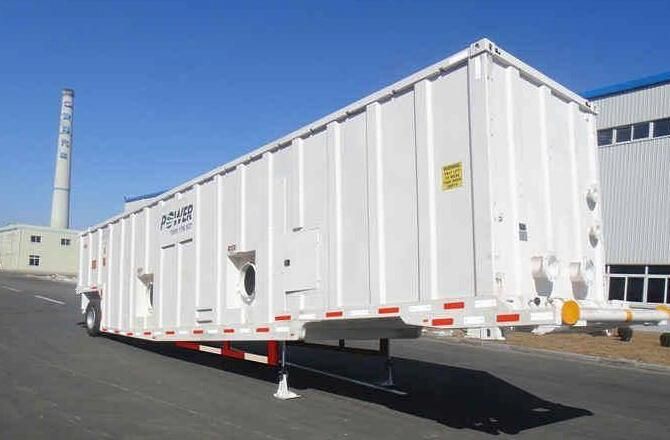

220 bbl frac tank for oilfield

Product Description

1.Product Number:                         Frac tank

2.Standard/Code:                           CCS

3.Design Pressure:                        AMB

4.Operation Pressure:                   AMB

5.Test Pressure:                             AMB

6.Leakage Pressure:                     AMB

7.Full Volume:                                 63m³

8.Effective Volume:                         63m³

9.Design Temperature:                 -20ºC~+50ºC

10.Stored Medium:                         Water

11.External Frac Tank Size:          12192mmX2438mmX 2896mm

12.Internal Frac Tank Size:           11290mmX 2292mmX 2540mm

13.Empty Weight:                           11,279kg

14.Max. Payload Weight (Static): 63,000kg

15.Max. Gross Weight (Static):    74,279kg

16.Material:                                      Carbon Steel

17.Leak Test:                                   Full Water Check

18.Paint and Package:                  Vessel: White, ≥ 120um        Frame: Blue, ≥ 120um

19.Wheel is required or Not:        N/A




Specifications:

FLOOR: 1/4 PL, 4" V-bottom with integral formed side channels



FLOOR SUPPORT: 10" channel longitudinal runners with formed

1/4 PL crossmembers



WALLS: 1/4 PL solid welded, corrugated steel, corrugations 15"

on center



ROOF: Flat top, 1/4 PL solid welded with channel supports outside



FRONT/REAR: 1/4 PL solid welded, corrugated steel, 10" radius at vertical outside corners



DRAIN/FILL: 4" floor drain at rear end, 3" fill pipe to roof at rear, 4" suction line connection at front to sump, 8" flanged front manifold connection with turn down to floor. 8" exterior manifold with 4 - 4" couplings and plugs, hammer union sub, nut, and cap on ends



GEL LINE: 4" mid high connection on curb side, 4" internal pipe with 3/4" holes located on 12" centers towards floor center, capped on rear end (ends near side manway)



MANWAY: 21" manway on front and side, 3 - non-sealed hatches on roof



PICK UP: Standard 5th wheel king pin



WELDS: All welds continuous except substructure crossmembers

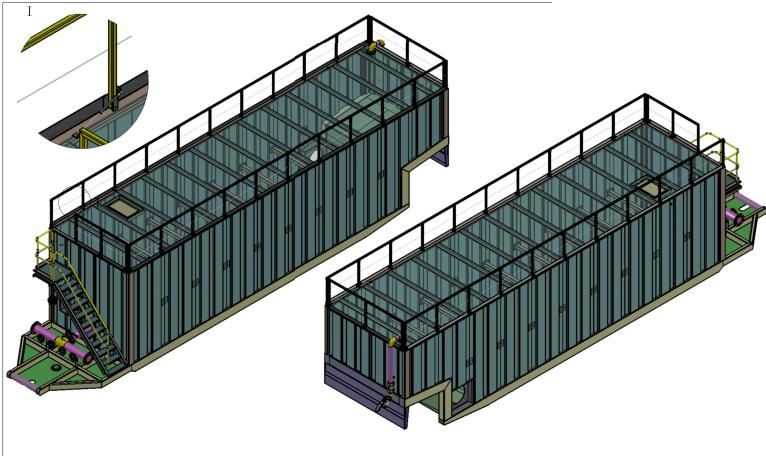

drawing draft of frac tank :
