• Model NO.：5-1,2"
• Application：Dissolvable Plug
• Transport Package：Wooden Case
• Specification：7"
• Trademark：ZX
• Origin：China
• HS Code：8431431000
• Production Capacity：100 Set Per Month

Basic Info.

Model NO. 5-1/2" Application Dissolvable Plug Transport Package Wooden Case Specification 7" Trademark ZX Origin China HS Code 8431431000 Production Capacity 100 Set Per Month

Product Description

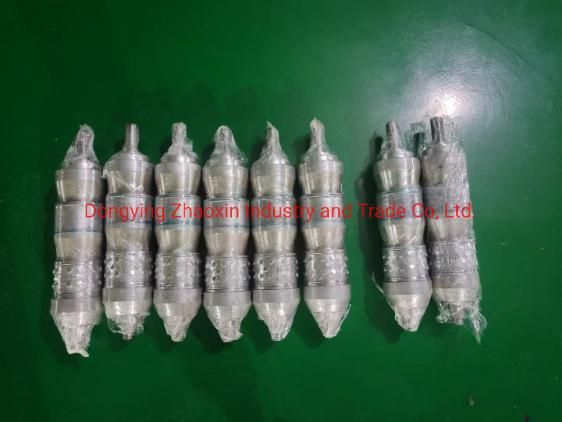

Dissolvable FRAC PLUG





Specification :
   lIt consists of dissolvable metals and rubber.lUpper and lower double slip design ensures reliable pressure seal.lTo meet the construction requirements of large displacement 70MPa (10000psi).lLarge diameter 50mm to meet the demand of backflow.lDissolution rate can be adjusted according to well condition.lNo residual wellbore after dissolution to achieve full diameter.lNo need for tubing plug, saving cost, reducing operation risk and improving production efficiency.lCan provide 3-1/2", 4-1/2", 5", 5-1/2"casing dimensions.



Model	OD (mm)	ID (mm)	length (mm)	temperature (ºC)	Setting (T)	Stroke (mm)	Differential pressure(MPa)	Setting tool	Casing ID (mm)
QJSQS-70	70	25	240	30-180	10-12	60	70	Hydraulic setting tool	Φ76-83
QJSQS-85	85	35	240	30-180	10-12	70	70	BK10	Φ99-102
QJSQS-89	89	40	220	30-180	10-12	65	70	BK10	Φ99-104
QJSQS-99	99	50	240	30-180	12-16	70	70	BK20	Φ104-115
QJSQS-103	103	55	220	30-180	12-16	60	70	BK20	Φ110-115
QJSQS-109	109	60	240	30-180	12-16	70	70	BK20	Φ118-124
