Cast Aluminium Straight Blade Solid/Rigid Centralizer

Puyang Zhongshi Group Co., Ltd.
  • Type:Heavy Crude Oil
  • Usage:Well Drilling Machinery, Oil and Gas Transportation Machinery, Oil and Gas Processing Machinery
  • Certification:ISO, API
  • Power Type:Diesel
  • Transmission System:Mechanical
  • Material:Rigid,Nylon,Cast Aluminum,Idler Wheel

Base Info

  • Height:650
  • Weight:13
  • Bow Number:6
  • Type1:Bow
  • Type2:Slip on
  • Color:as Requested
  • Application:Oil Product
  • Transport Package:Wf or Wc
  • Specification:API
  • Trademark:zhngshi
  • Origin:China
  • HS Code:7302
  • Production Capacity:10000PCS,Year

Description

Basic Info.

Height 650 Weight 13 Bow Number 6 Type1 Bow Type2 Slip on Color as Requested Application Oil Product Transport Package Wf or Wc Specification API Trademark zhngshi Origin China HS Code 7302 Production Capacity 10000PCS/Year

Product Description

Product name: Casing centralizer

Product classification: Bow-spring centralizer, Rigid roller centralizer, Cast aluminum centralizer

Product overview:
Casing centralizer is one of the necessary conventional casing accessories, upon well operationscompletion, the rational use of casing centralizer can play the role of:
Reducing lower casing resistance phenomenon, making the casing smoothly down to the design position;
Making casing centralizer centered within the well|;
Reducing the sticking phenomenon to make the annular space hydrostatic pressure balanced;
Reduce channeling, improve the mud replacement efficiency, thus improve the cementing quality.

The reset force of double bow type centralizer is higher than that of single bow centralizer, centering centering performance is better than that of single bow type.

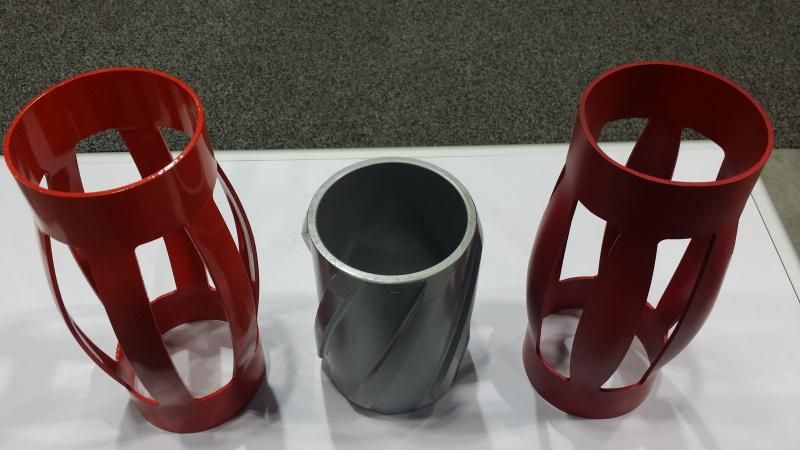

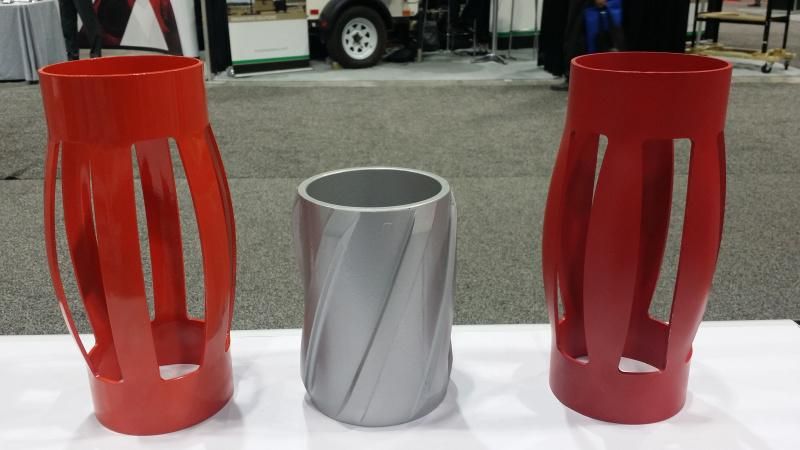

Bow-spring centralizer
1. These Centralizers are designed for High Restoring Force and Low Starting Force for centralizing the casing pipe in a Vertical, Horizontal and Deviated well
2. Premium quality Bows are made of special alloy steel and hot formed in totally controlled heat treatment plant to achieve the uniform hardness all over



3. Spec and performance index of bow spring casing centralizer meet API Spec 10D. The woven centralizer is connected by pin when in use, the unfolded centralizer can be stacked flatly for convenient storage and transportation.
Rigid roller centralizer
Rigid casing centralizer is used in deviated wells and horizontal wells. There are several blades on the rigid roller centralizerthat can keep casing from contacting the wellbore wall

Roller rigid centralizer which is most suitable for highly deviated wells and horizontal wells has two or three rollers in each blade. It can change slipping friction to rolling friction, so the Roller rigid centralizer greatly reduces the friction between casing and wellbore wall and let casing go to desired position smoothly

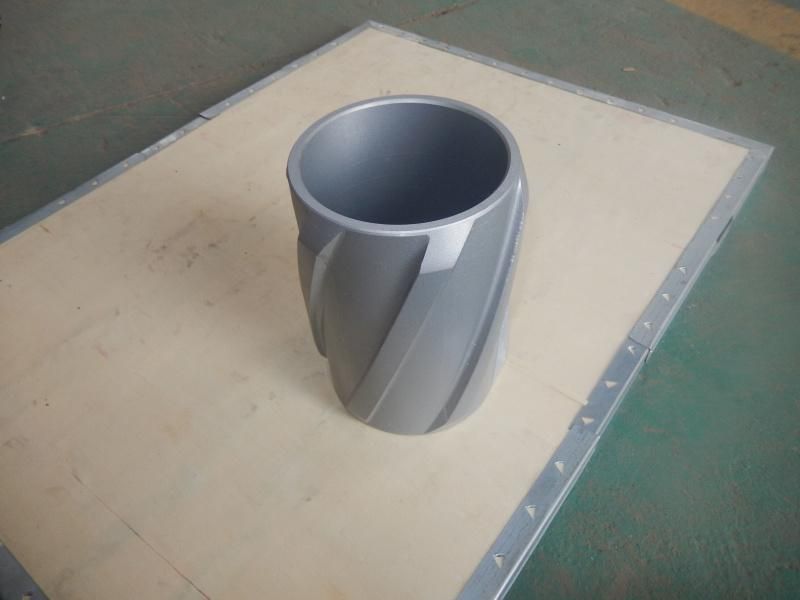

Cast aluminum centralizer:
The smooth spiral 360 overlap solid vane design of centralizers provide max wall contact will not damage wellhead equipment, has high impact and shock resistance comand fluid swirl. The 30slope from the body to the height of the vane will eliminate scraping, or digging into the formation.

The solid cast aluminum centralizers bine with high tensile and yield strengths
No.TypeInside diameter (mm)Height (mm)Total height (mm)Largest diameter (mm)
15 "*12-1/4"128-131105690330
25 "*20"128-131105720535
35-1/2 "*7"142-14855650215
45-1/2 "*8-1/2"142-14855650225
56 "*8-1/2"156-15855650235
67 "*8-1/2"181-18655650235
77 "*9-5/8"181-18655650255
87-5/8 "*9-5/8"197-20155650275
99-5/8 "*12-1/4"250-25555650330
1013-3/8 "*17-1/2"342-34755650450
115-1/2 "*8-1/2"142-148110650225
127 "*9-5/8"181-186110650255
137 "*8-1/2"181-186110650235
145 "*6-1/2"128-131110650175
157-5/8 "*9-1/2"196-200110650250
1610-3/4 "*12-1/4"274-276110650330
175 "*6-1/4"130-132110650170
189-5/8 "*12-1/4"250-255110650330
1913-3/8 "*17-1/2"342-347110650450
205-1/2 "*8-1/2"142-14855650225

No.SpecificationBow TypeID(mm)Length
(mm)
Max. O.D
(mm)
Bow Spring
15-1/2"*8-1/2"I,II142-148650±50225±55
27"*8-1/2"I,II181-186650±50235±56
39-5/8"*12-1/4"I,II250-255650±50330±58
410-3/4"*12-1/4"I,II274-276650±50330±59
513-3/8"*17-1/2"I,II342-347650±50450±511
620"*26"I,II510±1600±50660±512
