Petroleum Equipment & Machinery

Breakout and Makeup Machine for Coulpling Tubulars

Dongying On-tech Equipment Co., Ltd
  • After-sales Service:on-Line or on Site
  • Warranty:12 Months
  • Certification:QC Report
  • Power Source:Hydraulic
  • Operation Pressure:Power Station
  • Structure:Horizontal

Base Info

  • Model NO.:All sizes
  • Material:Cast Steel
  • Application:Coupling The Tubing and Pipe and Breakout, etc.
  • Load:10~180 Kn.M
  • Thread:Nc, If, Reg, Eue, Nue, Vam, etc
  • Control System:with Power Station & Control Panel
  • Transport Package:Standard Export Packing
  • Specification:2-3,8" ~ 30"
  • Trademark:On-tech
  • Origin:China
  • Production Capacity:100sets,Year


Basic Info.

Model NO. All sizes Material Cast Steel Application Coupling The Tubing and Pipe and Breakout, etc. Load 10~180 Kn.M Thread Nc, If, Reg, Eue, Nue, Vam, etc Control System with Power Station & Control Panel Transport Package Standard Export Packing Specification 2-3/8" ~ 30" Trademark On-tech Origin China Production Capacity 100sets/Year

Product Description

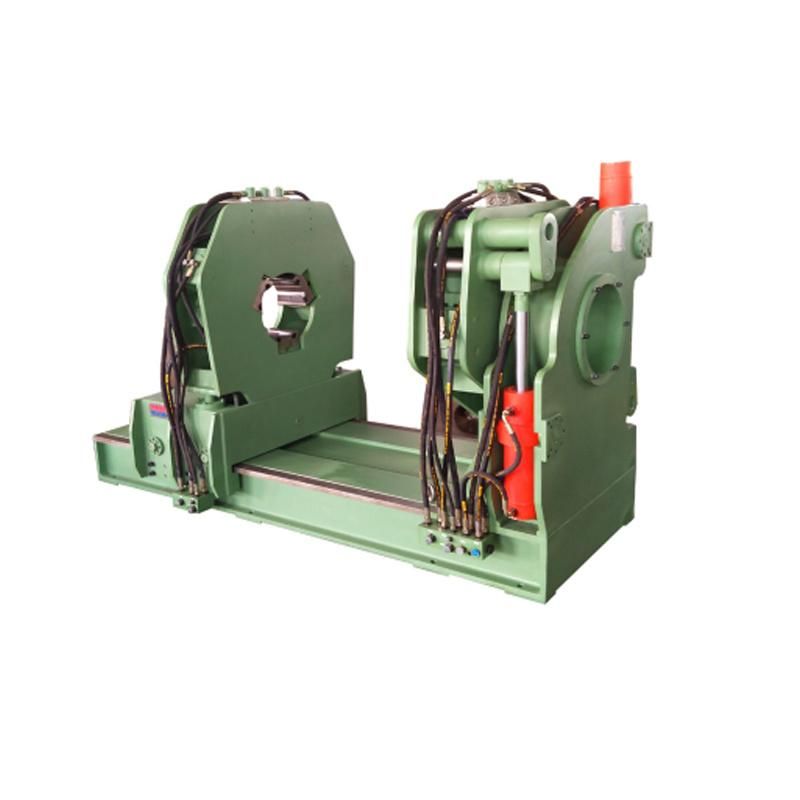

Bucking unit Makeup and Breakout Machine
     -- Thread Tubing/ Casing Coupling Bucking Unit
Breakout and Makeup Machine for Coulpling TubularsProduct Description

premium thread  tubing/ casing coupling bucking unit is the special equipment applied to the processing of premium thread oil pipe. It is also applied to the coupling screw of the premium thread such as FOX, NK3SB,VAM,BGT as well as the API thread .With slight mark and the depth of being less than 0.1mm, the floating backup tong is able to inspect the make-up torque precisely and display the torque of inflection point clearly during the make-up process. It changes speed automatically during the make-up process and the low rotation speed is lower than 5r/min. It is thus applied to the processing demand of premium threads.

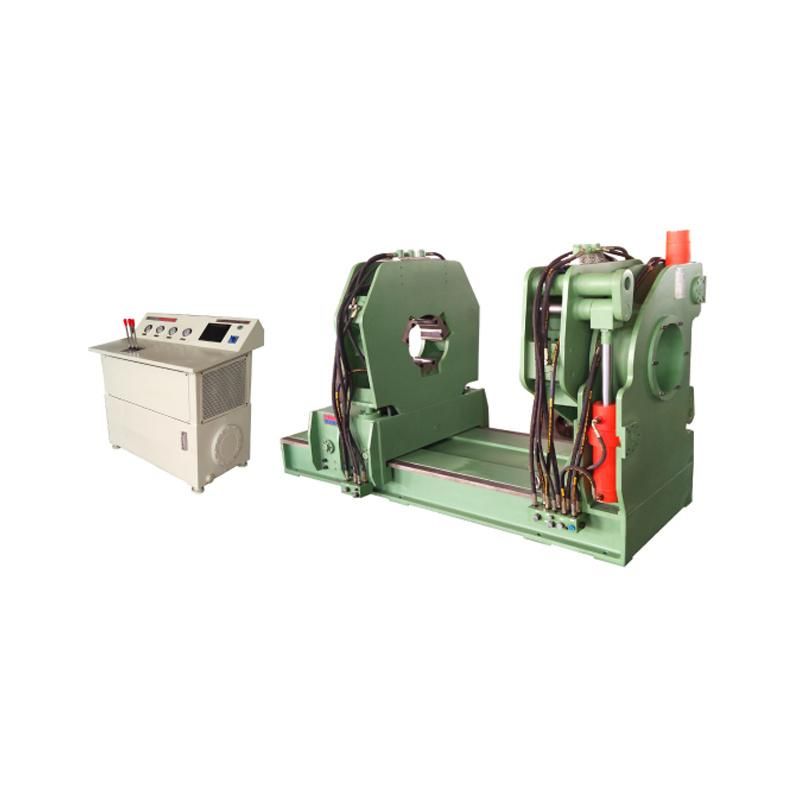

           1) Torque Control System
           2) Hydraulic Power Station
           3) Hydraulic Hose

Breakout and Makeup Machine for Coulpling TubularsTechnical Specifications
ColorGreen, blue, as required
Size2-3/8" ~ 30"
load10~180 KN.m
Surface treatingAs required
ApplicationTo screw the pipe thread for making up and breaking out
ModelAll models
ThreadNC, IF, REG, EUE, NUE, etc
GradeAll grades
CNC Control SystemWith power station & control panel

Breakout and Makeup Machine for Coulpling TubularsTorque control system:
TPC for short, is an advanced torque signal processing control and record system which can be used to measure, display, record and control torque when making up the tubes so as to ensure the best screw torque is achieved in the tube joints and all curve data of all joints in screw tightening period are stored in the disc for later search.
TCP system is used together with our series to achieve automatic control on screw torque of pipe joints, and ensure the screw torque is within the range recommended by API standard so as to avoid the tubes being damaged by thread gluing and tong key caused by over-torque to meet the strict standard and requirements for tubes when makeup.
