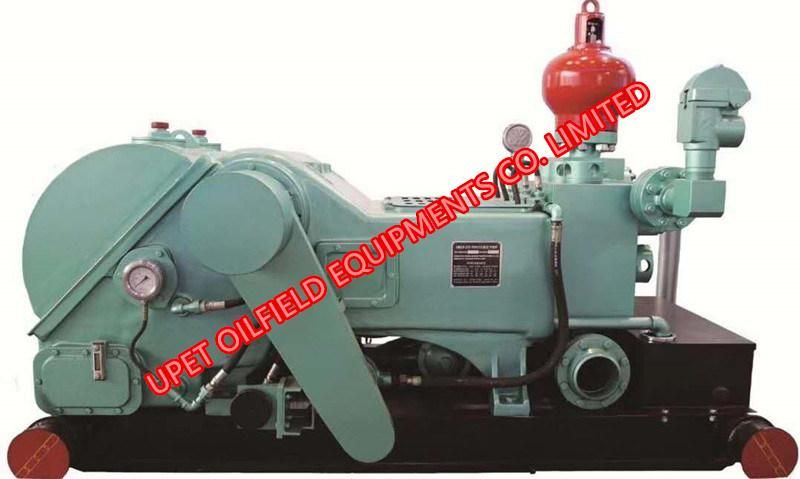

Gardner Denver Pah-275 Triplex Drilling Mud Pump/Pah Triplex Well Service Pump

UPET GROUP CO., LTD.
  • Certification:CE, ISO 9001:2000, ISO 9001:2008, API
  • Power Source:Electric&Engine
  • Operation Pressure:3500psi-7500psi
  • Material:Cast Steel&Forged Steel
  • Type:Triplex Piston Drilling Mud Pump
  • Mud Pump:Professional Supplier of Drilling Mud Pump

Base Info

  • Model NO.:PAH-275, PAH
  • Warranty:1 Year
  • Application:Oilfield
  • Colour:Customer Requirement
  • Transport Package:Container
  • Specification:8Ton-26Ton
  • Trademark:UPET
  • Origin:China
  • HS Code:8413509090
  • Production Capacity:120 Sets,Year

Description

Overview Product Description





• Nodular iron power frame, eccentric, connection rods, and crossheads

• Double-row-spherical roller bearnings carry eccentric

• Double extended Jackshaft carried on heavy-duty straight roller bearings

• Dual roller bearing connecting rod

• Heat-treated alloy steel main gears are bolted to the eccentric

• Replaceable bronze crosshead slides

• Full splash lubrication, with oil pump to feed working parts

• Heat-treated alloy steel, interchangeable fluid cyclinders

• Three-rib API-7 urethane insert valves and seats

• Replaceable-type element oil filter and oil pressure gauge

• Threaded valve covers

• Plated piston rods

• Complete piston washing and lubrication system

The monoblock forging of hollow sphere for the pulsation damperer is first made in China

Rated Horsepower:

275 HP

Rated Pump Speed:

175 SPM

Stroke Length

8"

Maximum Liner Size:

5"

Rod Load :

22,030 lbs

Gear Ratio

4.7:1

Approximate Weight:

9,800 lbs


PZ series Mud Pump include: PZ-7,PZ-8,PZ-9,PZ-10,PZ-11
PZ series Mud Pump is a horizontal triplex single acting piston pump, the design and manufacture according to API Standard, it has following features:
Pump case are welded castings steel and steel plates.
Crankshaft bearings are double-row spherical roller bearings.
Double extended Jackshaft carried on heavy-duty straight roller bearings.
Connecting rod tip are fitted with roller bearings.
Wrist pin end carried on double row long cylindrical roller bearing.
Replaceable bronze crosshead slides.
Main gears are machined to herringbone gear.
Lubrication system is the combination of forced lubrication and splash lubrication.
Valves are API 7# valves seats.
Discharge connections can be made on either side of pump.
Suction connections at the center of the cylinder manifold



PZ-7 Mud PumpLiner Dia.DisplacementsMax. Pressureinchmmgal/rL/rgal/minL/slb/in2Mpa71783.513.255071,9191,6731186.51653.0211.434371,6541,9401366.251522.7810.554041.5302.10014861522.579.733731,4122,2771605.51402.168.183131,1852,71019151271.786.742599803,2792314.51141.455.492107954,04828541021.144.321666285,000352PZ-8 Mud PumpLiner Dia.DisplacementsMax. Pressureinchmmgal/rL/rgal/minL/slb/in2Mpa71784.0015.145802,1961,9961406.51653.4513.065001,8932,3151636.251593.1912.084621,7492,50417661522.9411.134261,6132,7171915.51402.479.353581,3553,23322751272.047.722961,1203,9122854.51141.656.252409084,83034041021.314.961897155,000352PZ-9 Mud PumpLiner Dia.DisplacementsMax. Pressureinchmmgal/rL/rgal/minL/slb/in2Mpa71784.5017.0352536.92,63918.26.51653.8814.6950431.83,06021.16.251593.5913.5946629.43,31022.861523.3012.4943027.13,59224.85.51402.7810.5236122.84,27429.551272.298.6729818.85,00034.54.51141.867.0424215.35,00034.541021.475.5619112.15,00034.5PZ-10 Mud PumpLiner Dia.DisplacementsMax. Pressureinchmmgal/rL/rgal/minL/slb/in2Mpa7178518.935752,1773,6243556.51654.3116.324961,8784,20329561523.6713.894221,5974,9333475.51403.0911.73551,3445,000352PZ-11 Mud PumpLiner Dia.DisplacementsMax. Pressureinchmmgal/rL/rgal/minL/slb/in2Mpa71785.520.826322,3923,9052756.51654.7417.945452,0634,52931861524.0415.294651,7605,0003525.51403.4012.873901,4765,000352 Detailed Photos
Gardner Denver Pah-275 Triplex Drilling Mud Pump/Pah Triplex Well Service Pump

Gardner Denver Pah-275 Triplex Drilling Mud Pump/Pah Triplex Well Service Pump

Gardner Denver Pah-275 Triplex Drilling Mud Pump/Pah Triplex Well Service Pump

Gardner Denver Pah-275 Triplex Drilling Mud Pump/Pah Triplex Well Service Pump
