Choke Manifold Control Panel

Xi'an TianRui Petroleum Machinery Equipment Co., Ltd.
  • Manufacturing Process：CNC Milling
  • Surface Treatment：Spray-Paint
  • Operation Pressure：Atmospheric Pressure
  • Material：Stainless Steel
  • Transport Package：Wooden Case
  • Specification：JY1-35BJT

Base Info

  • Model NO.：JY1-35BJT
  • Trademark：TR Solids Control
  • Origin：Xi′an, China
  • HS Code：84748090
  • Production Capacity：10 Sest,Mont

Description

Basic Info.

Model NO. JY1-35BJT Trademark TR Solids Control Origin Xi′an, China HS Code 84748090 Production Capacity 10 Sest/Mont

Product Description

Choke manifold control panel

Control panel is the control device for hydraulic choke manifold. It can remote control the opening and closing of the hydraulic choke valve and show the pressure of standpipe and casing pressure, and the switching position of hydraulic choke valve. It can also show the strokes and frequency of the three mud pumps if equipped with pump stroke counter, which is an necessary equipment to control well kick,blowout and pressure balance.

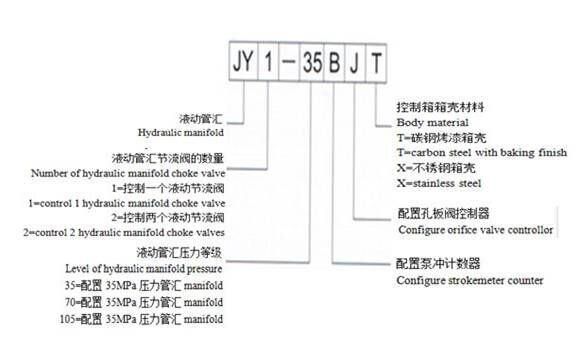

Model description:
Choke Manifold Control Panel


Technical parameters:
(1)Air pressure:0.6MPa
(2)Environment temperature:-20ºC~+60ºC
(3)Working pressure:3MPa
(4)Gas circuit quick coupling size:M16×1.5
(5)Oil passage quick coupling size:M22×1.5
(6)Hydraulic oil specification:cold resistance hydraulic oil
(7)L×W×H:960×600×1300
(8)NW:300kg
