• Model NO.：Expanding , Slab Gate Valve
• Product Name：API 6A 6" Expandable Hydraulic Mud Gate Valves
• Working Pressure：2000psi~10000psi
• Size：1 13,16"~7 1,16"
• Connection：Flange Ends
• Working Medium：Oil, Natural Gas and Gas Containing H2s, CO2
• Material Level：AA, Bb, Cc, Dd, Ee, FF, Hh
• Temperature Level：-46ºC~121ºC (Level L-U)
• Transport Package：Export Packing
• Specification：Expanding , Slab Gate Valve
• Trademark：OilMan
• Origin：China
• HS Code：84314310
• Production Capacity：1000 Pieces Per Month

Basic Info.

Model NO. Expanding / Slab Gate Valve Product Name API 6A 6" Expandable Hydraulic Mud Gate Valves Working Pressure 2000psi~10000psi Size 1 13/16"~7 1/16" Connection Flange Ends Working Medium Oil, Natural Gas and Gas Containing H2s, CO2 Material Level AA, Bb, Cc, Dd, Ee, FF, Hh Temperature Level -46ºC~121ºC (Level L-U) Transport Package Export Packing Specification Expanding / Slab Gate Valve Trademark OilMan Origin China HS Code 84314310 Production Capacity 1000 Pieces Per Month

Product Description

API 6A 6" Expandable Hydraulic Mud Gate Valves Flange Connection
 •Expanding valve with full bore design,eliminates efficiently pressure drop and vortex, and eliminates washing by solids in fluid.
• Gate use expanding type structure.
• Achieve low torque operation and low wastage during open and close.
• Metal seal is used between bonnet and body.
• Soft seal or metal seal is used between gate and seat.
• Inject sealant through injection valve to improve seal performance.


Product Name	Expanding Gate Valve
Working Pressure	2000PSI~10000PSI
Nominal Bore	1.13/16"~7.1/16" (46mm~180mm)
Working Medium	oil,natural gas,mud and gas containing H2S,CO2
Working Temperature	-46°C~121°C(Class LU)
Material Class	AA,BB,CC,DD,EE,FF,HH
Specification level	PSL1-4
Performance Requirement	PR1-2

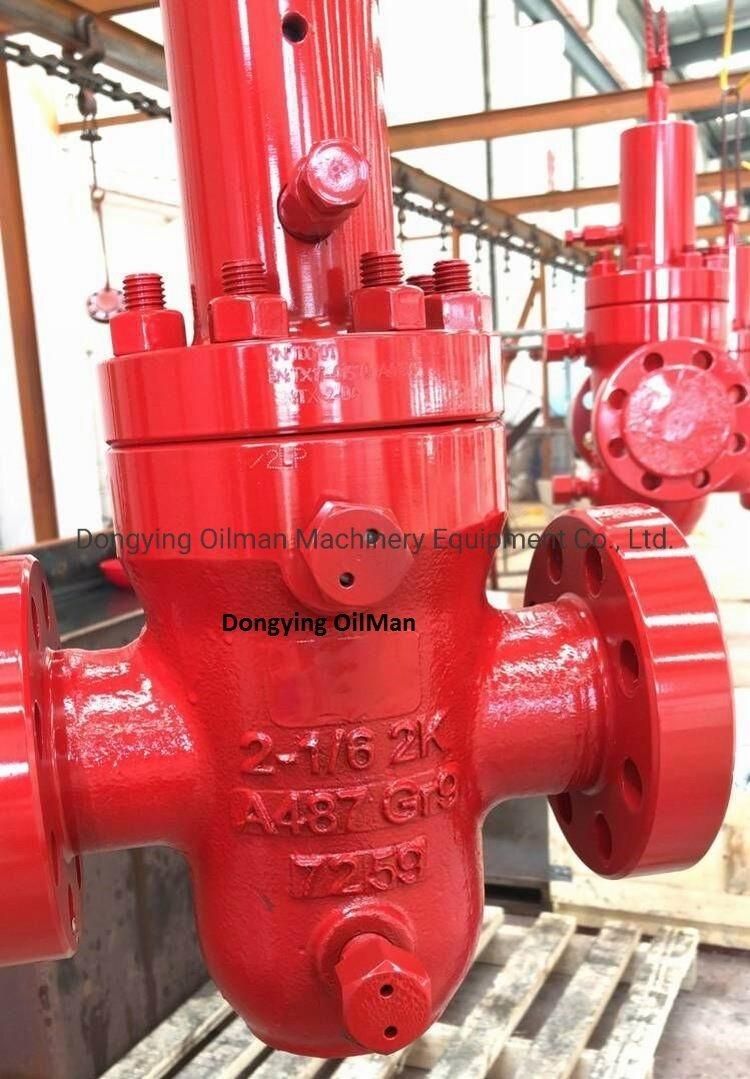

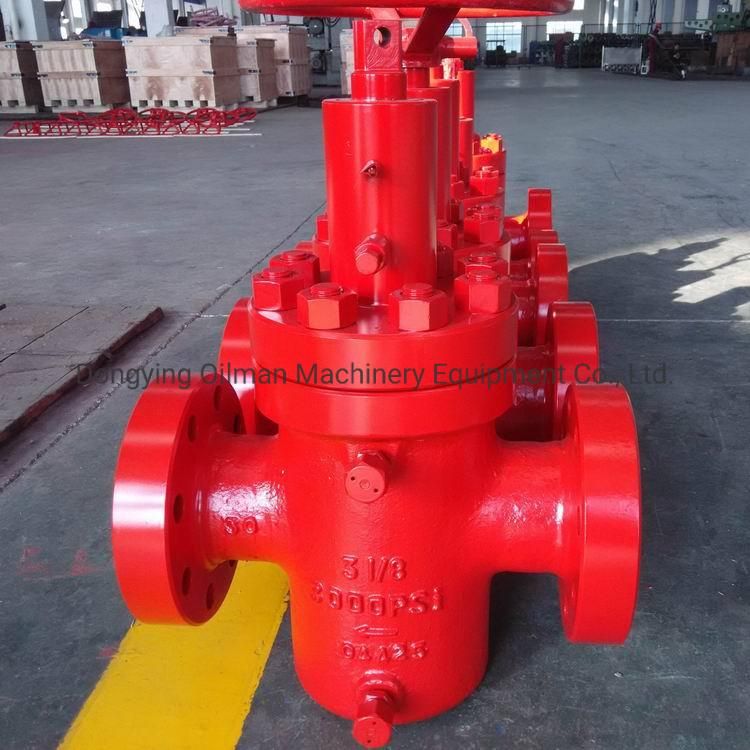

Gate Valve Pictures:

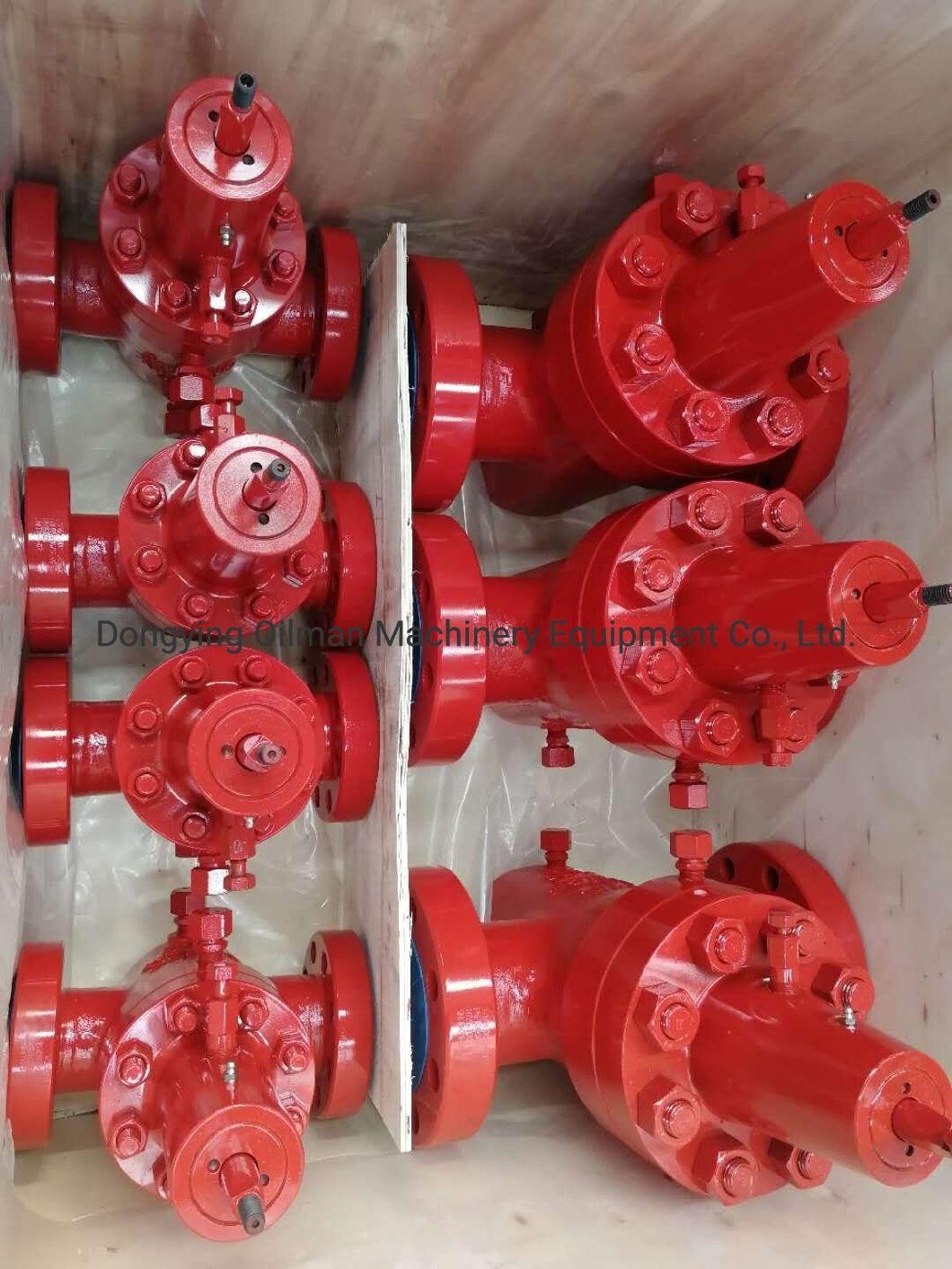

Packing & Delivery of Gate Valve:

Related Products:

About us

Dongying OilMan Machinery Equipment Co.,Ltd is a professional supplier of various petroleum equipment, including drilling rig and accessories, well control system, solid control equipment, drill string, handling tools, downhole tools, OCTG, drilling tools, cementing tools and sapre parts with API certification. Our products have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, first-class service and reasonable prices.



Certificates

API-5CT, API-10D, API-7K, API-11E, API-6A, API-11AX, API-5D, ISO 9001, ISO14001, ISO18001 etc.
