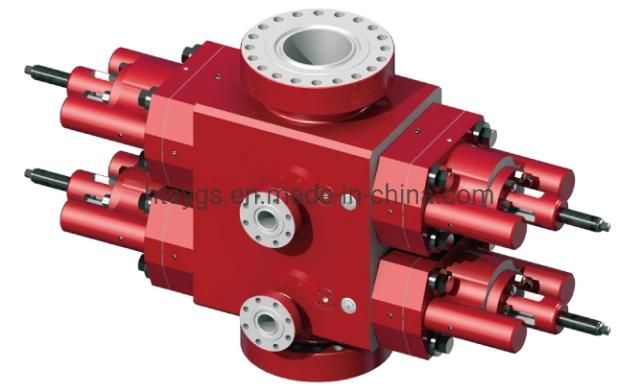

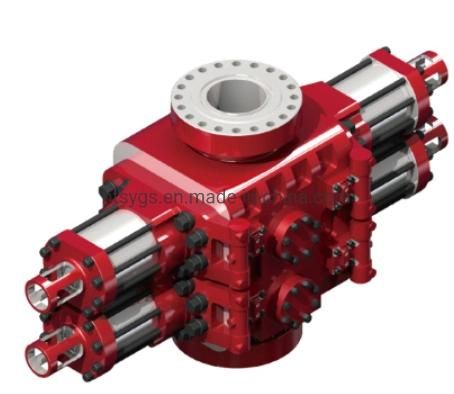

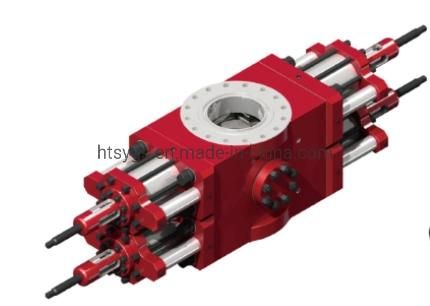

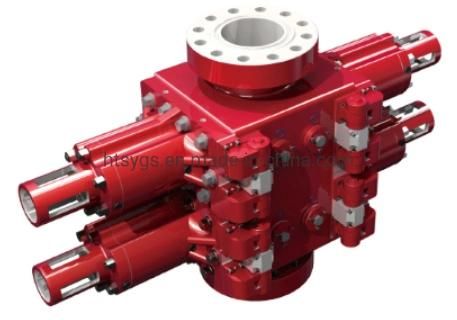

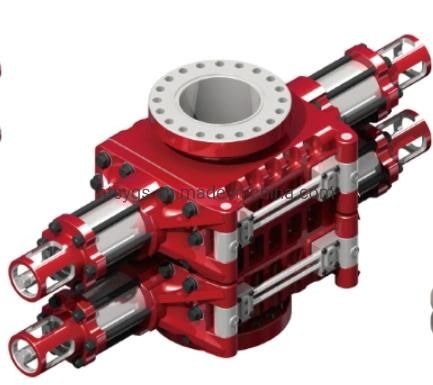

API 16A Double RAM Bop Used in Oil Field
Wise Channel Industries Limited- Certification：API Certificate
- Power Source：Outer Source
- Applicable Medium：Mud, Natural Gas, Crude Oil
- Material：Alloy
- Main Bore：7-1,16" ~13-3,8"
- Performance Requirement：Pr1, Pr2
Base Info
- Model NO.：U type double RAM BOP
- Production Specification Level：Psl1~Psl4
- Temp.Class：P~U
- Transport Package：Wooden Case
- Origin：Jiangsu China
- HS Code：8431431000
- Production Capacity：1000units Per Year
Description
Features of U type Ram BOP:
1) Pressure part is forging, has better strength and impact toughness, can avoid the defects of the casting;
2) Intermediate flange adopts radial floating seal, open and close by hydraulic pressure, changing of ram is fast and convenient;
3) Equipped with tandem booster, compared with traditional ram bop with shearing capacity, the new one is smaller and function of which is constant;

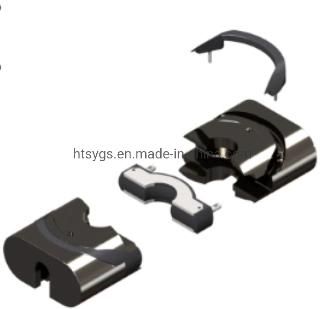

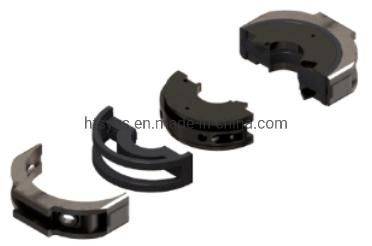

4) Abundant reserve of ram packer, adopts self sealing;
5) Manual locking device is standard configuration, ensure the ram keep closing in case of hydraulic pressure loss;
6) Manual Locking Device, Hydraulic locking Device, and Tandem Booster can be configured at corresponding place according to client's requirements, and its interchange is convenient.
Working pressure: 3000PSI to 15000PSI;
Main bore: 7 1/16" to 13 3/8"
