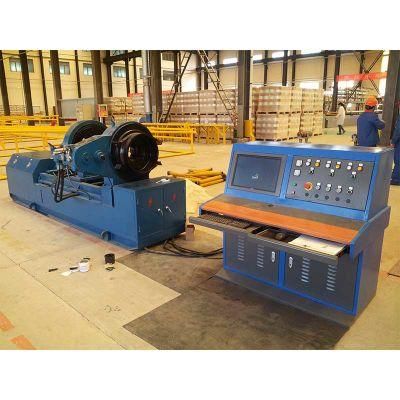

Ygxj-210 Type Drill Pipe Straightening Machine

Huludao City Liaoxi Petroleum Machine and Tools Factory
  • Scope of Application：Outside Diameter Φ60~Φ168 mm
  • Rated Screw Down Force of Whole Oil Cyli：200t
  • Transport Package：Wooden Case
  • Origin：China

Base Info

  • Model NO.：YGXJ-210
  • HS Code：8462291000
  • Production Capacity：3 Sets,Month

Description

Scope of applicationoutside diameter :φ60~φ168mm;
Maximum wall thickness 12.7mm.Rotation speed of drive roll9r / minPipe straightening travelling speedabout 8m/minThe unstraightness tolerance of pipe before straightening≤50mm/MStraightening accuracystraightness of total length≤4mm, straightness within 3m on both ends≤2mmRated screw down force of whole oil cylinder200TOperating pressure of hydraulic system10MParated operating pressure16MPaRoll system configuration2 - 1 - 2 - 1 six-roll composite roll systemRoll form curve typehyperbolic curveInclination angle of straightening roll30°±3°Total power of equipment55Kw
