• Model NO.：Aluminum Casing Centralizer
• Size Range：4 1,2′′---13 3,8′′
• Standard：API 10d
• Processing：Casting
• Use：Well Cementing
• Transport Package：Plywood Case
• Specification：API, ISO
• Trademark：Zhongshi
• Origin：Henan, China
• HS Code：73079900
• Production Capacity：10000piece,Month

Basic Info.

Model NO. Aluminum Casing Centralizer Size Range 4 1/2′′---13 3/8′′ Standard API 10d Processing Casting Use Well Cementing Transport Package Plywood Case Specification API, ISO Trademark Zhongshi Origin Henan, China HS Code 73079900 Production Capacity 10000piece/Month

Product Description

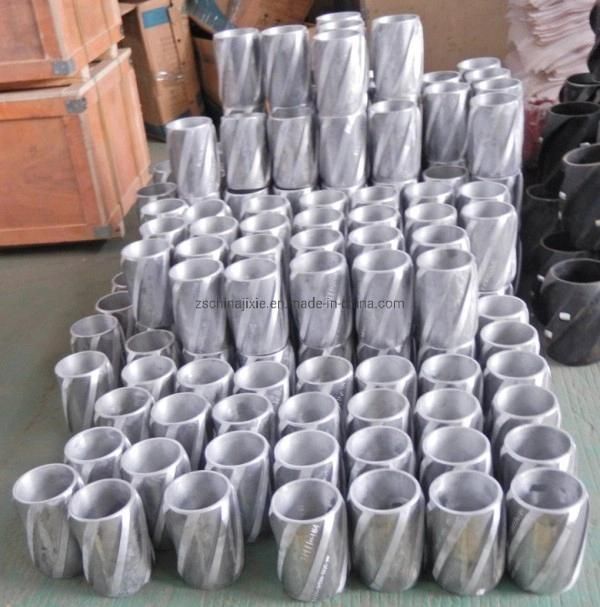

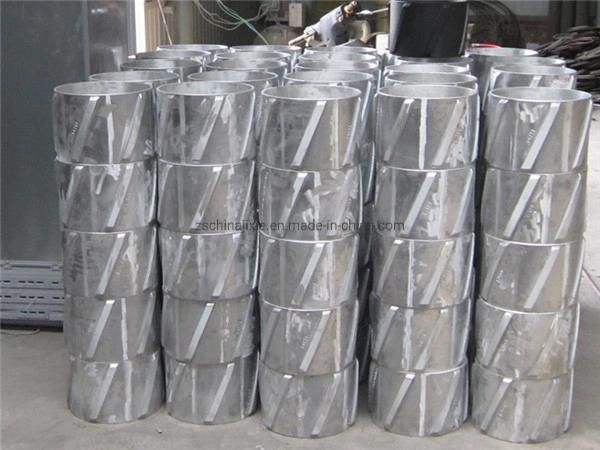

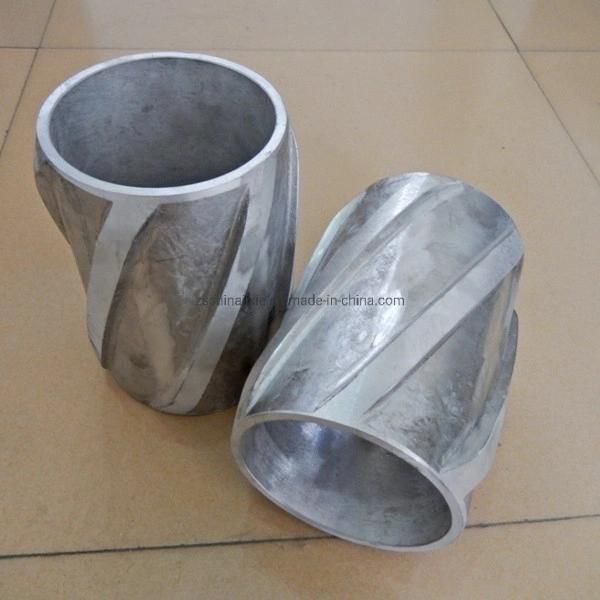

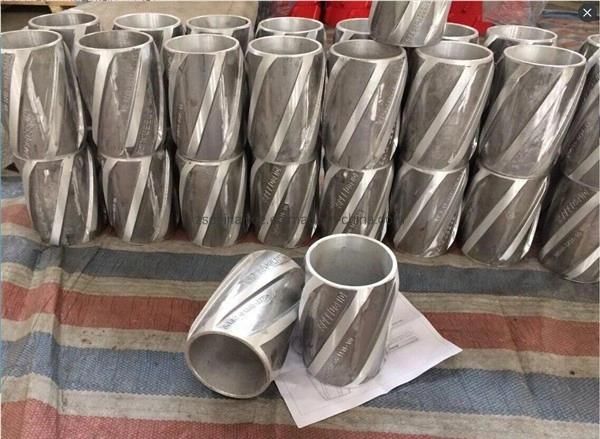

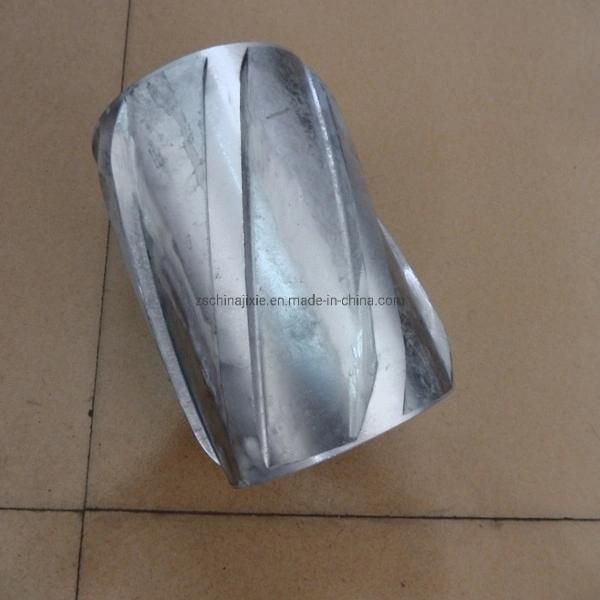

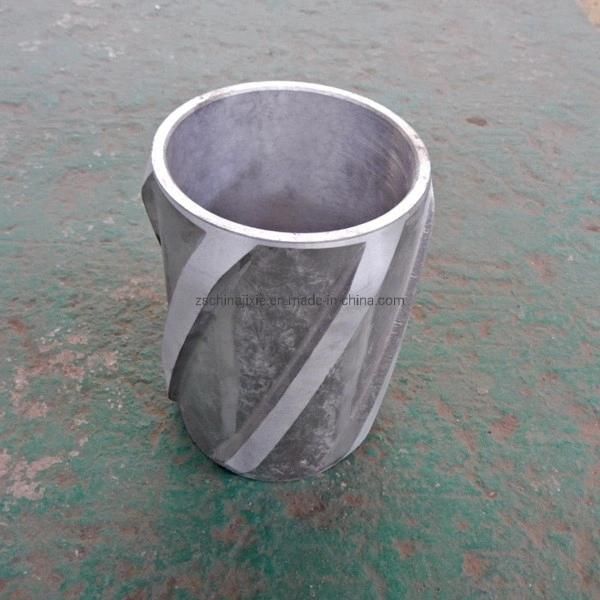

API Oil Well Cast Aluminum Casing Centralizer

1) Material: Aluminum

2) Type: Cast Aluminum Casing Centralizer

3) API and ISO certified

4) Specifications: 4 1/2''---13-3/8''. More special sizes or combination are available as requested.

5) Application

Casing centralizers are to help center the casing in the wellbore, allowing even distribution of the cement around the casing during cementing operations.
Cast Aluminum Casing Centralizer should be used in areas where a good primary cementing job is required, including deviated and horizontal wells.

6) Features for Cast Aluminum Casing Centralizer:

a. Light Weight.
b. High shock, impact Resistance.
c. Optimumtensile and yield strength.
d. Anti-corrosion.

7) Installation

Cast Aluminum Casing Centralizer can be installed on the casing with stop collars or with integral set screws. Installations that allow casing rotation and reciprocation are preferred because of improved displacement efficiency. Most slip-on rigid centralizers must be installed between stop collars and are freely floating there between.



8) Parameter


Model	Max OD(mm)	ID(mm)	Length(mm)
4-1/2" x 6"	145	116.5	200
5" x 6"	145	129	200
5-1/2" x 8-1/2"	205-210	142	200/300
6-5/8" x 8-1/2"	205-210	171	200/300
7" x 8-1/2"	205-210	181	200/300
7" x 9-1/2"	225-235	181	200/300
7" x 9-5/8"	225-235	181	200/300
9-5/8" x 12-1/4"	300-305	248	200
13-3/8" x 17-1/2"	430-435	346	200

9) Package

10) Certificates


Company Information

Puyang Zhongshi Group Co., Ltd is a professional manufacturer of various oilfield equipments and cementing accessories since 1997, restructured enterprise of SINOPEC.

We have the certificates of API 5CT, API 10D, API 11E, API 6A, API 11AX, ISO 9001 and ISO 14001, etc..

Our  products mainly include:

1. Casing Centralizer
2.  Float Collar & Float Shoe
3. Cementing Plug
4.  Cementing Head
5.  Cement Basket
6.  Tubing Pump / Rod Pump
7.  Valve Ball & seat
8. Casing / Tubing Pipe and Coupling
9. Stage Collar
10. Pumping Unit
11. Sucker Rod



Our group have more than 10 years export experience and 9 subsidiary factories, more than 500 employees. We are the first-class supplier of resources market of SINOPEC and CNPC.  Our foreign customers are mainly from America, Central Asia, Russia, Southeast Asia, Middle East, etc.
