AISI 4145h Drilling String Type Stabilizer
Puyang Zhongshi Group Co., Ltd.- After-sales Service：Yes
- Warranty：1 Year
- Manufacturing Process：Forging
- Surface Treatment：Spray-Paint
- Operation Pressure：Atmospheric Pressure
- Material：Alloy
Base Info
- Model NO.：7
- Transport Package：Plywood Case
- Specification：7, 8.5, 9.5, 10.5, 11.5, 12.5, 16
- Trademark：zhongshi
- Origin：Henan, China
- HS Code：8431
- Production Capacity：1000
Description
Basic Info.
Model NO. 7 Transport Package Plywood Case Specification 7, 8.5, 9.5, 10.5, 11.5, 12.5, 16 Trademark zhongshi Origin Henan, China HS Code 8431 Production Capacity 1000Product Description

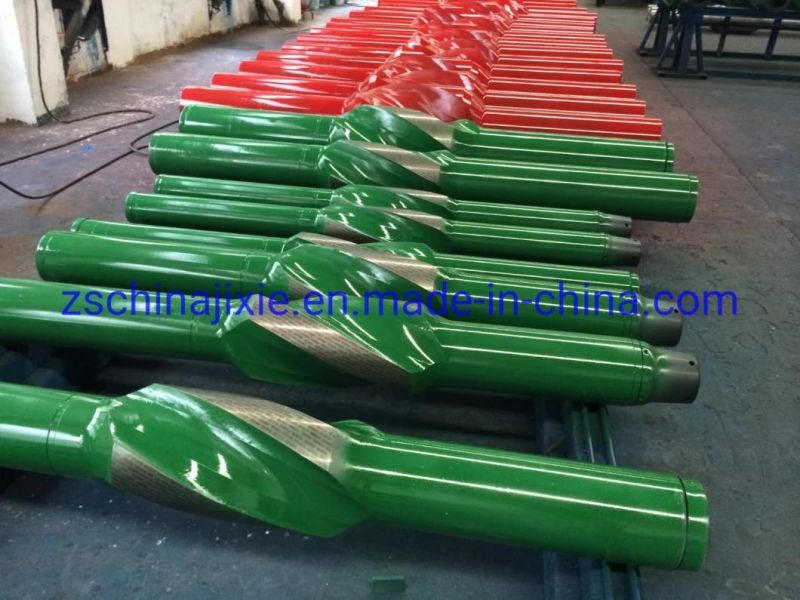

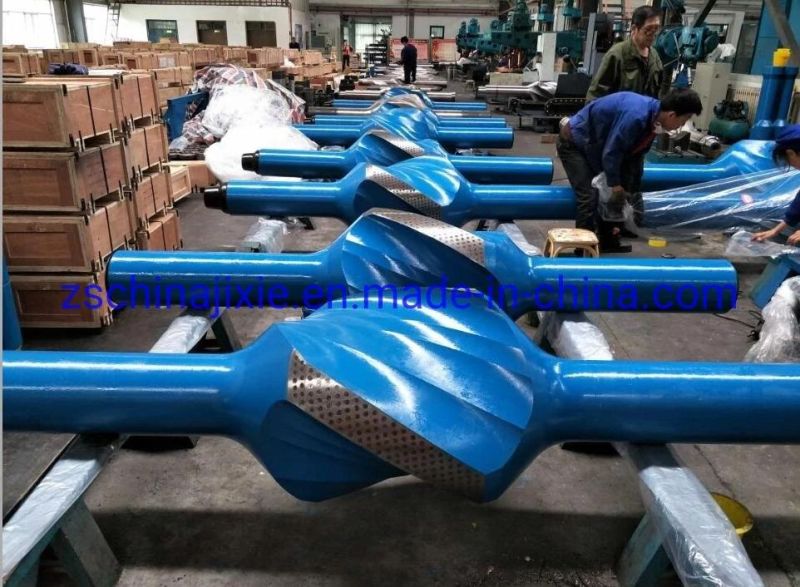

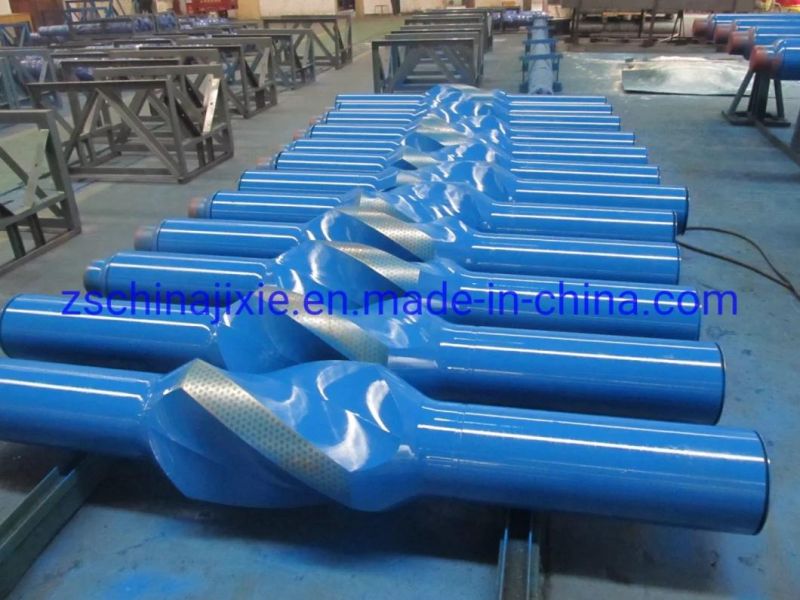

The Stabilizers have three types according to their body mandrel:Integral Spiral blade Stabilizers, Integral Mandrel sleeve Stabilizers, Integral straight blade Stabilizers.
The body (or mandrel) is made of modified alloy steel. Then fully heat treated. So their quality, strength, hardness, impact strength are gauged to API spec 7 standards.
The non-magnetic drilling stabilizers made from Low Carbon Stainless Steel which is developed by us, are according to SY/T5151 and API standard. All connections are carried on cold rolling processing. Moreover, the double-shoulder and special connection can be machined.
Connections are gauged to API standards. Connections are phosphated or plated copper, Coated and equipped with thread protectors.
