Bso Gate Valves/ API Standard 6A Ball Screw Gate Valve

Shanghai WS Energy& Technology Group Co. Ltd.
  • Drilling Program:Two Stage
  • Applicable Medium:Mud, Water, Natural Gas, Crude Oil
  • Connection Form:Flange
  • Well Type:Chassis Well
  • Installation Position:Overwater
  • Structure:Vertical

Base Info

  • Model NO.:API 6A
  • Type:Composite
  • Transport Package:Plywood Case
  • Specification:7-1,16"
  • Trademark:WS
  • Origin:China
  • HS Code:848190
  • Production Capacity:5000sets,Year

Description

Basic Info.

Model NO. API 6A Type Composite Transport Package Plywood Case Specification 7-1/16" Trademark WS Origin China HS Code 848190 Production Capacity 5000sets/Year

Product Description

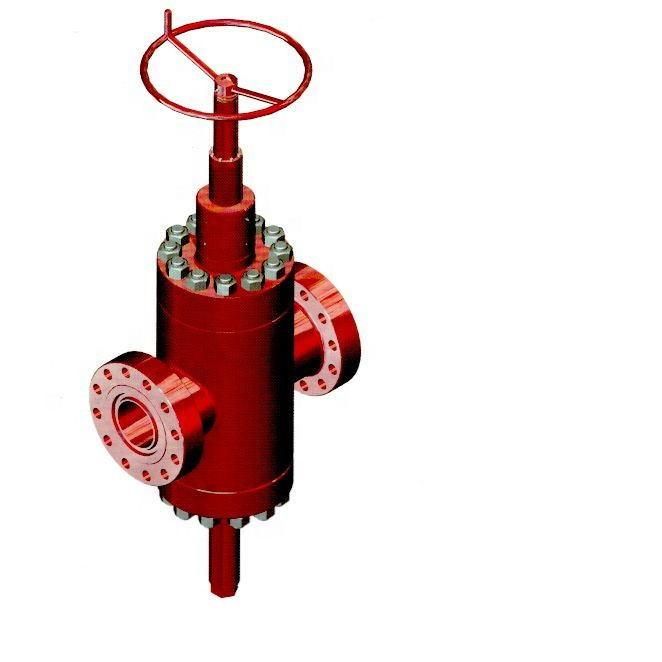

Frac Valves are Ball Screw Operated (BSO). Frac valves - ball screw gate valves is a type
of large bore gate high pressure valve which were improved from Cameron FLSR gate valve,
it's the main component of frac tree, the frac valve is often used on the top of the wellhead on
high pressure oil well, can do the frac job for isolating the fluid from the well. They are high-pressure isolation valves installed on the top of the wellbore on a wellhead platform. Frac Valves/BSO Gate Valves feature either flanged end connections or studded ones. These Valves can be operated with help of actuators with variable drive motors or can be operated manually. Frac Valves are usually made for large bore applications. These types valves have bi-directional design which allows flexibility in the direction of flow of hydrocarbon stream. Frac valves are used by specialized well control organizations and are the preferred choice of valves by organizations that perform drilling on shale plays.

Specification:
Bore Size:3-1/16", 4-1/16", 5-1/8", 7-1/16", 9"Rated Working Pressure:10000PSI, 15000PSI
Operation:Manual, Hydraulic, Ball Screw Operator (BSO)End Connections:Flanged, Studded Outlet
Material Grade:AA, BB, CC, DD, EE, FFTemp Class:L-U, P-U
Product Specification Level:PSL1, PSL2, PSL3, PSL3G, PSL4Performance Requirement:PR1, PR2
Standard Carried:API Spec 6A, NACE-MR0175Application:Frac Tree, Oilfield Fracturing Operations
