Oilfield Downhole Tools Slickline Wireline Swivel Joint
Xi'an Boban Oil Tools Co., Ltd.- After-sales Service:24,7
- Warranty:12 Months
- Manufacturing Process:CNC Milling
- Surface Treatment:Phosphating
- Operation Pressure:N,a
- Material:Cast Steel
Base Info
- Model NO.:BBSJ
- for Wire Size:0.108", 0.125"
- Connection:Un, Qls, Hdqrj
- Transport Package:Wooden Case
- Specification:1.25"~2.5"
- Trademark:BOBAN & OEM
- Origin:China
- HS Code:8431431000
- Production Capacity:100 PCS Per Month
Description
Basic Info.
Model NO. BBSJ for Wire Size 0.108", 0.125" Connection Un, Qls, Hdqrj Transport Package Wooden Case Specification 1.25"~2.5" Trademark BOBAN & OEM Origin China HS Code 8431431000 Production Capacity 100 PCS Per MonthProduct Description

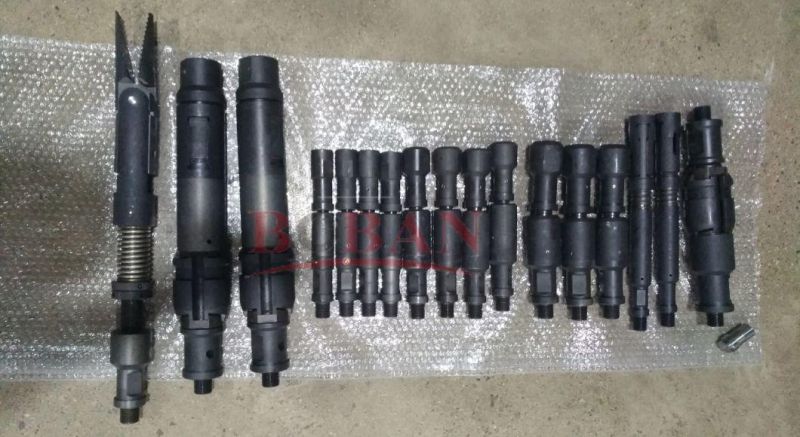

Oilfield Downhole Tools Slickline Wireline Swivel JointI. IntroductionA wireline swivel joint is used to minimize the line twist when running in and pulling out of the well. It is usually located below rope socket and the bearings permits rotational movement when maintaining longitudinal rigidity in the tool string. This design is suitable to handle impact from heavy upwards and downward jarring.
BOBAN series wireline swivel joints are available for UN, QLS and HDQRJ connection.
II. General Technical Parameters
Size | Fishing Neck | Connection |
1.5" | 1.375" | 15/16UN |
1.75" | 1.375" | 1-1/16UN |
1.875" | 1.75" | 1-1/16UN |
2.5" | 2.313" | 1-9/16UN |
Note. Other sizes are available upon request.
