Oil Downhole Tools Slickline Wireline Crossover
Xi'an Boban Oil Tools Co., Ltd.- After-sales Service：24,7
- Warranty：12 Months
- Manufacturing Process：CNC Milling
- Surface Treatment：Phosphating
- Operation Pressure：N,a
- Material：Cast Steel
Base Info
- Model NO.：Boban
- for Wire Size：0.108", 0.125"
- Connection：Un,Qls,Hdqrj
- Size：1.5", 1.875", 2.5"
- Transport Package：Wooden Case
- Specification：1.25"~2.5"
- Trademark：BOBAN & OEM
- Origin：China
- HS Code：8431431000
- Production Capacity：30 PCS Per Month
Description
Basic Info.
Model NO. Boban for Wire Size 0.108", 0.125" Connection Un,Qls,Hdqrj Size 1.5", 1.875", 2.5" Transport Package Wooden Case Specification 1.25"~2.5" Trademark BOBAN & OEM Origin China HS Code 8431431000 Production Capacity 30 PCS Per MonthProduct Description

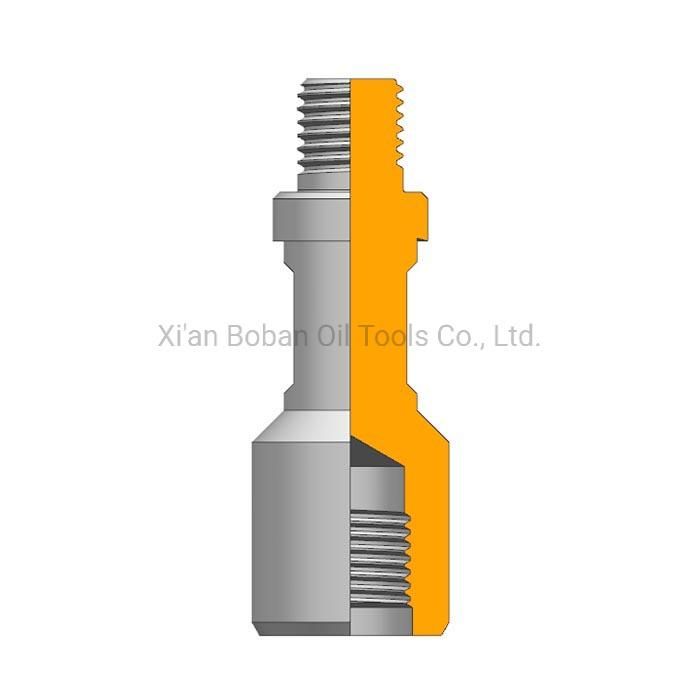

Oilfield Downhole Tools Slickline Wireline CrossoverI. IntroductionWireline crossover is a wireline tool string adapter designed to connect two tool string items with incompatible threads. The top thread of wireline crossover is male thread (or quick male joint) with standard fishing neck; the bottom has male thread or female thread (or quick female joint), which is determined by the type of bottom connecting tool.
BOBAN series slickline tools are available for UN, QLS and HDQRJ connection.
II. General Technical Parameters
| O.D | F.N. | Connectio |
| 1.187" | 1.187" | 15/16UN |
| 1.187" | 1.187" | 3/4-16UN |
| 1.375" | 1.375" | 15/16UN |
| 1.375" | 1.375" | 3/4-16UN |
| 1.375" | 1.375" | 1-1/16UN |
| 1.75" | 1.75" | 15/16UN |
| 1.75" | 1.75" | 1-1/16UN |
| 2.313" | 2.313" | 1-1/16UN |
| 2.313" | 2.313" | 1-9/16UN |
Note. Other sizes are available upon request.
