• Model NO.：1308
• Size：1308--1916
• Surface：Smooth
• Transport Package：Box
• Specification：A
• Trademark：HX
• Origin：Henan China
• HS Code：4113960213
• Production Capacity：5000PCS

Basic Info.

Model NO. 1308 Size 1308--1916 Surface Smooth Transport Package Box Specification A Trademark HX Origin Henan China HS Code 4113960213 Production Capacity 5000PCS

Product Description

Introduction

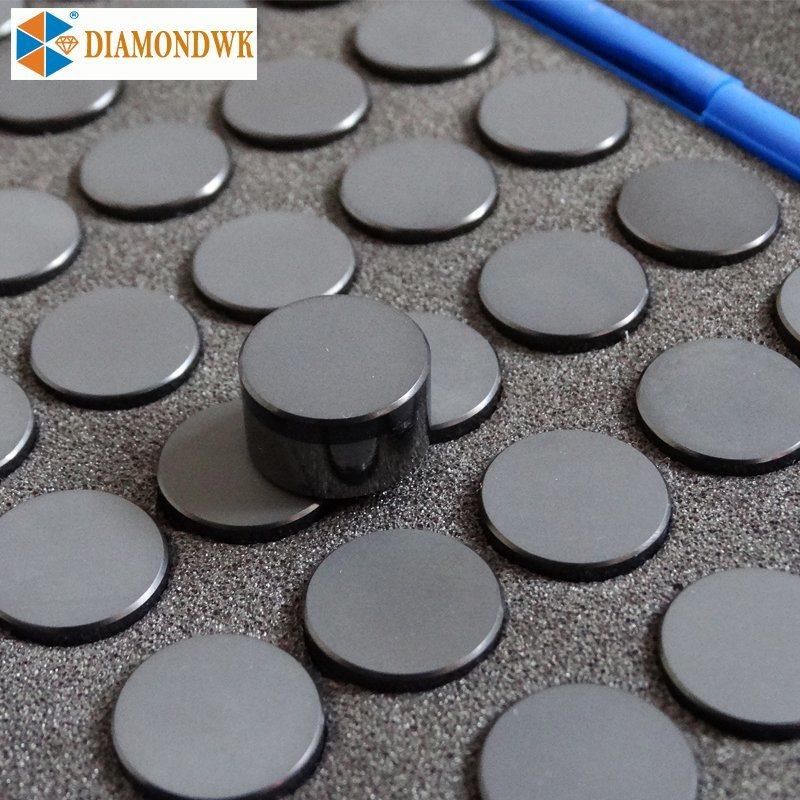

PDC bits uses PDC as main cutting components, with the excellent wear-ability and impact toughness of the PDC.
It has a long useful life, high-efficiency, and good cost performance.
PDC bit is mainly used for drilling soft and big drainage.
Advantages
1) With feature of high working efficiency, smooth surface
2) Advanced technics and strict process control
4) Long lifespan and stable performance
5) Competitive price and superior quality
6) Excellent service


All of our business is carried out in full compliance with the ISO9001 Certification.
Please contact us if you would like any further information.

Product Number	Diameter (D)(mm)	Height (T) (mm)	Diamond Thickness (t) (mm)	Diamond Chamfer (mm)
1308	13.44±0.03	8.00±0.10	2.30±0.20	0.30±0.10
1313	13.44±0.03	13.20±0.10	2.30±0.20	0.30±0.10
1608	15.88/16.00±0.03	8.00±0.10	2.30±0.20	0.30±0.10
1613	15.88/16.00±0.03	13.20±0.10	2.30±0.20	0.30±0.10
1908	19.05±0.05	8.00±0.10	2.30±0.20	0.30±0.10
1913	19.05±0.05	13.20±0.10	2.30±0.20	0.30±0.10
1916	19.05±0.05	16.31±0.10	2.30±0.20	0.30±0.10
