• Model NO.：All
• Orgin：Hebei
• Type：Bladder, Stabilizer, Stablizer Plate, Washer, Bolt
• Transport Package：Wooden Package and Sea Shipment
• Trademark：XINHUAFA
• Origin：Cn
• HS Code：8413910000
• Production Capacity：50000 Sets,Per Year

Basic Info.

Model NO. All Orgin Hebei Type Bladder, Stabilizer, Stablizer Plate, Washer, Bolt Transport Package Wooden Package and Sea Shipment Trademark XINHUAFA Origin Cn HS Code 8413910000 Production Capacity 50000 Sets/Per Year

Product Description

API standard petroleum machinery parts/bladder




Product introduction:

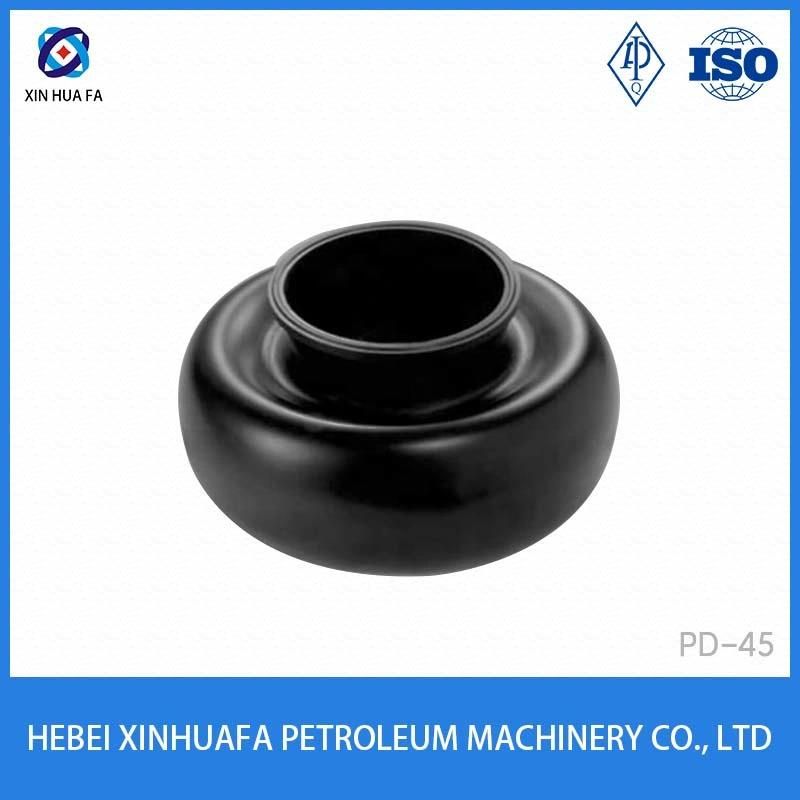

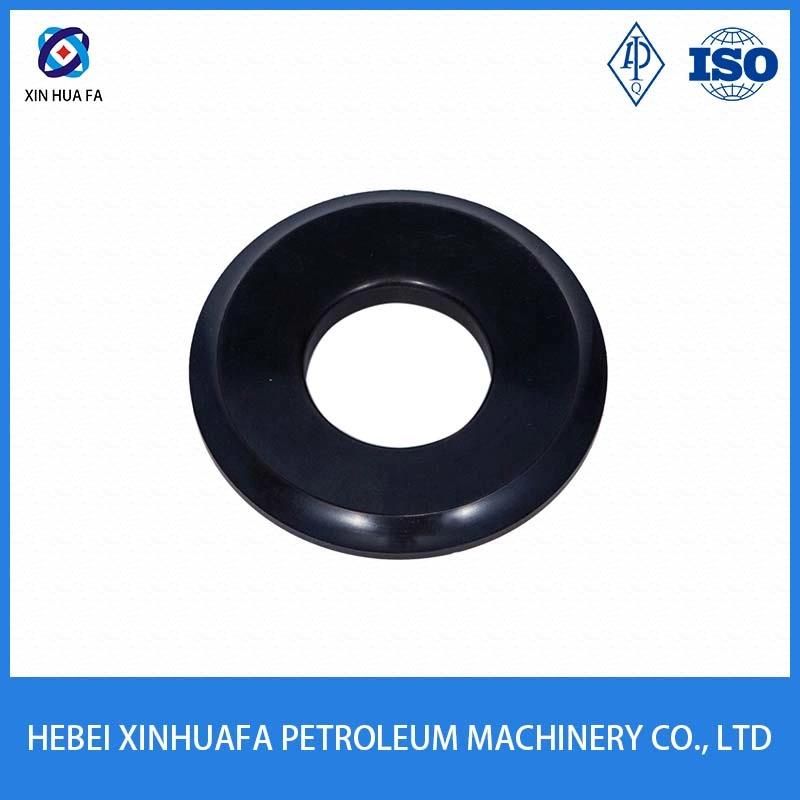

HNBR rubber bladder is composed of rubber pulsation bladder,rubber balance plate and pressure plate bolt, it can reduce the drilling pump pressure fluctuations of instantaneous displacement change;
Make the pump pressure smoothly, protect equipment from damage caused by severe vibration.
the product is also used as stabilizer and vibration absorber for air pump.
 Filled with nitrogen in the air or inert gas, in the absence of them,air can replace.But oxygen or combustible gas is forbidden.
Inflation pressure is 20% ~ 30% of the maximum working pressure. The advanced filling pressure is 2.0-2.5 MPa.

Model	Bottom O/D mm	Upper O/D mm	Upper I/D mm	H mm	Lip Thickness mm
F1300/1600(KB-75)	530	279	240	378	16
3NB-1000/1300(3NB)	590	314	280	286	23
F500/800/1000(KB-45)	445	235	196	332	16
SL-1300A	465	270	240	250	21
600	530	300	260	350	30
KB-25	368	203	162	297	15
350	350	216	190	250	20



Main Features

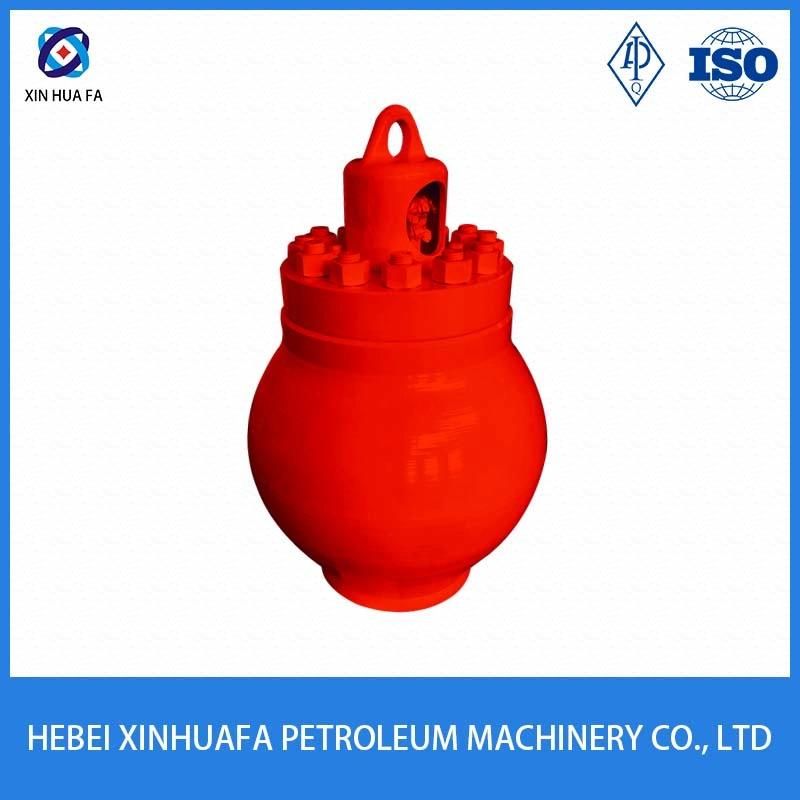

Air Rubber Capsule/Pulsation Dampener Bladder/Rubber Air Bladder for Mud Pump
1) Simple structure in linear type, easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine.

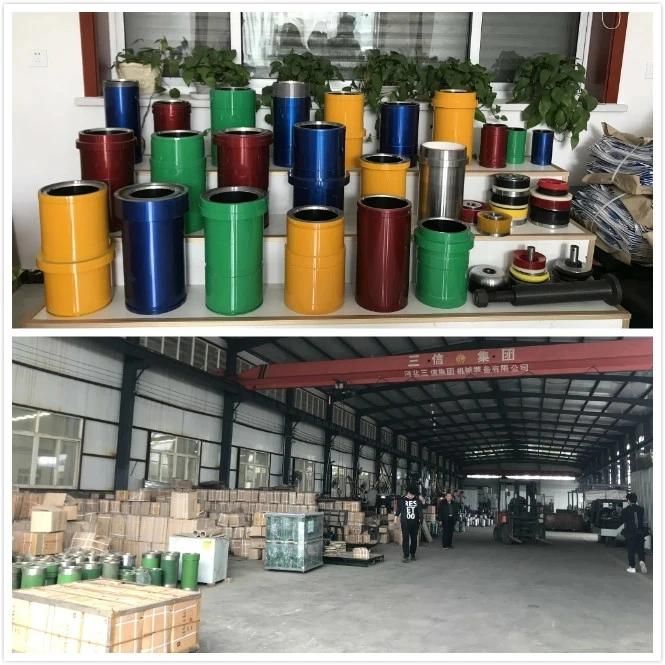

Company profile

     We are professional manufacturer and exporter of Mud Pump & Parts for 20 years. And we can supply you whole set on flat which suitable for oilfields in any worse environment outside. All are tested and can work well stable without monitoring. Parts also can be supplied to all pumps. All items are manufactured to API 7K quality standards.

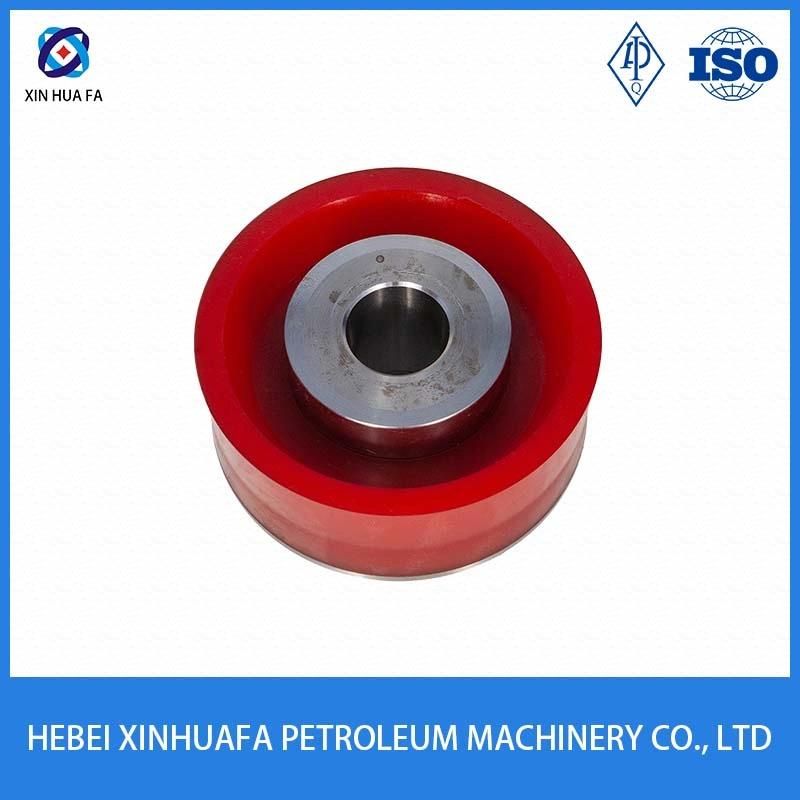

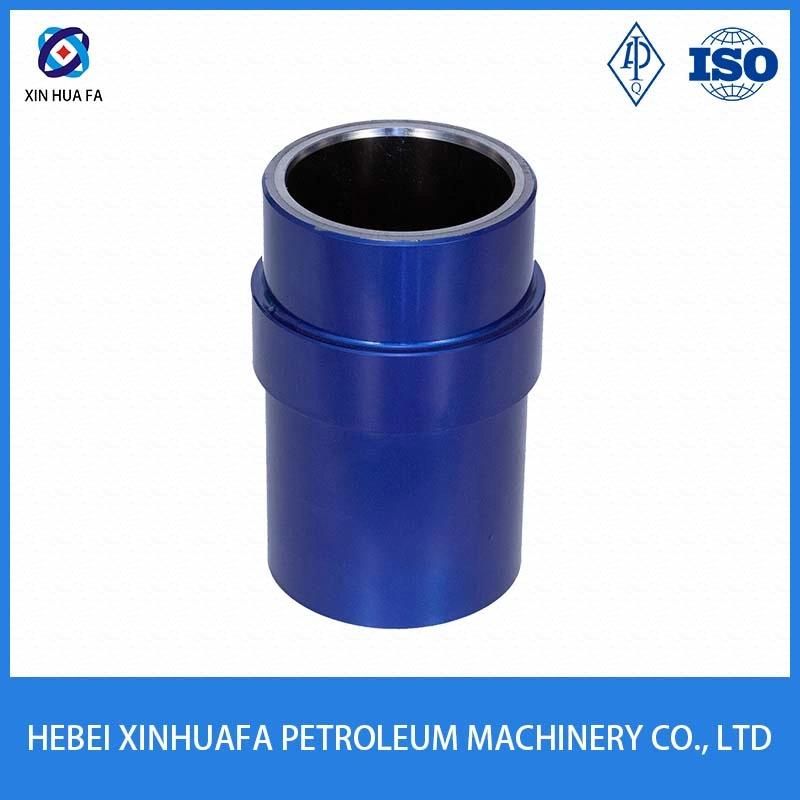

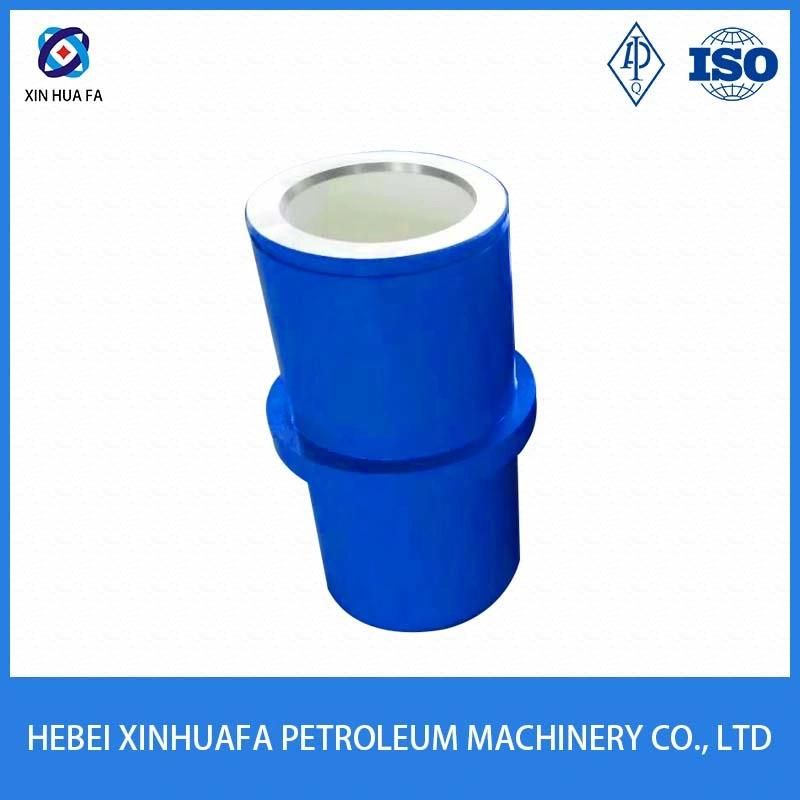

   We supply mud pump spare parts like mud pump liner including zirconia ceramic liner and high chrome bimetallic liner, Mono-metal Liner, fluid end module, valve and  seats, piston, piston rod, pony rod etc. parts for mud pump, we can also customize and machine as your drawing.
  We may also can manufacture and deliver ceramic liners of customized size. Due to variation of pump models, each owners recommended to offer copy of liner drawings of the original pumps  liners
