• Model NO.：Hammer Union
• Trademark：WS
• Origin：China
• HS Code：843143
• Production Capacity：1000sets,Year

Basic Info.

Model NO. Hammer Union Trademark WS Origin China HS Code 843143 Production Capacity 1000sets/Year

Product Description

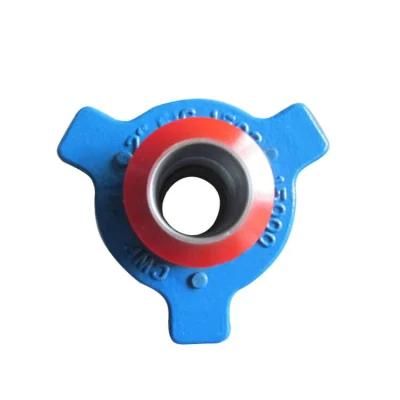

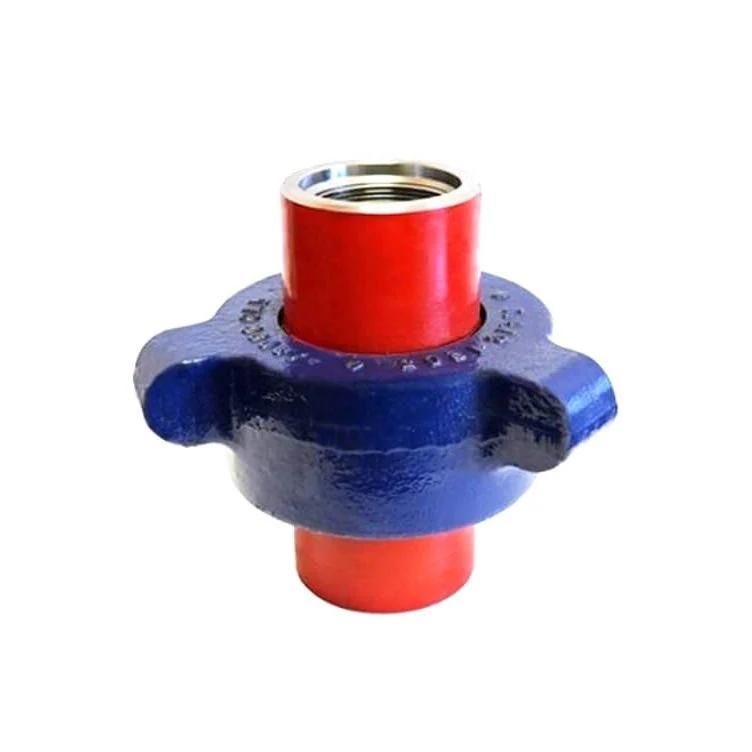

Hammer Unions are high-pressure threaded or welded connections with two halves a threaded female half and a wing male half with swivel nut that fit together and seal upon turning and then hammering the nut half together with the threaded half. Weco-style hammer unions come in sizes from 1" up to 10" and in pressures from 1,000 psi up to 15,000 psi. These type of hammer unions are commonly used in oilfield and industrial applications to seal two pieces of pipe or hose together by making a connection via threads or welds.

 Hammer Unions can be used for cementing trucks, oil field applications, for quick connection on tank trucks and rail cars carrying of LPG, LNG, CNG, etc., all kinds of manifolds and other high pressure equipment and pipes. Hammer Unions have good mechanical performance and sealing property. Especially, they can operate under the bad weather condition. They can be assembled, fixed and changed easily and conveniently. They are very easy to use as they are self-aligning, and do not require any special tools. It takes some seconds as compared to several minutes required with flanged connection. Hence in case of railway wagon loading, where large numbers of connections are to be made in each loading operation.

Hammer unions come in N.P.T. threaded-style and welded-style and are made of heavy duty steel and long lasting use. Hammer unions can also be treated for use with sour gas H2S service upon request.

Main Types:
Hammer Union type mainly consists of Figure50, Figure100, Figure200, Figure206, Figure207, Figure400, Figure600, Figure602, Figure1002, Figure1002 and Figure1502,etc.
