• Model NO.：All size
• Transport Package：Standard Export Packing
• Specification：customizable
• Trademark：Lake
• Origin：China
• Production Capacity：5000PCS,Month

Basic Info.

Model NO. All size Transport Package Standard Export Packing Specification customizable Trademark Lake Origin China Production Capacity 5000PCS/Month

Product Description

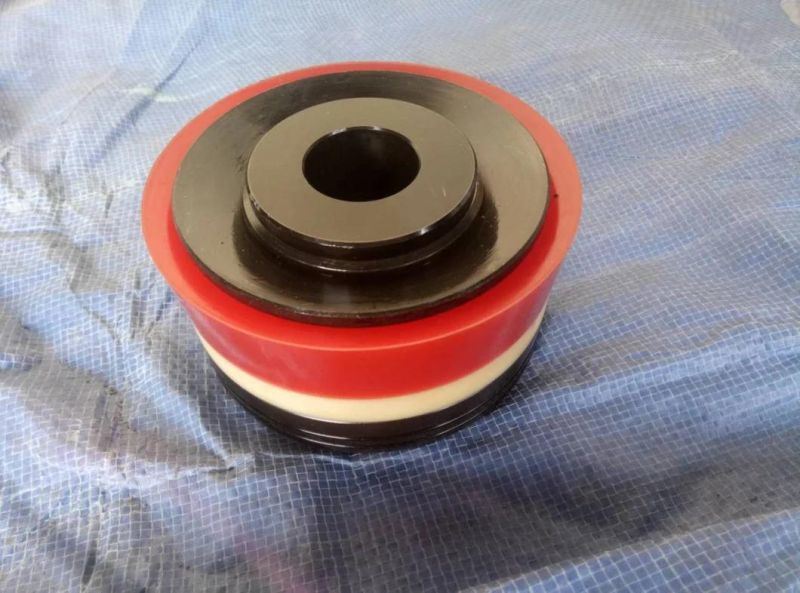

Oilfield bonded piston assy /PU NBR Piston Rubber Piston Assembly for PZ-8 Mud Pump



Product Description

Oilfield bonded piston assy /PU NBR Piston Rubber Piston Assembly for PZ-8 Mud Pump



Piston assembly is the major part of the mud pump fluid end. The discharge pressure of mud pump is generated by the up-and-down motion of the piston in the cylinder.
Our liners can be used in various drilling operation conditions. Double metal liner coat used in forging steel production, inner the coat of premium liners is made from forged blank. Endotheca is made of the centrifugal casting high chromium materials, and the inner sleeve reach HB285-330 after normalizing. Honing roughness can reach more than Ra0.8 after grinding. Our product has the characteristics of the wear resistance, corrosion resistance,high precision and long service life. Our products can be fitted to all souts of conditions.

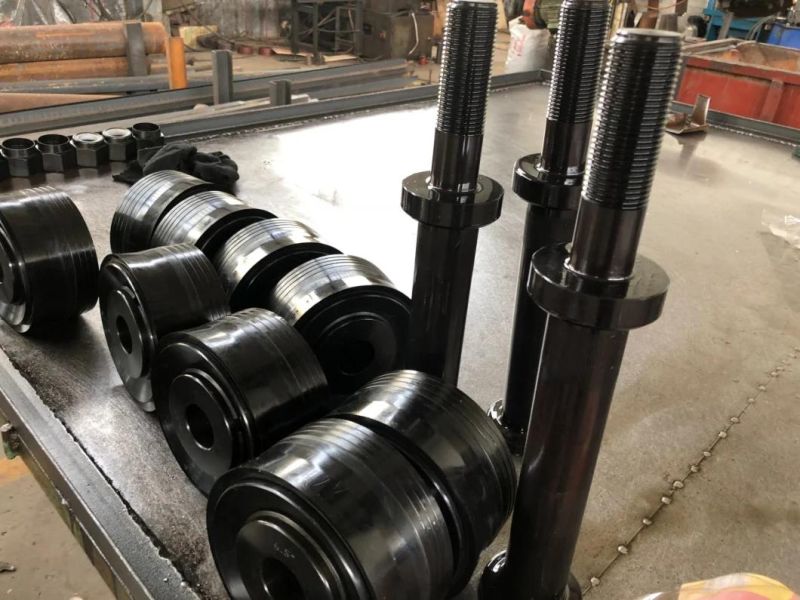

Piston assembly is the expendable parts at the drilling pump hydraulic system, and it is one of the biggest wearing parts of drilling work.

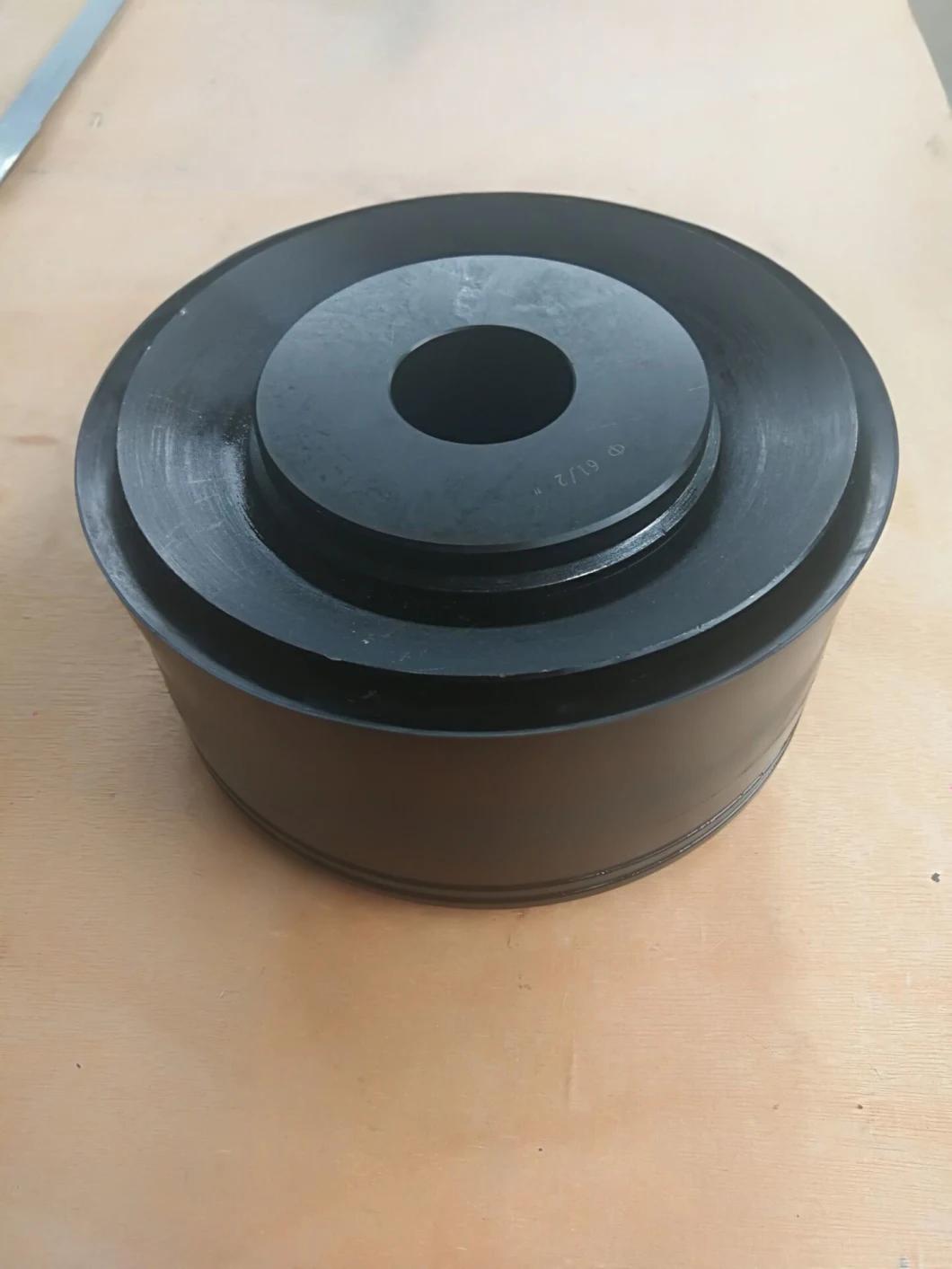

The piston core is made of 42CrMo.

Lake Petro can supply F series,3NB series,9-P-100/13-P-130/12-P-160 series, PZ7/8/9 series of drilling pump piston assembly metric (inch) with various sizes.

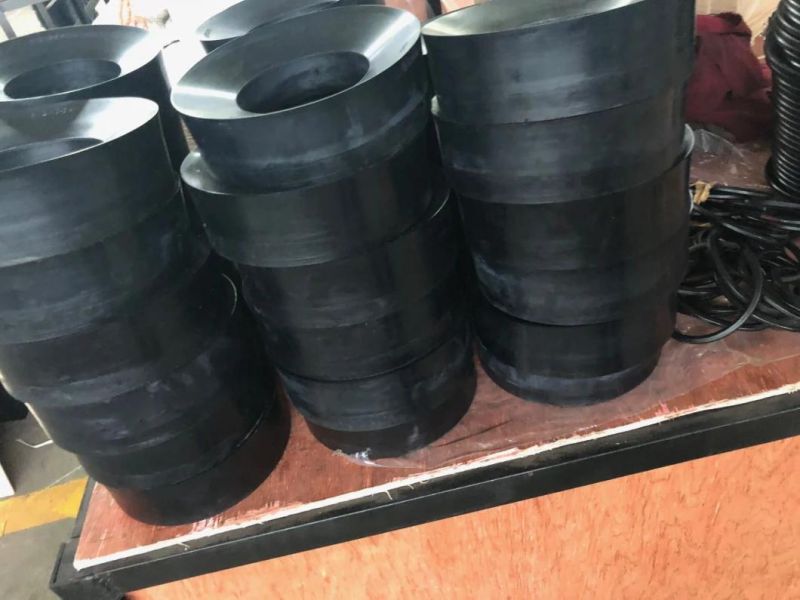

The piston rubber is also called the piston cup, its the expendable parts at the drilling pump hydraulic system, and it is one of the biggest wearing parts of drilling work.

The piston rubber is made of rubber vulcanization. The material of ordinary piston rubber is NBR. But if you use the PU can enlarge the work temperature range.





API 7K Mud Pump Parts:

Lake Petro can supply various mud pump expendable parts, including power end assembly, fluid end assembly and its spare parts, which can be easily matched & exchanged with some international famous mud pump brand, such asparts for 3NB series Pump, F series Pump, PZ series Pump, HBRS Pump, BOMCO Pump, EMSCO Pump, NOV P Series Pump, IDECO Pump, etc.



Mud pump fluid end parts include:

A. Module

B. Liner

    a) Ceramic liner

    b)Bi-metal liner

    c)High frequency quenching cylinder liner

    d)Cr-plated cylinder liner

    e)Liner seal

C. Valve body & valve seat

    a)solid forged thru-hole valve body & valve seat

    b)friction welding thru-hole valve body & valve seat

    c)double support with four or three ribs, valve body & valve seat

    d)duplex single-acting valve body & valve seat

    e)BOMCO, Lanshi, Lanshi NOV pump, valve body & valve seat

    f)Valve Rubber

    g)Valve Spring

    h)Valve Seat Grab & Gripper Head

D. Intermediate rod, piston rod, extension rod, pull rod, clamp

    a)intermediate rod

    b)piston rod, extension rod

    c)duplex pump pull rod

    d)clamp

E. Piston

    a)steel core

    b)piston rubber

    c)pressing plate, clamp spring

F. Other mud pump fluid end fittings, such as flange, valve bonnet, bonnet press barrel, valve guide, etc.



Mud pump power end parts include:

Crankshaft, gear ring, connecting rod, bearing and main shaft, etc.



High Pressure Parts include:

Discharge End Part of Mud Pump, include Pulsation Dampener, Discharge Manifold, Valve, 5 Ways



GARDNER DENVER:PZ-7, PZ-8, PZ-9, PZ-10, PZ-11

IDECO:T-500, T-800, T-1000, T-1300, T-1600

NATIONAL:7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-200, 14-P-220, K-700, K-700A, K-500, K-500A

OILWELL:A-350PT, A-560PT, A-600PT, A-850PT, A-1100P, A-1400PT, A-1700PT

EMSCO:F-500, F-800, F-1000, F1300, F1600, FB-1300, FB-1600, D-375, D-700, D225

LANSHI:3NB-1300C, 3NB-1000, 3NB-1000C, 3NB-800

QINGZHOU:SL3NB-1300A, QZ-1000, QZ-500, QZ-350, QZ800, SL3NB-1600

RUSSIAN:8T-650, UNBT-600, UNBT-950, UNBT-1180L, UNBT-950A, UBT-400, BT-600, UB-590, UNB-600, 8T310, 8T650-01

Product Overviews

Company Information
Lake Petro company is a professional supplier of various oilfield equipment, including oil drilling and service equipment,oil production equipment,OCTG ,wellhead & downhole tools and spare parts with API certification. our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions). Lake Petro company has become VIP (assigned) supplier and built strategic partnership with some coutries' national petroleum companies.
FAQ

How to order?

Please send us your inquiry with detail item description or with Model number.

If there is no packing demand we take it as our regular exported standard packing.

We will offer you an order form for filling. We will recommend you the most suitable model according to information you offered.

You send ud your detail requirement, we provide quotation to you.



Can I expect a quality products?

All the production and processing are strictly according to ISO 9001:2008 and API standard. At the same time, mature production technology ensuring the quality satisfy international request. We also welcome the third party inspection, such as BV, SGS and TUV.



The information you may like to know before Payment:



1. Methods of Payment:

T/T (Telegraphic Transfer) or L/C at sight



2. Shipping way

Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air

Bulk order: we suggest by air or by sea.



3. Quality Control

We have our own experienced QC.

There will be strict inspection and testing for every order before shipping out.
