• Model NO.：5LZ244x7.0-5
• Connected Thread：6 5,8 Reg
• Lobe：5:6
• Stage：5
• Flow Rate：3650-3300 Lpm
• Rotory Speed：64-1295 Rpm
• Max Pressure Loss：5.65 MPa
• Max Torgue：16092 N.M
• Max Bearing Presure：330 Kn
• Transport Package：Sdandard Packing for Downhole Motor
• Specification：89mm
• Trademark：JW
• Origin：China
• HS Code：84304900
• Production Capacity：300piece,Month

Hole Size

Input

Flow

Rate

Pressure

Loss

Bit

Speed

Working

Torque

Delay

Dynamic

Torque

Output

Power

Max

Drilling

Weight

Joint Thread

Length

Unit

mm

In

L/S

Mpa

r/min

N.m

N.m

KW

KN

In

In

mm

5LZ73×7.0

83-121

3 1/4-4 3/4

2-4

3.2

80-160

615

1077

5.8-11.5

25

2 3/8REG

2 3/8REG

3423

9LZ89×7.0

105-143

4 1/8-5 5/8

3-8

3.2

147-392

504

882

8.64-23

30

2 7/8REG

2 7/8REG

2911

5LZ95×7.0

114-150

4 1/8-5 7/8

5-12

3.2

140-320

710

1240

10.5-25

40

2 7/8REG

2 7/8REG

3920

5LZ120×7.0

152-200

6-7 7/8

8-16

3.2

80-180

1850

3200

23-47

106

3 1/2REG

3 1/2REG

5039

5LZ165×7.0V

245-244

8 1/8-9 5/8

18-30

3.2

111-167

4440

7770

57.6-86.4

160

4 1/2REG

4 1/2REG

7408

5LZ165.5×7.0V

215-244

8 1/8-9 5/8

18-30

4.0

120-180

5135

8987

72-108

180

4 1/2REG

4 1/2REG

7748

5LZ172×7.0V

215-244

8 1/8-9 5/8

18-30

4.0

120-180

5135

8987

72-108

180

4 1/2REG

4 1/2REG

7391

5LZ172.5×7.0V

215-244

8 1/8-9 5/8

20-35

4.0

115-180

6452

11299

86.4-151.2

200

4 1/2REG

4 1/2REG

8031

7LZ172.5×7.0V

215-244

8 1/8-9 5/8

20-35

4.0

75-180

6527

11420

59.5-108.6

160

4 1/2REG

4 1/2REG

8631

5LZ185×7.0

215-244

8 1/8-9 5/8

20-35

4.0

184

5436

8154

80-140

240

4 1/2REG

6 1/2REG

8120

5LZ185.5×7.0

215-244

8 1/8-9 5/8

20-35

4.0

173

5939

8908

80-140

240

4 1/2REG

6 1/2REG

8120

5LZ197×7.0

244-311

9 1/8-12 5/8

20-40

3.2

61-122

14118

14118

57.6-115.2

240

5 1/2REG

6 5/8REG

7998

5LZ197.5×7.0

244-311

9 5/8-12 1/4

20-40

4.0

85-160

12640

12640

72-144

260

5 1/2REG

6 5/8REG

8598

7LZ203×7.0

244-311

9 5/8-12 1/4

20-40

3.2

70-155

12289

12289

57.6-126.7

240

5 1/2REG

6 5/8REG

7798

5LZ203.5×7.0

244-311

9 5/8-12 1/4

20-40

4.0

70-155

8778

15362

72-158.4

260

5 1/2REG

6 5/8REG

8598

5LZ244×7.0

311-445

12 1/2-17 1/2

50-75

3.2

91-136

15124

26468

144-216

360

6 5/8REG

7 5/8REG

8635

7LZ244.5×7.0

311-445

12 1/2-17 1/2

50-75

4.0

91-136

18905

33085

180-270

450

6 5/8REG

7 5/8REG

9235

Our Servce
1.Fast Delivery. Normally 7 days after your payment for general type . And aout 30days if no stock or special request

2. service before sale .

1) if you are the user of downhole motors ,our professional technicans will make sure the products we select for you are most applicative

2)if you are dealer ,we will offer the most competitive price and professional technic support to help you enlarge  your market .

3. Service after sale .We will track the use of  every mud we sell .if the performance can't meet  our comitment We will change or remend it for you freely .technics surport will help you use the motor smoothly

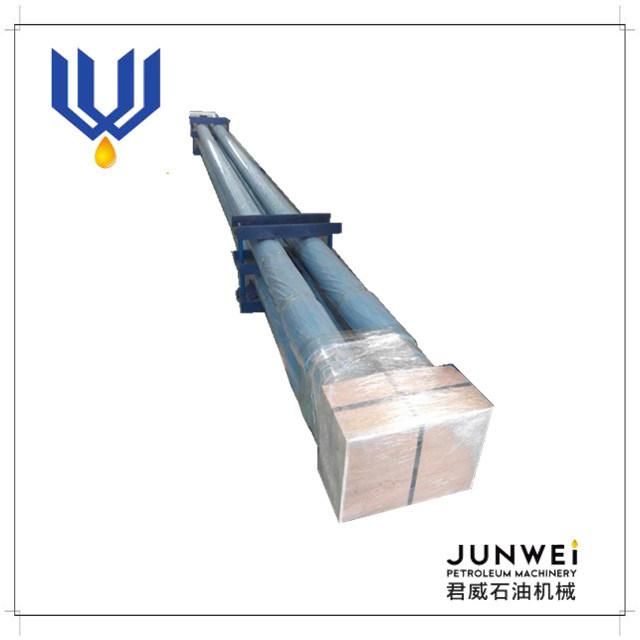

Packing of Downhole motor

Contact Us

ALL SIZE DOWNHOLE MOTOR AVAILABLE ,PLS CONTACT ME AS BELOW
