API Fmc Chiksan 1" - 4" High Pressure Swivel Joints with 1502 Hammer Union

Dongying Oilman Machinery Equipment Co., Ltd.
  • After-sales Service：Online Technical Support
  • Warranty：One Year
  • Manufacturing Process：Forging
  • Surface Treatment：Painting
  • Operation Pressure：Atmospheric Pressure
  • Material：Alloy

Base Info

  • Model NO.：Chiksan, FMC Type
  • Product Name：High Pressure Swivel Joints with 1502 Hammer Union
  • Working Pressure：2000psi~20000psi
  • Size：1" - 4"
  • Connection：Integral Union or Line Pipe Thread
  • Working Medium：Oil,Natural Gas and Gas Containing H2s,CO2
  • Transport Package：Export Packing
  • Specification：High Pressure Swivel Joint
  • Trademark：OilMan
  • Origin：China
  • HS Code：84314310
  • Production Capacity：1000 Pieces Per Month

Description

Basic Info.

Model NO. Chiksan, FMC Type Product Name High Pressure Swivel Joints with 1502 Hammer Union Working Pressure 2000psi~20000psi Size 1" - 4" Connection Integral Union or Line Pipe Thread Working Medium Oil,Natural Gas and Gas Containing H2s,CO2 Transport Package Export Packing Specification High Pressure Swivel Joint Trademark OilMan Origin China HS Code 84314310 Production Capacity 1000 Pieces Per Month

Product Description

API FMC Chiksan 1" - 4" High Pressure Swivel Joints with 1502 Hammer Union
 High Pressure Swivel Joint is made of high -strength alloy steel and through heat treatment,so that the rated working pressure intensity is ensured and the service life is prolonged.Our Swivel joint is equipped with a steel ball in hardened or bit,so it can rotate flexibly.Both ends can be connected with NPT threads or unions, applicable to various ways of pipe installation. Our Swivel Joints falls into 2 types: long radius and short Radius.

Features:
Easy maintenance: Our chiksan swivel joints are designed for easy assembly and disassembly. Repair kits are available if necessary.
Easy to replace: standard union connection allows for easy replacement
Structure and appearance: smooth, round bore design minimizes turbulence and pressure drop, long radius and stepped elbows extend durability and service life.

Specification:
1.Product name:Short Radius of the Elbow or Short Radius Swivel Joint
2.Pressure of work : 2000PSI to 20000PSI
3.Nominal Menstruation: 1" ~4"
4. End Connection: Fig 602, Fig 1002, Fig 1502, Fig 2202 or Line Pipe Thread

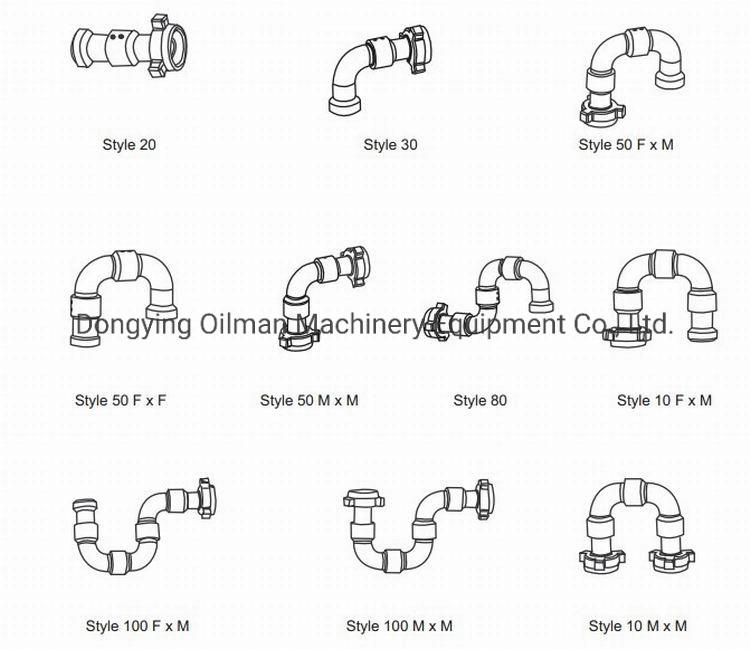

5. Style: 10, 20, 30, 40, 50, 60, 70, 80, 100
6.Working Temperature: -29degree ~121 Degree(PU grade)
7.Standard :API 16C &NACE MR0175

API Fmc Chiksan 1" - 4" High Pressure Swivel Joints with 1502 Hammer Union

DescriptionSpecificationModelEnd Connection
Short radius swivel joints1''x3500psi(25Mpa)
1"-1/2x6000psi(42Mpa)
1"-1/2x10000psi(70Mpa)
2"x6000psi(42Mpa)
2"x10000psi(70Mpa)		Style 10,50
Style 10,50
Style 10,50
Style 10,50
Style 10,50
 LP Female Thread
 LP Female Thread
 LP Female Thread
NPT Female Thread

 1-1/2"Long radius swivel joints 1"-1/2x10000psi(70Mpa)
1"-1/2x10000psi(70Mpa)		 Style 10
 Style 50		 LP Female
 LP Female
 2"Long radius swivel joints 2"x10000psi(70Mpa)
 2"x10000psi(70Mpa)
 2"x10000psi(70Mpa)
 2"x10000psi(70Mpa)
 2"x10000psi(70Mpa)
 2"x15000psi(105Mpa)
 2"x15000psi(105Mpa)
 2"x20000psi(140Mpa)		 Style 10,20,50
 Style 10,50
 Style 10,50
 Style 10,50,80,100
 Style 20,30,60
 Style 10,50,80,100
 Style 20,30,60
 Style 10,50
 		 LP or TBG Female
 MxF(Tr100x12.7)
 MxF(Tr100x12)
 MxF,MxM,FxF
 MxF(Tr/America) MxM
 MxF,MxM,FxF
 MxF(Tr/America)MxM
 MxF,MxM
 3"Long radius swivel joints 3"x10000psi(70Mpa)
 3"x10000psi(70Mpa)
 3"x10000psi(70Mpa)
 3"x15000psi(105Mpa)
 3"x15000psi(105Mpa)
3"x20000psi(140Mpa)		 Style 20,50
 Style 10,50,80,100
 Style 20,30,60
 Style 10,50,80,100
 Style 20,30,60
 Style 10,50		 Lp or TBG Female
 MxF,MxM,FxF
 MxF(Tr,America) MxM
 MxF,MxM,FxF
 MxF,MxM
 MxF,MxM

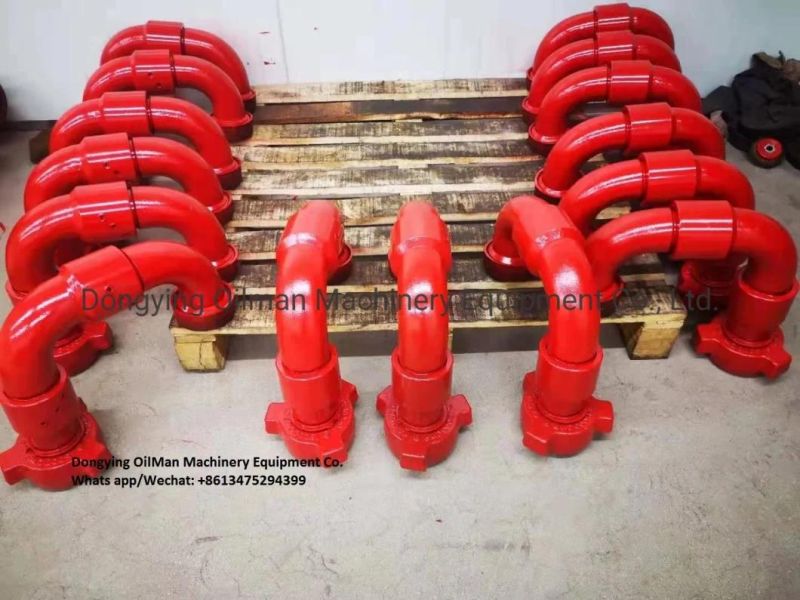

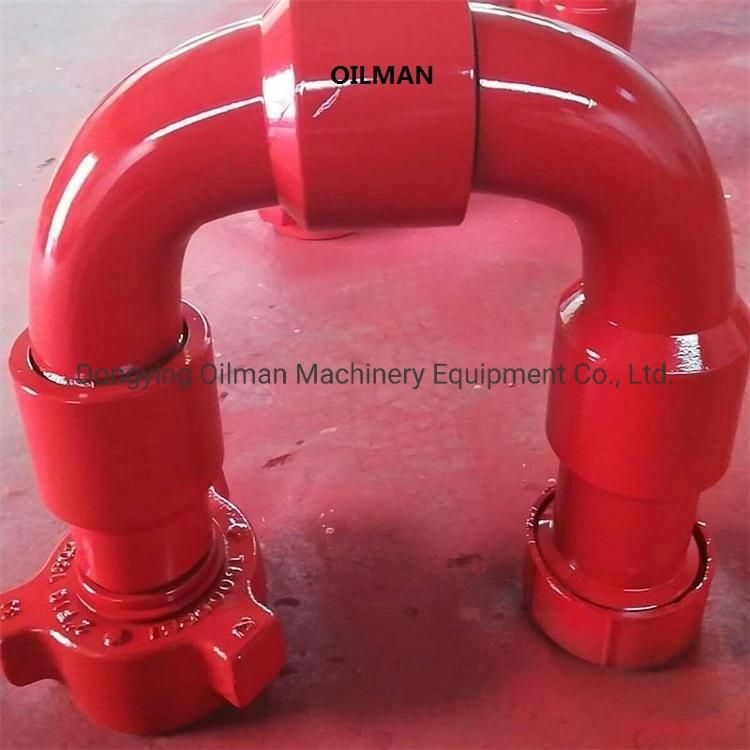

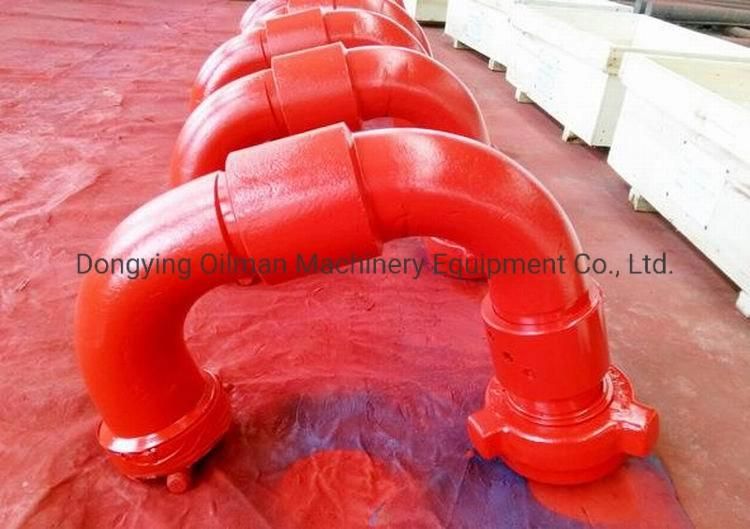

Swivel Joints Pictures:

API Fmc Chiksan 1" - 4" High Pressure Swivel Joints with 1502 Hammer UnionAPI Fmc Chiksan 1" - 4" High Pressure Swivel Joints with 1502 Hammer UnionAPI Fmc Chiksan 1" - 4" High Pressure Swivel Joints with 1502 Hammer Union

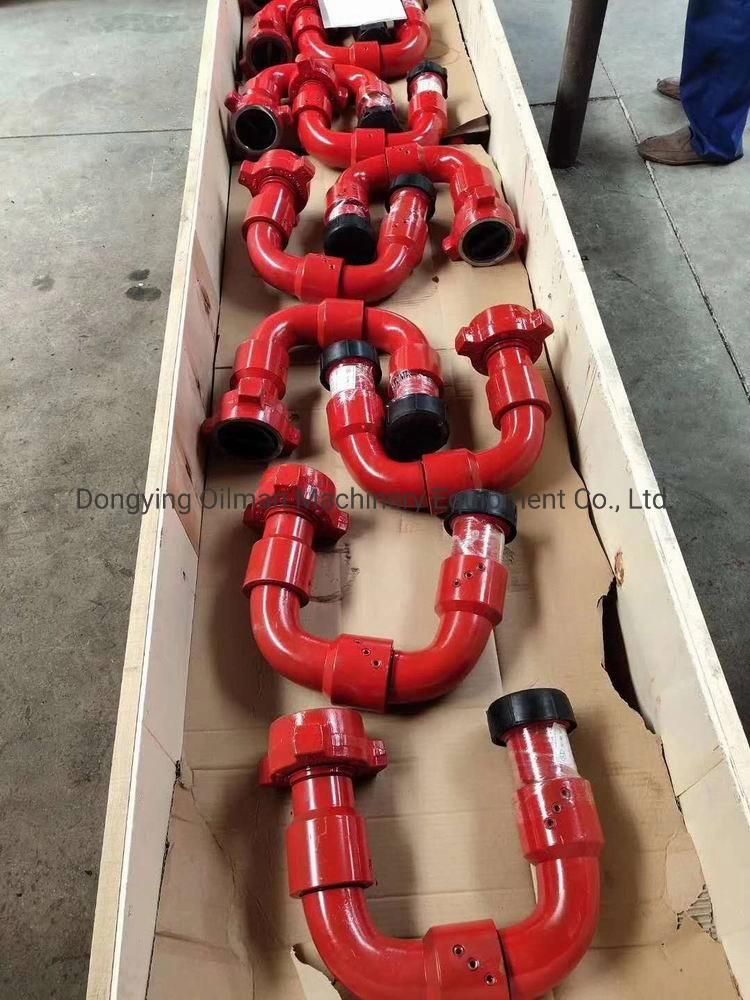

Packing & Delivery of Swivel Joints:

API Fmc Chiksan 1" - 4" High Pressure Swivel Joints with 1502 Hammer Union

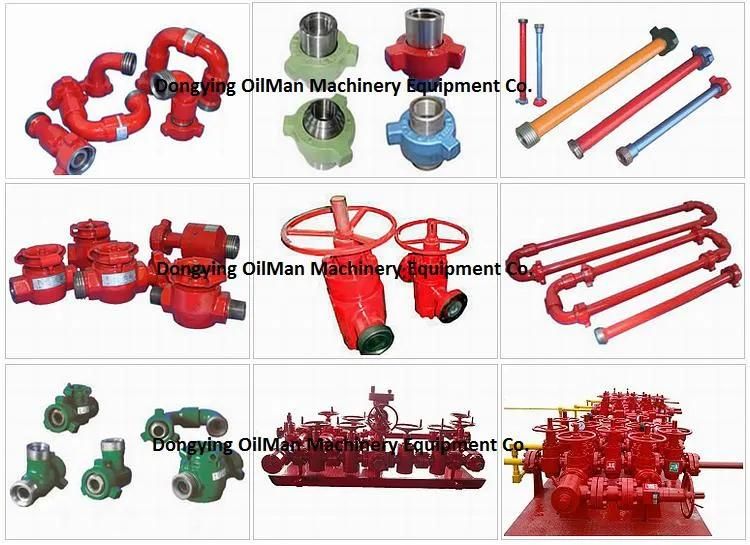

Related Products:
