• Model NO.：LQRQ-355
• Type：Mud Tank
• Product Name：Frac Tank
• Medium：Frac Liquid, Mud
• Raw Material：Steel
• Layer：Single Layer
• Thickness：4mm to 10mm
• Anti-Corrostion：Specialized Anti-Corrosion Treatment
• Logo：as Need
• Weight：as Specification
• Size：as Need
• Accessories：as Need
• Transport Package：Non
• Specification：10000L to 80000L
• Trademark：Luqiang
• Origin：China(Mainland)
• HS Code：73090000
• Production Capacity：500sets,Year

Basic Info.

Model NO. LQRQ-355 Type Mud Tank Product Name Frac Tank Medium Frac Liquid, Mud Raw Material Steel Layer Single Layer Thickness 4mm to 10mm Anti-Corrostion Specialized Anti-Corrosion Treatment Logo as Need Weight as Specification Size as Need Accessories as Need Transport Package Non Specification 10000L to 80000L Trademark Luqiang Origin China(Mainland) HS Code 73090000 Production Capacity 500sets/Year

Product Description

      500BBL Oilfield Mobile Storage Frac Tank Mud Tanks with tralier

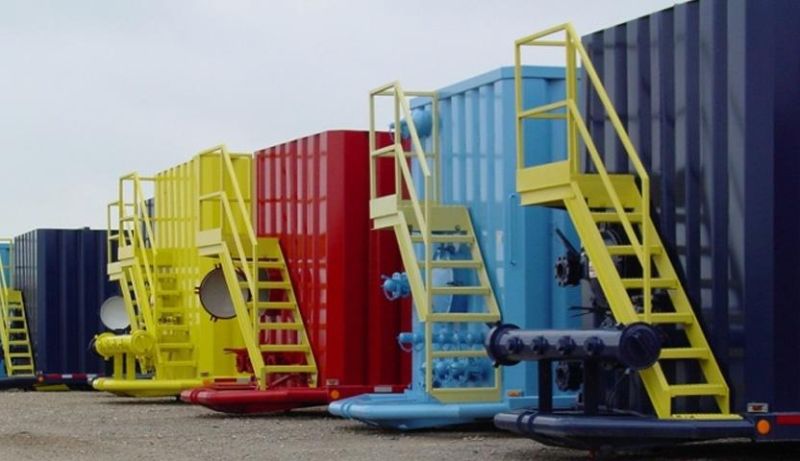

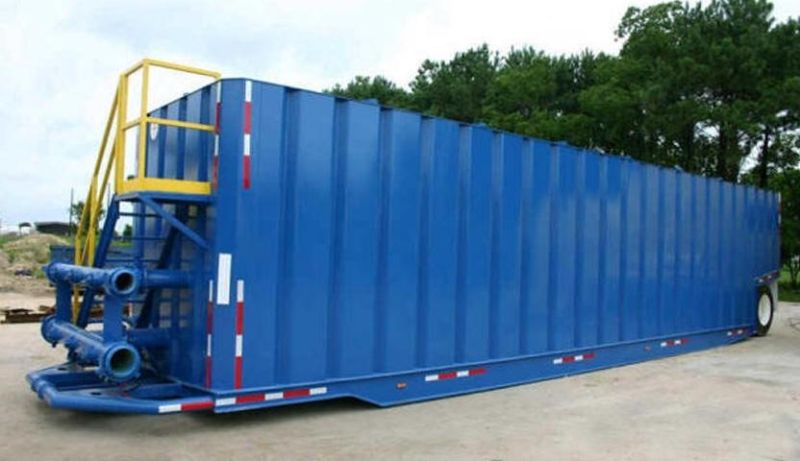

500 BBL MOBILE FRAC TANK


A:TANk
1,Capacity and compartments:80000L in total,1 compartment
2,Tank shape:bottom is V-style ,side plate is wavy,roof is flat
3,Material of barrel :   Q235Bcarbon steel,thickness is 5mm.
4,Shell cover:   the two end is wavy,thickness is 6mm
5,baffle:    wave style,thicknes is 4mm,500mm man hole in every peice,4 piece in total
B:PIPE AND COMPONENT
1,Manhole:   open style manhole in the middle of roof
2,Pipe:one inlet on the rear,8''outlet on the front with 4 unit of 4'' fig quick coupling
3,liquidometer:   assemble on the front
C:TANK ACCESSORIES
1,Top walkway:   galvanised steel net overspead on the middle roof  of tank
2,Side bumper:
3,Rear bumper:made of U-steel
4,Ladder:  assemble on the right side of middle of tank,made of steel tube
D:CHASSIS
1,Pin:     50# brand: JOST
2,Girder:   16Mn
3,Axle:   one axle,spring suspention,brand :FUWA 13T
4,Rim and tire: 4 sets of 12R22.5 (FENGSHEN BRAND)with for sets of ZHENGXING steel rims
5,Electric wire:   24V electric system,seven pinhole socket assemble on the front
6,ELectric landing gear:2 sets on the both side of the tankers.electric power from bttery on the tractor.
E:SURFACE AND INSIDE COATING
1,KIND OF COATING:   Two primer,two finish paint
2,Color of tanker: depend on customer's requirement
3,The anti-rust inside paint:  inside epoxy painting

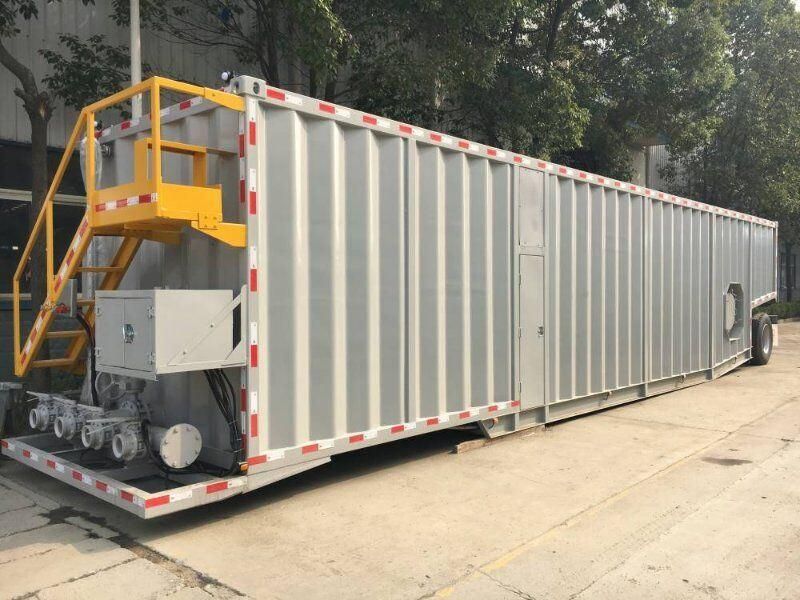

80000L skid-mounted frac tank ,facture tanker,500BBL frac water tank


1, Fabrication of a 600mm manhole at the rear end of the tank.
2, Anti-slip walkways to be provided on top of the tanks.
3, Sand blasting of the tanks prior to painting. Internal surface of the tank would be painted corrosion resistant white, external light grey after suitable corrosion resistant primer. Ladders and walkways would be safety yellow.
4, Relocation of the jacking hydraulic power pack from the top of the tank to below the ladder
5, Option for a level gauge on the front of the tank.








Character


 frac tank  has so many advantage ,you can know it well by the following describtion

1.Safety explosion-proof: flame-proof explosion-proof effect is good, heat radiation.
2.Safety and high reliability: the use of barrier explosion-proof device.
3.Without additional auxiliary equipment, low operating costs.
4.Fully functional: can be two or more different kinds of oil, and can be configured to meet the different oil filling methods. With a comprehensive accident prevention and monitoring system.
5.Easy to install, build time just 1 to 3 days.
6.Small footprint, removable.
7.Environmental protection and energy conservation.
8.In addition to static electricity.
9.Maintenance is simple.

Company Introduction:
Luqiang Energy Equipment Co.,Ltd offers fuel storage tanks since 2004.It is a leading manufacturer located in Taian,Shandong.No matter what you need  all kinds of mobile fuel stations ,storage tank in carbon steel ,stainless or aluminum ,single or frac tank or other liquids we all can meet your requirements.


Certifications:
Our company has A1,A2 design license and manufacturing license of pressure vessel and issued by  the State General Administration,and we have passed ISO 9001and America UL  142,1746 test and  get the regarding certificate.Our frac tank had exported Australia and gained great reputations.

Cooperation partner

  We established good relationship with Shell company Petro China,Sinopec,CNOOC,World Food  Programmer and petroleum companies in Asia ,middle East,Australia and Africa market. frac tank is popular all around the tanks.
