• Model NO.：All Model
• Outer Sleeve：Forged
• Inner Sleeve：High Chromed
• Main Products：Liner
• Tensile Strength：>610MPa
• Yield Strength：>450MPa
• Name：Zirconia Liner
• Theory：Centrifugal Pump
• Transport Package：Pallet
• Specification：4-1,2"to7-1,2"
• Trademark：Lake
• Origin：China
• Production Capacity：200PCS,Month

Basic Info.

Model NO. All Model Outer Sleeve Forged Inner Sleeve High Chromed Main Products Liner Tensile Strength >610MPa Yield Strength >450MPa Name Zirconia Liner Theory Centrifugal Pump Transport Package Pallet Specification 4-1/2"to7-1/2" Trademark Lake Origin China Production Capacity 200PCS/Month

Product Description

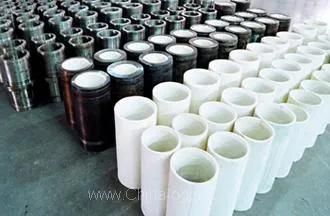

Liner is divided into Ceramic Sleeve Liner, Double Metal Liner, Carburization & quenching Liner and Chrome-plated Liner

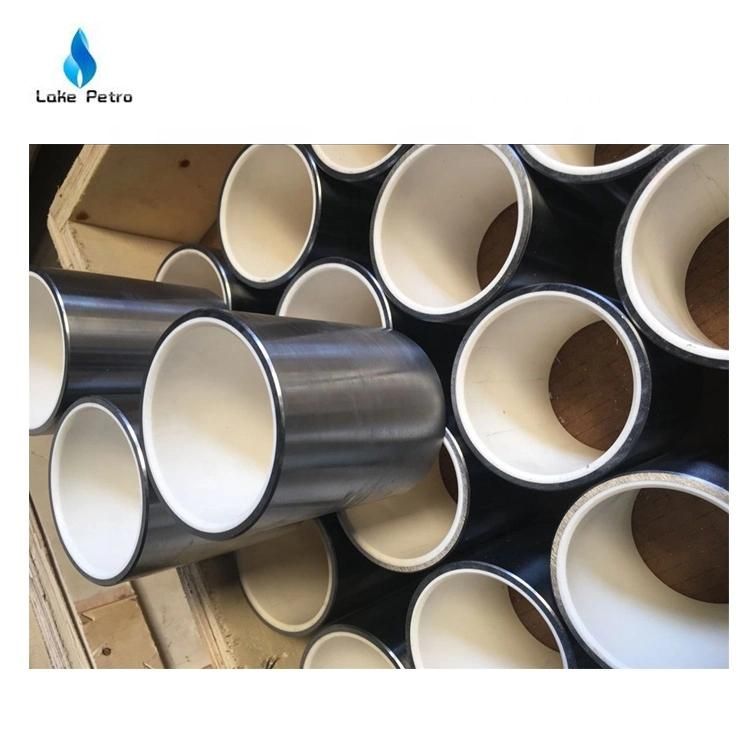

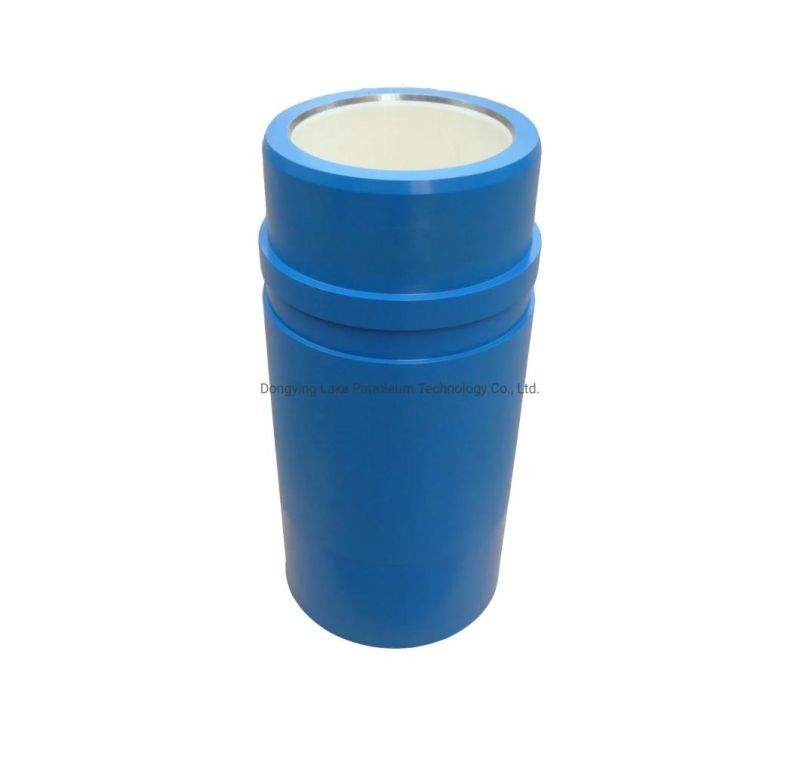

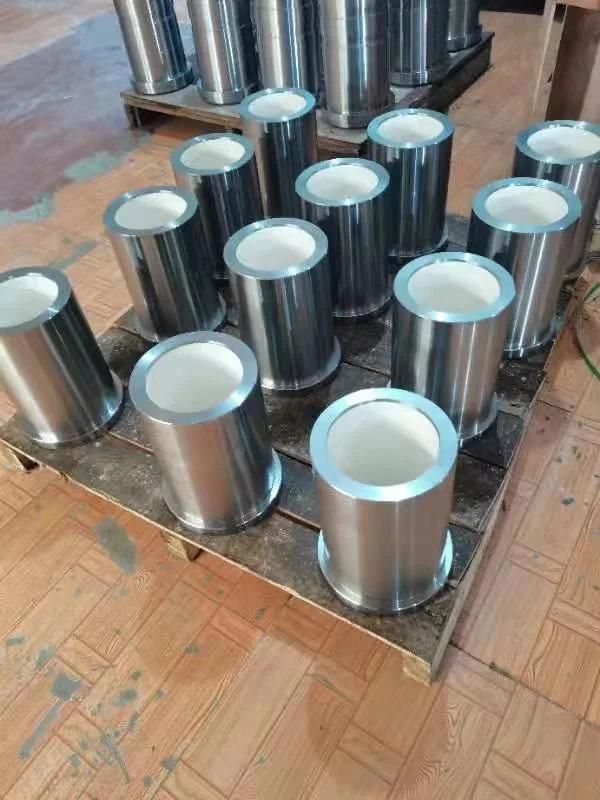

Ceramic Sleeve Liner
Material of sleeve is Zirconia and its shell is 45#(ASTM1045)forged steel.

No	Properties	Units	Values	Remark
1	Composition	%	Y2O3+ZrO2≥99.5%	ZrO2≥95%
2	Density	g/cm³	5.95-6.05
3	Flexural Strength	Mpa	800-1200
4	Tensile Strength	Mpa	500-600
5	Weibull Modulus	M	>30
6	Compressive Strength	Mpa	>1950
7	Modulus of Elasticity	Gpa	200
8	Poisson `s Ratio		0.31
9	Hardness	HV0.3kg/mm²	>1120	HB≥87
10	Fracture Toughness	Mpam¹/²	8-10
11	Average Grain Size	μm	0.4-0.6
12	Thermal Conductivity	W/m*K	3.08

Double Metal Liner
Material for shell is forged steel pipe or seamless steel tube, 45#(ASTM1045). Normalizing hardness degree is 160BHN(HB180-200), percentage elongation 17%(δ>17%),tensile strength not less than 85000PSI(σb>610Mpa), Flexural Strength not less than 60000PSI(σb>450MPa)and shell with HP.

Sleeve material is high chrome centrifugal, which is chrome containing 26-28%, its thickness 0.25~0.35 inch (6.35 -8.89mm. its standard thickness is 7mm and special thickness reduced has 3 kinds, 4mm, 4.5mm & 5mm. Normally, it means standard thickness if there is no special explanation ), quenching hardness HRC59-67.

Its Chemical Composition Table is as following

Element	C	Cr	Si	Mn	Mo	S,P
Content	2.8%-3.1%	26%-28%	0.6%-0.9%	0.5%-1%	0.5%-0.8%	<0.05%

Some special chemical composition will be adopted to use on the sleeve according to the requirement of the client or special working conditions
