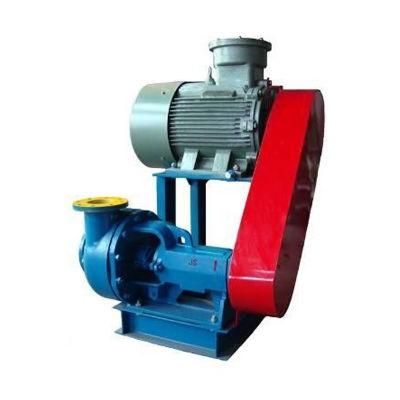

Jqb-120 Series Shearing Pump for Oilfield

Shandong Beyond Petroleum Equipment Co., Ltd.

After-sales Service：Video Technical Support, Online Support, Spare PAR
Warranty：1 Year
Certification：CE, ISO 9001:2000, ISO 9001:2008
Mesh Shape：Circular
Layer：Single Layer
Material：Steel

Base Info

Model NO.：Jqb-120
Type：High Frequency
Model：Jqb-120
Discharge Capacity：120 M3,H
Pumping Head：45 M
Shearing Efficiency：95%
Motor Power：55 Kw
Inlet Diameter：6"
Outlet Diameter：5"
Transport Package：Wood Box
Specification：1065*995*1470mm
Trademark：Beyond
Origin：China
Production Capacity：100PCS,Month

Description

JQB Series Shearing PumpModelJQB-80JQB-100JQB-120Discharge capacity80 m³/h100 m³/h120m³/hPumping head36 m40 m45mShearing efficiency95%95%95%Motor power37 kW45 kW55 kWImpeller speed2200rpm2200rpm2200rpmInlet diameter6"6"6"Outlet diameter5"5"5"Weight700 kg760 kg850 kgOverall dimension1030×995×1440mm1030×995×1440mm1065×995×1470mm
Jqb-120 Series Shearing Pump for Oilfield

Jqb-120 Series Shearing Pump for Oilfield

Jqb-120 Series Shearing Pump for Oilfield

Jqb-120 Series Shearing Pump for Oilfield

Jqb-120 Series Shearing Pump for Oilfield

Category

Mud Circulating System

Oilfield Shale Shaker

Other Petroleum Equipments & Machinery

Petroleum Equipment & Machinery

Petroleum Machinery Parts

Recommended

Jqb-100 Series Shearing Pump for Oilfield
JQB Series Shearing PumpModelJQB-80JQB-100JQB-120Discharge capacity80 m3/h100 m3/h120m3/hPumping head36 m40 m45mShearing efficiency95%95%95%Motor power37 kW45 kW55 kWImpeller speed2200rpm2200rpm2200rpmInlet diameter6"6"6"Outlet diameter5"5"5"Weight700 kg760 kg850 kgOver

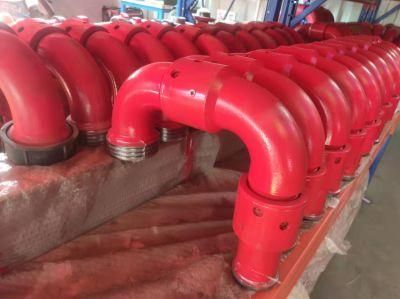

High Quality Fmc Chiksan Long Radius Swivel Joint for Oilfield
Overview Product DescriptionShortradiusswiveljoints1''x3500psi(25Mpa)Style10,501"-1/2x6000psi(42Mpa)Style10,50LPFemaleThread1"-1/2x10000psi(70Mpa)Style10,50LPFemaleThread2"x6000psi(42Mpa)Style10,50LPFemaleThread2"x10000psi(70Mpa)Style10,501-1/2"Longradiuss
PDC Diamond Drill Bits High-Quality for Petroleum Drilling Rig
In the drilling process, the drill bit is the main tool for breaking the rock, and the wellbore is formed by the drill bitbreaking the rock. The formation of a wellbore is good or bad, and the length of time it takes is not only related to thecharacteristics of the formation rock being drilled and t
Jqb-80 Series Shearing Pump for Oilfield
JQB Series Shearing PumpModelJQB-80JQB-100JQB-120Discharge capacity80 m3/h100 m3/h120m3/hPumping head36 m40 m45mShearing efficiency95%95%95%Motor power37 kW45 kW55 kWImpeller speed2200rpm2200rpm2200rpmInlet diameter6"6"6"Outlet diameter5"5"5"Weight700 kg760 kg850 kgOver

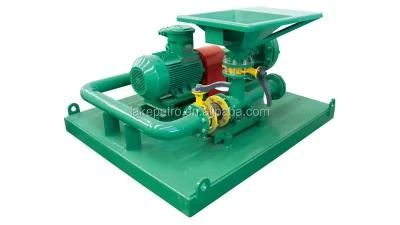

Integrated Automation for a Mud System - Solids Control
Overview Product DescriptionCompany ProfileLake Petro companyFAQHow to order?Please send us your inquiry with detail item description or with Model number.If there is no packing demand we take it as our regular exported standard packing.We will offer you an order form for filling.

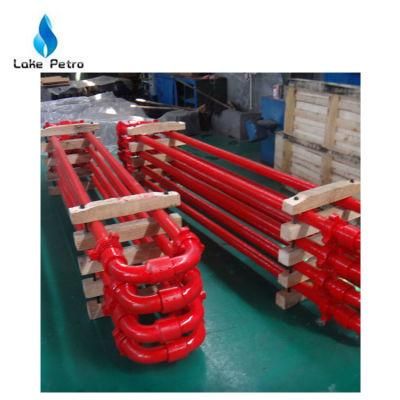

Fmc Fig1502 Chiksan Circulating Hose Loop/Lsg-10 Longsweep Hose
Company InformatioLake Petro companyis a professional supplier of various oilfield equipment, including oil drilling and service equipment,oil production equipment,OCTG ,wellhead & downhole tools and spare parts with API certification. our products have already been exported to USA, South Americ

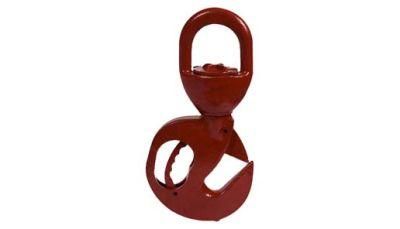

API 8A/8c Rh Series 25 Ton Sucker Rod Hook with Factory Price
Overview Product DescriptionDetailed PhotosProduct ParametersPackaging & ShippingCompany ProfileFAQHow to order?Please send us your inquiry with detail item description or with Model number.If there is no packing demand we take it as our regular exported standard packing.We wi

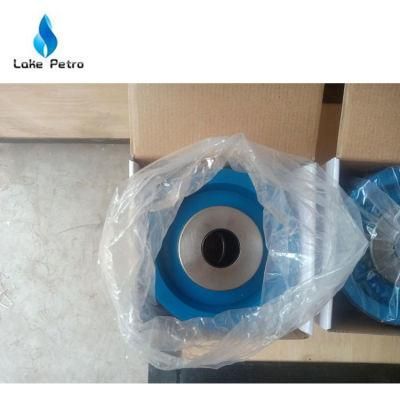

2022 Hot Selling Cheap Custom Multipurpose Mud Pump Rubber Piston
