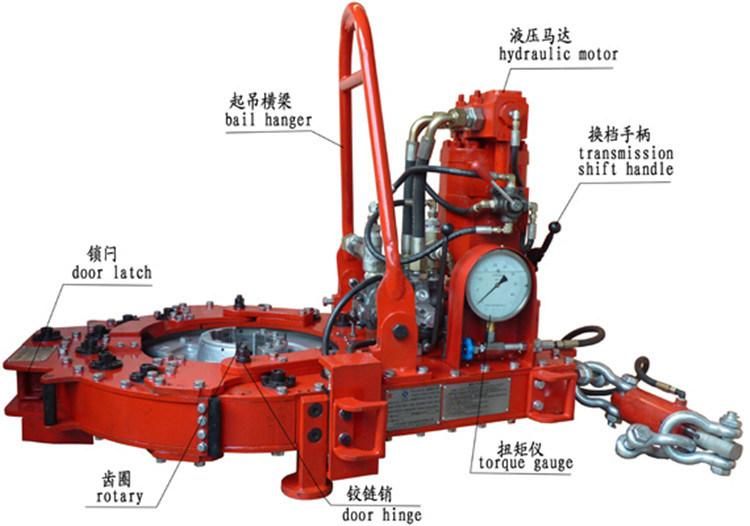

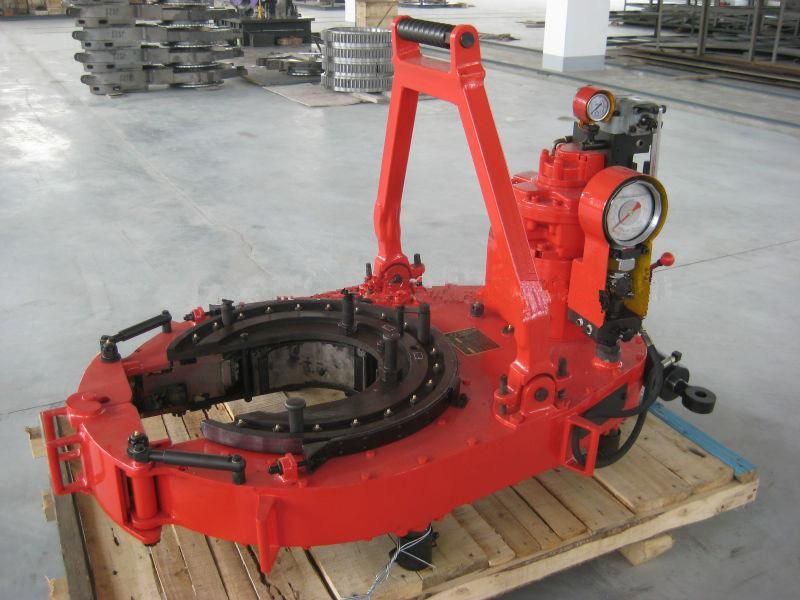

API 7K Automatically Handled Drill Pipe Power Tong for Small Drill Floor
Goldenman Petroleum Equipment Co., Limited- After-sales Service：24,7
- Warranty：1year
- Manufacturing Process：Casting
- Surface Treatment：No
- Operation Pressure：5000psi
- Material：Cast Steel
Base Info
- Model NO.：HS
- Product Name：API 7K Automatically Handled Drill Pipe Power Tong
- Transport Package：Export Packing
- Specification：DP power tong 203-100
- Trademark：GOLDENMAN
- Production Capacity：3500
Description
Model
ZQ203-125I
ZQ203-100
ZQ203-100II
ZQ203-100III
ZQ162-50
ZQ127-25
Size range
mm
127-203
127-203
127-203
127-203
85-162
65-127
in
31/2coupling-8body
31/2coupling-8body
31/2coupling-8body
31/2coupling-8body
23/8coupling-5body
23/8coupling-31/2body
Max. torque
kN.m
125
100
100
100
50
25
ft.lbf
92200
73750
73750
73750
36880
18440
The speed of tong head Hi.
rpm
40
40
40
40
60
65
The speed of tong head Lo.
rpm
2.7
2.7
2.7
2.7
4.1
10.5
Hydraulic system pressure rating
MPa
20
16.6
16.6
16.6
16
12
psi
2900
2400
2400
2400
2320
1740
Hydraulic system flow rating
L/min
114
114
114
114
120
180
gpm
30
30
30
30
32
48
Stroke of shifting sylinder
mm
1500
1500
1500
1000
1000
in
59
59
59
39.4
39.4
Moving distance of tong
mm
0-1500
in
0-59
Lifting distance of tong
m
0-485
0-800
in
0-19
0-31.5
Overall dimensions
mm
1720*1050*1750
1700*1000*1400
1700*1000*1400
1750*1650*2050
1570*800*1190
1110*790*820
in
68*41*69
67*39*55
67*39*55
69*65*81
62*31*47
44*31*32
Weight
kg
2600
2400
2500
3250
1500
620
lb
5730
5290
5510
7165
3310
1360
