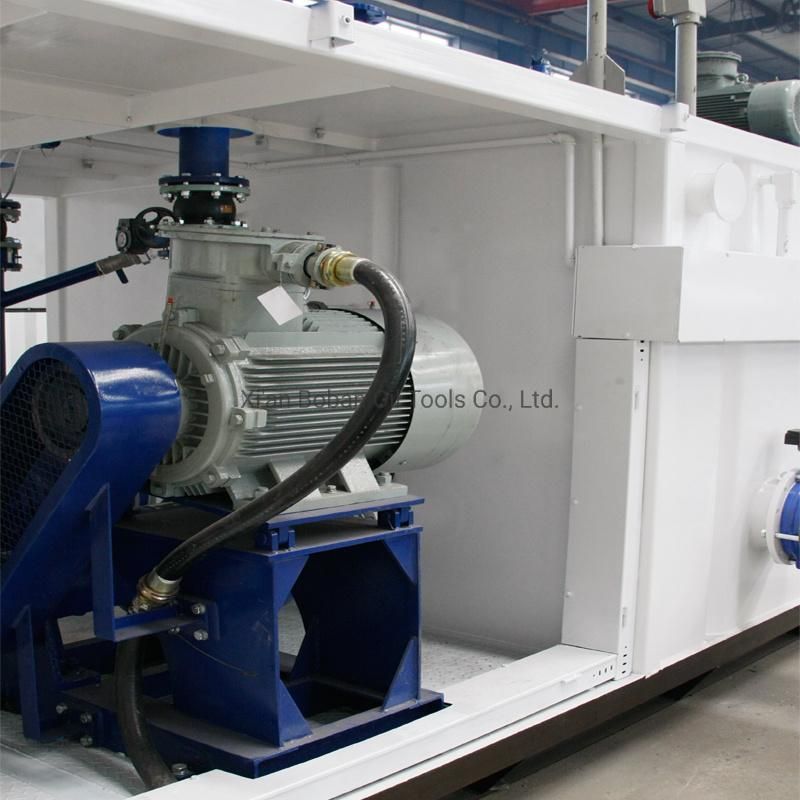

Oilfield Drilling Fluid Shear Pump
Xi'an Boban Oil Tools Co., Ltd.- After-sales Service：24,7
- Warranty：12 Months
- Certification：ISO 9001:2008
- Power Source：Electric
- Operation Pressure：Vacuum
- Material：Cast Steel
Base Info
- Model NO.：BBSP6545-1
- Type：Shear Pump
- Flow：100 150m3,H
- Transport Package：Pallet or Wooden Case
- Specification：1170× 1032× 1576 , 46x41x62
- Trademark：BOBAN & OEM
- Origin：China
- HS Code：8431431000
- Production Capacity：30 PCS Per Month
Description
Overview
Product Description
Product Parameters
| Model | SP6545-1 |
| Inlet Pipe (mm)/(in) | DN150 / 6 |
| Outlet Pipe (mm)/(in) | DN125 / 5 |
| Flow (m3/h) | 150 |
| Lift (m)/(ft) | 45 / 148 |
| Rotating speed (rpm) | 1900 |
| Efficiency (%) | 67 |
| Cavitation margin (m)/(ft) | 2.5 / 8 |
| Shaft Power (Kw) | 36 |
| Matching Power (Kw) | 75 |
| Weight (kg) | 1120 |
| External dimension (mm)/(in) | 1170×1032×1576 / 46x41x62 |
