Mud Pump Ceramic Liner Piston Assembly

HEBEI XINHUAFA PETROLEUM MACHINERY CO., LTD.
  • Manufacturing Process：Forging
  • Surface Treatment：Spray-Paint
  • Operation Pressure：Vacuum
  • Material：Cast Steel
  • Module：Fb1600,F1600,12p160,Pz-9,A1700PT,T1600
  • Application：Piston Pump

Base Info

  • Specifications：60 to 300mm
  • Advantage：Durable
  • Tensile Strength：>610MPa
  • Name：Unbt Mud Pump Urethane Bonded Pistons
  • Package：Standard
  • MOQ：3
  • Port：Tianjin
  • Model：F Series,3nb Series,etc
  • Theory：Centrifugal Pump
  • Transport Package：Wooden Box and Sea Shipment
  • Specification：standard
  • Trademark：xinhuafa
  • Origin：Cn
  • HS Code：841391000
  • Production Capacity：50000sets,Per Year

Description

Basic Info.

Specifications 60 to 300mm Advantage Durable Tensile Strength >610MPa Name Unbt Mud Pump Urethane Bonded Pistons Package Standard MOQ 3 Port Tianjin Model F Series,3nb Series,etc Theory Centrifugal Pump Transport Package Wooden Box and Sea Shipment Specification standard Trademark xinhuafa Origin Cn HS Code 841391000 Production Capacity 50000sets/Per Year

Product Description

API Certified Emsco Ceramic Pump Piston Assembly

Mud Pump Ceramic Liner Piston Assembly

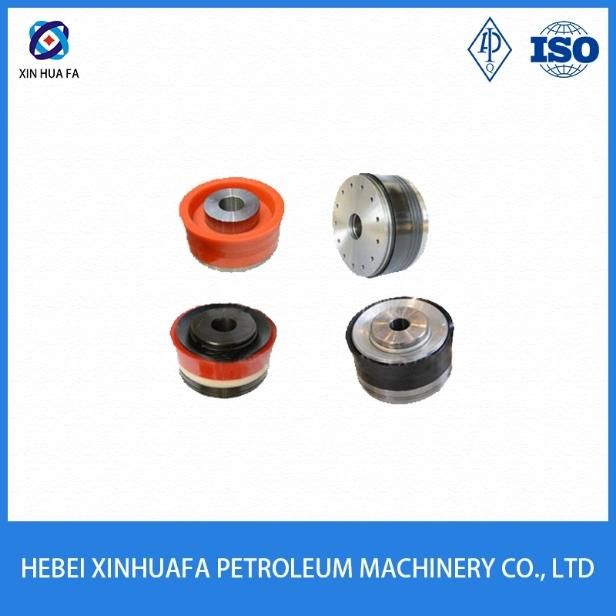

These pistons are constructed of urethane, bonded to a solid metal hub. Double durometer urethane is designed to provide optimum performance in oil base or water base mud and high drilling pressures.


Product Parameters
Russian pumpUNBT950,UNB600,8T650,UNBT 1180L,NBT600,NBT300ect.
BOMCO/Emsco/HongHuaFB1300/1600, F1300/1600, F800/1000, F500 & some duplex pumps.
Gardener denverPZ 7, PZ 8/9, PZ 10/11, KF-FXK, FY-FXD, FD-FXX, FG-FXG, FQ-FXQ, FF-FXP, FG-GXG.
National7P50, 8P80, 9P100, 10P130, 12P160, 14P220, JWS165, JWS340/400, C250/350, K700, K500, K380.
OilwellA560/600PT, A850/1100PT, A1400/1700PT, 214P, 810P.
IdecoT500, T800/1000, T1300/1600.
WirthTPK1000, TPK1600, TPK2000/2200.
WeatherfordMP-5,MP-8,MP-10,MP-13,MP-16
Features, Advantages and Benefits:

This piston is the best choice for oil-based and synthetic drilling fluids.

The piston is bonded to the hub for optimal strength and extrusion resistance.

The improved seal design centers the piston and promotes longer piston life with reduced liner wear.

The cut-back hub protects the liner from damage.

The dual-durometer elastomeric compound resists extrusion while ensuring a tight seal and improved wiping action.

The piston comes complete with a hub O-ring and sleeve.
Mud Pump Ceramic Liner Piston Assembly

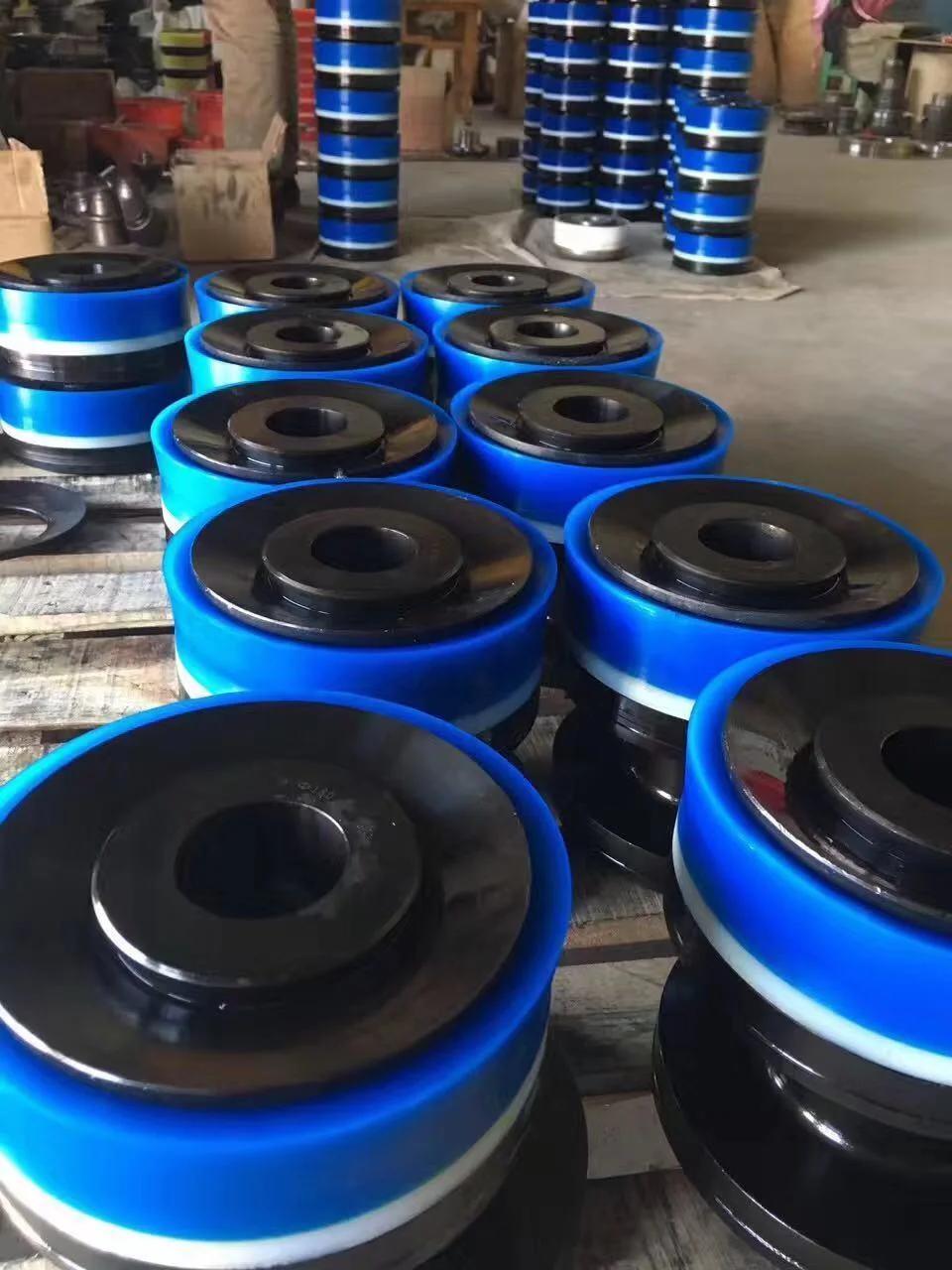

Our Factory
