Jws340 Mud Pump Liner

HEBEI XINHUAFA PETROLEUM MACHINERY CO., LTD.
  • Manufacturing Process:Forging
  • Surface Treatment:Spray-Paint
  • Operation Pressure:Atmospheric Pressure
  • Material:Ceramic
  • Hardness(Hra):180
  • Cetification:API

Base Info

  • Specifications:60 to 300mm
  • Yield Strength:>450MPa
  • Tensile Strength:>610MPa
  • Outer Sleeve:Forged Steel 45#
  • Inner Sleeve:Zirconia
  • Name:Zirconia Liner
  • Package:Standard
  • MOQ:3
  • Port:Tianjin
  • Model:F Series,3nb Series,etc
  • Theory:Centrifugal Pump

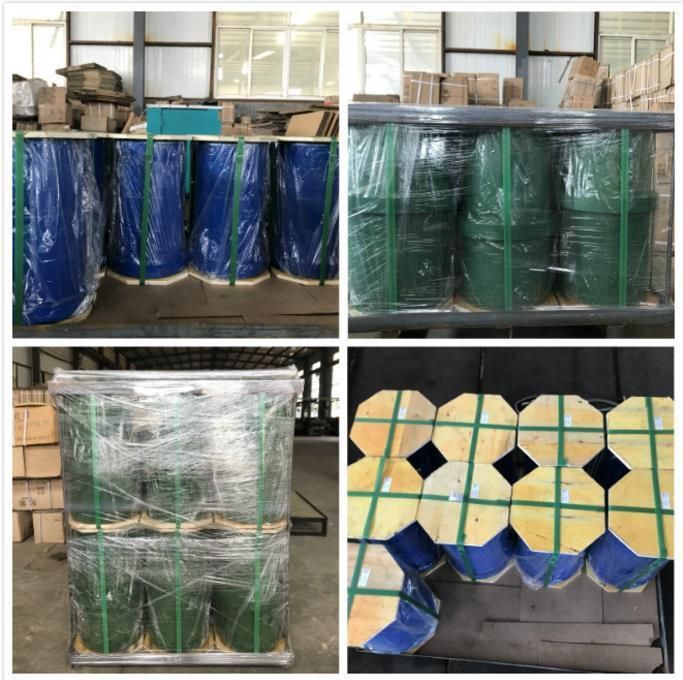

  • Transport Package:Wooden Box and Sea Shipment
  • Specification:standard
  • Trademark:xinhuafa
  • Origin:Cn
  • HS Code:841391000
  • Production Capacity:50000sets,Per Year

Description

Basic Info.

Specifications 60 to 300mm Yield Strength >450MPa Tensile Strength >610MPa Outer Sleeve Forged Steel 45# Inner Sleeve Zirconia Name Zirconia Liner Package Standard MOQ 3 Port Tianjin Model F Series,3nb Series,etc Theory Centrifugal Pump Transport Package Wooden Box and Sea Shipment Specification standard Trademark xinhuafa Origin Cn HS Code 841391000 Production Capacity 50000sets/Per Year

Product Description

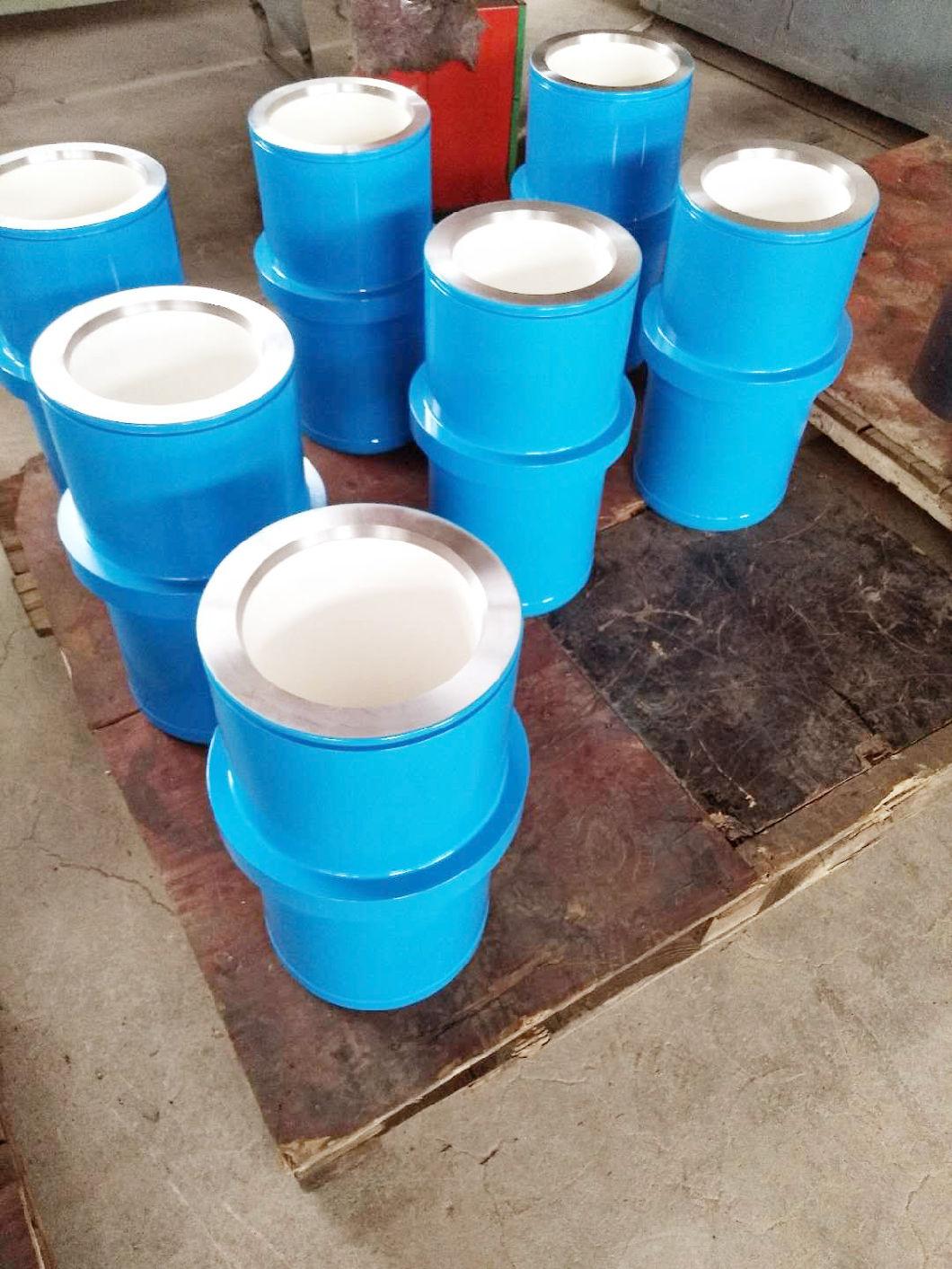

JWS340 mud pump cylinder liner For Oilfield Mud Pump

1.  mud pump cylinder liner

2. API 7K Standard mud pump liner  used for mud pumps include premium Chromium Liners, Ceramic Liners, Chromium-plated Liners and Hardened Liners.

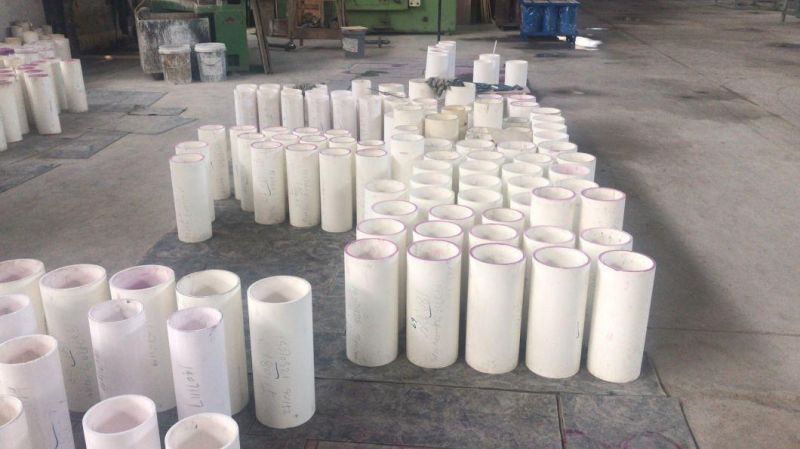

3. Zirconia ceramic liners offer lifetime cost saving, significantly longer service, better performance and safer operation thanthose made of more commonly used alumina ceramic.

4. We could provide you qualified goods with positive price. If you have any interest, welcome to contact with me!

Features:

1.API Spec 7K standard design

2. Normal service life not less than 4000h;

3.High performance cost ratio;

4.Forged 45# steel for outer sleeve.
Advantage compared to alumina:

zirconia exhibits better impact strength;
zirconia is harder than alumina;
zirconia can be honed to finer surface finishes than alumina. Finished to 4RMS, the zirconia liners provide a surface finish that is three to four times finer than alumina.


All three of these property advantages translate to lower ownership costs. The improved wear directly extend the service life of the sleeve, while the improved impact strength reduces significantly the costs of replacing broken liners in the field. The surface finish improvements, meanwhile, have an indirect effect. The finer surface finish means less friction with the elastomer-and-metal pump pistons, which in turn extends piston life and reduces pump-cooling requirements.


Jws340 Mud Pump Liner
Jws340 Mud Pump Liner
Jws340 Mud Pump Liner

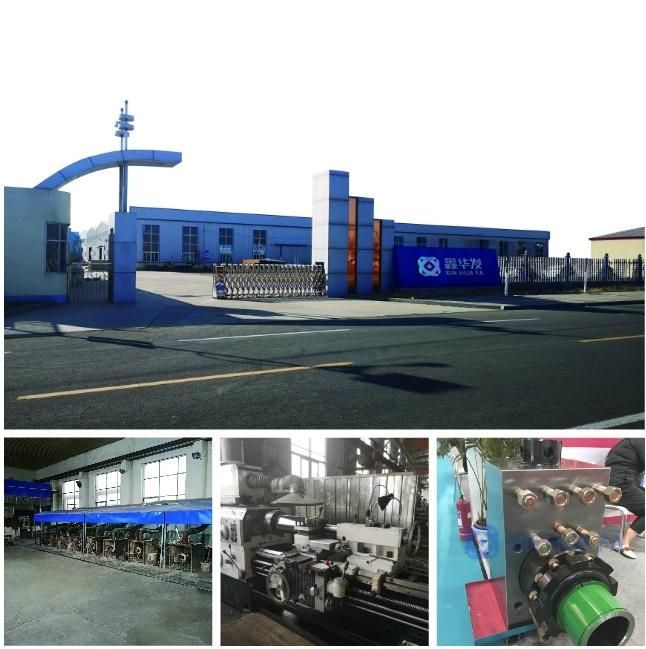

Company profile

Hebel Xinhuafa Petroleum Machinery Co. LTD was established in 2006,with 5000m2 plant.The company focuses on R&D of mud pump fittings and several R&D results were horned with awards as well as patented for invention. The company is engaged in product design, manufacturing and service on all the quality oilfield replacement parts, including mud pump fluid end parts including Fluid end modules, liners, pistons, valves,&seats, extension rods, piston rods, valve covers etc.
The company holds a professional technical team and is equipped with advanced machineries,improving the technical skills and updating product quality,
   Our products are certified by ISO9001 quality control. We supply products not only our oilfields company of domestic, but also dozens of countries all over the world, such as USA, Canada, Indonesia and Iran. With several years' persistence, we are widely accepted as a professional supplier of high quality mud pump cylinder liners and other parts in fluid end modules.



Jws340 Mud Pump Liner
Jws340 Mud Pump Liner



Certifications:
Jws340 Mud Pump Liner

If interested,please contact me:
