• Colour：Customer Requirement
• Transport Package：Container
• Specification：3 1,8",3 1,2",4 1,8",4 3,4",5",6",6 1,4′,6 1,2",6
• Trademark：UPET
• Origin：China
• HS Code：73061900
• Production Capacity：200000 PCS,Year

Basic Info.

Colour Customer Requirement Transport Package Container Specification 3 1/8",3 1/2",4 1/8",4 3/4",5",6",,6 1/4′,6 1/2",6 Trademark UPET Origin China HS Code 73061900 Production Capacity 200000 PCS/Year

Product Description

Quick Details
Applicable Industries:Energy & Mining, oil field
Place of Origin:China
Type:valve and hanger
Machine Type:wellhead tools
Certification:API
Material:alloy steel
Processing Type:forging and casting
Use:Well Drilling
Product name:API 6A oil drilling wellhead equipment tubing head
Size:7-1/16" ~ 13-5/8"
MOQ:1
Application:API 6A oil drilling wellhead equipment tubing head
Name:wellhead Casing /Tubing drilling spool Casing/Tubing head
Packing:Wooden Case
Work pressure:2000-15000 psi
Standard:API 6A
Connection:FLANGE

Packaging & Delivery

Selling Units:Single item
Single package size: 100X30X30 cm
Single gross weight:50.000 kg
Package Type:PLYWOOD CASE
Lead Time :

Quantity(Sets)	1 - 1	>1
Est. Time(days)	25	To be negotiated

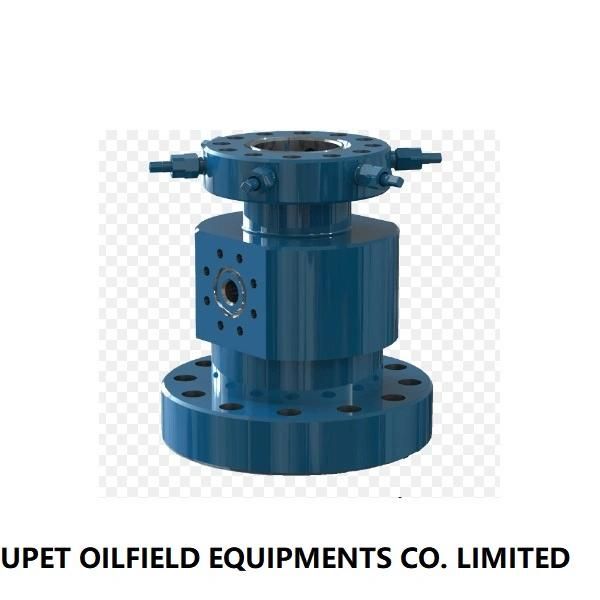

 API 6A Oilfield Equipment wellhead Casing /Tubing drilling spool Casing/Tubing head

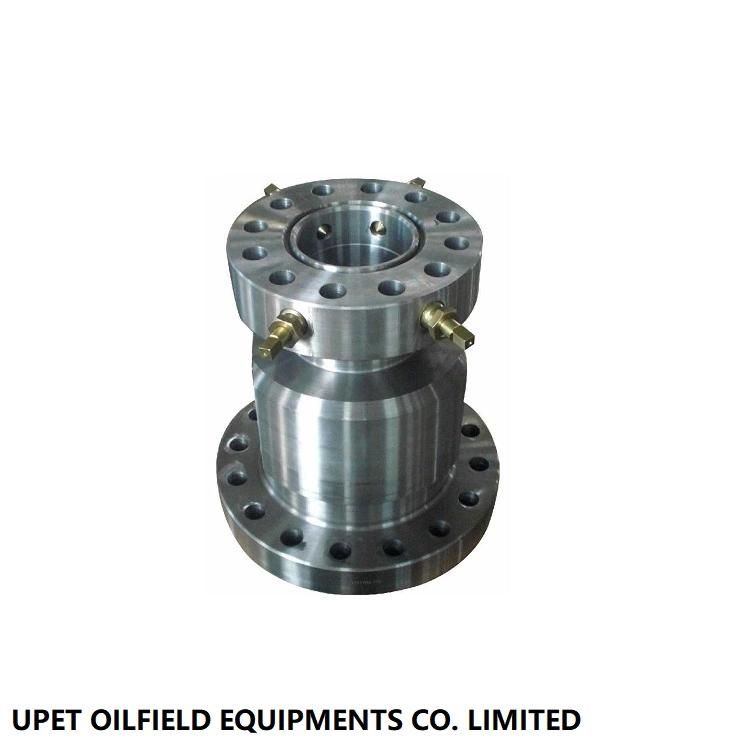

Tubing head is a body with two flange that can supports the tubing string on a oilwell, seals off the pressure between the casing and tubing annulus, and connect with tubing adapter on the top.

Tubing Head &tubing spool are a straight bore bowl with 45° landing shoulder design which avoids damage to sealing areas by drilling tools, and provides wedging of the tubing hangers, bowl protectors and test plugs. the secondary seal for the last casing pipe can be an integrated "OO" seal type or the plastic injection type, but also accepts reducer bushings "4-O" and "PE" (Pressure Energized).The upper flange is supplied with lockdown screws for packoff tubing hanger retention. The lower flange includes a grease fitting and orifice for testing of the secondary seal.

1 spool and adapter can be designed according to customer's all kinds of models and sizes to

   meet the requirements in work site. there are three kinds of connecting models for bop

2 connection and outlets. including flanged,studded and clamped-in style.gasket groove is

   line welded by stainless steel according to API Spec 6A . so  as to prolong the using period

   and decrease the maintaining cost.

Product Name	tubing head
Working Pressure	2000 ~10000psi
Nominal Bore	7-1/16 ~13-5/8
Working Medium	oil,natural gas,mud and gas containing H2S,CO2
Working Temperature	-46°C~121°C(Class LU)
Material Class	AA,BB,CC,DD,EE,FF,HH
Specification level	PSL1-4
