• Model NO.：HOSE
• Transport Package：Export Packing
• Specification：1inch-5inch
• Trademark：GOLDENMAN
• Production Capacity：150000

Basic Info.

Model NO. HOSE Transport Package Export Packing Specification 1inch-5inch Trademark GOLDENMAN Production Capacity 150000

Product Description

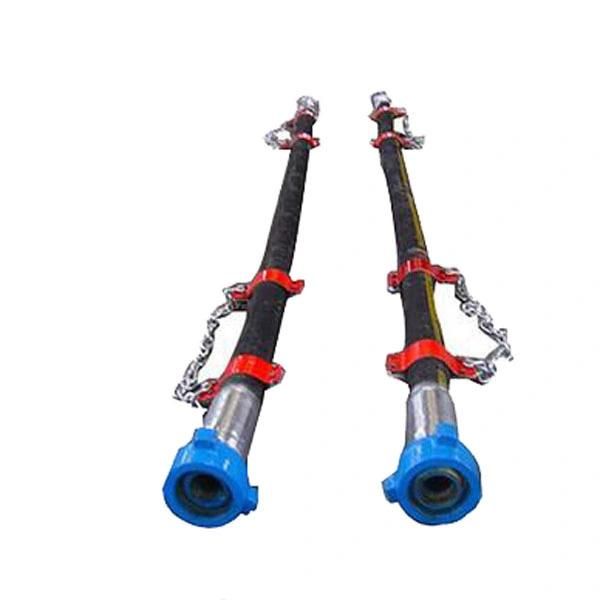

API 16D BOP hose for well control and high-pressure hose5,000psi W.P. - 10,000 psi Test-15,000 Minimum Burst
Certification/Standards:
API Spec 16D--ISO 14693
Recommended For:

Blow-out preventer (BOP) systems requiring high pressure, high temperature and flame resistant control lines certified to API 16D.
Armored hose assemblies with flame resistant cover withstand minimum 1300°F (+700°C) flame temperature at working pressure for 5
minutes without failure.
Tube: Modified Nitrile. Black.
Reinforcement:

Multiple layers of textile fabric and steel cable, with one layer middle rubber placed between cable layers.
Cover:

Fire resistant, rubber cover, stainless steel armored to handle abrasion, corrosion, cutting, gouging, oil and weather.
Couplings:

Crimped couplings with over-ferrule fire protection.
Temperature:

-40°F to +212°F (-40°C to +100°C) continuous service.
Options:

Accessories such as API 16D quick connector, self-sealing union and exterior armor to protect hoses against extreme environmental
damage are available upon request.
