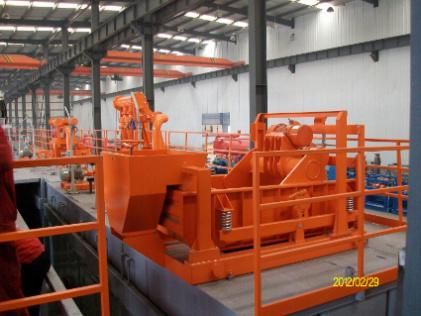

Linear Motion Shale Shaker for O&G Drilling
Xi'an Boban Oil Tools Co., Ltd.- After-sales Service：24,7
- Warranty：18 Months After Shipment Date.
- Certification：ISO 9001:2000, API
- Mesh Shape：Hexagonal
- Sieve Mesh Number：20-325
- Layer：Multilayer
Base Info
- Model NO.：BBLS70-3
- Material：Stainless Steel
- Type：Linear
- Model No.：Bbls703
- Vibration Motion：Linear Motion
- Vibrating Motor：2*1.72kw
- Ex-Proof Standard：Exdllbt4
- G-Force：≤ 7.4 (Adjustable)
- Screen Surface Area：2.2m2
- Deck Adjustment Angle：-1°-+5°
- Screen Type：Hark Hook
- Screen Dimension：1050*700mm
- Screen Qty：3
- Capacity：500-600gpm
- Weir Height：882mm
- Dimension：2818*1840*1640mm
- Weight：1815kg
- Packing Term：Pallet & Thermal Shrinkage Film
- Transport Package：Pallet & Thermal Shrinkage Film
- Trademark：BOBAN & OEM
- Origin：China
- HS Code：8431431000
- Production Capacity：35 Sets Per Month
Description
Linear Motion Balanced Elliptical Motion Vibration Motor 2*1.72kW 2*1.86kw 2*1.72kW 1.0kw+1.65kW Vibration Strength ≤7.4(Adgustable) 7.1(6.5~7.5) ≤7.0(Adjustable) 6.5 Screen Surface Area 2.2/24 2.7/29 2.7/29 24ft2 AWD -1~+5 -1~+5 -1~+5 -1 °~+ ° Capacity 500~600GPM 600~750GPM 600-750GPM 500~600GPM Screen Type Hook strip Pre-tensioned Hook strip Hook strip Screen Dimension 700*1050mm 585*1165 mm 830*1080mm 700*1050mm Screen QTY 3 4 3 3 Weir Height 35" 30" 35" 35" Outer Dimension 2818*1840*1640mm 2998*1856*1522mm 3190*1870*1640mm 2818*1840*1640mm Weight 1815kg 1925kg 1930kg 1790kg
Advantages
1. Rich experienced technical team.
2. Offerring high quality products at competitive price.
3. Shortest delivery time.
4. Flexible payment terms.
5. Timely after-sale service.
6. We are qualified vendor of many well-known O&G drilling companyies in different countries,
Include but not limited: Italy, Romania, Poland, Egypt, Nigeria, Kuwait, UAE, India, etc.
