API 10d Slip on Single Piece Centralizer Integral Spring Centralizer
Puyang Zhongshi Group Co., Ltd.- Certification：ISO 9001:2000, ISO 9001:2008, API 10d
- Surface Treatment：Spray-Paint
- Centralizer Type：Elastic
- Structure：Automatic Reversing
- Material：Cast Steel
- Type：Centralizer
Base Info
- Model NO.：4 1,2"-20"
- Size：4 1 ,2"-20"
- Sample：Available
- Drawing：Available
- Height：Based on Request
- Markings：Available
- ODM：Available
- Bows：6PCS
- Length：350mm
- Thickness：4mm
- Width：4mm
- Transport Package：Wood Cases
- Specification：4 1,2"-20"
- Trademark：ZS
- Origin：Henan, China
- HS Code：843143100
- Production Capacity：20000PCS,Month
Description
Basic Info.
Model NO. 4 1/2"-20" Size 4 1 /2"-20" Sample Available Drawing Available Height Based on Request Markings Available ODM Available Bows 6PCS Length 350mm Thickness 4mm Width 4mm Transport Package Wood Cases Specification 4 1/2"-20" Trademark ZS Origin Henan, China HS Code 843143100 Production Capacity 20000PCS/MonthProduct Description

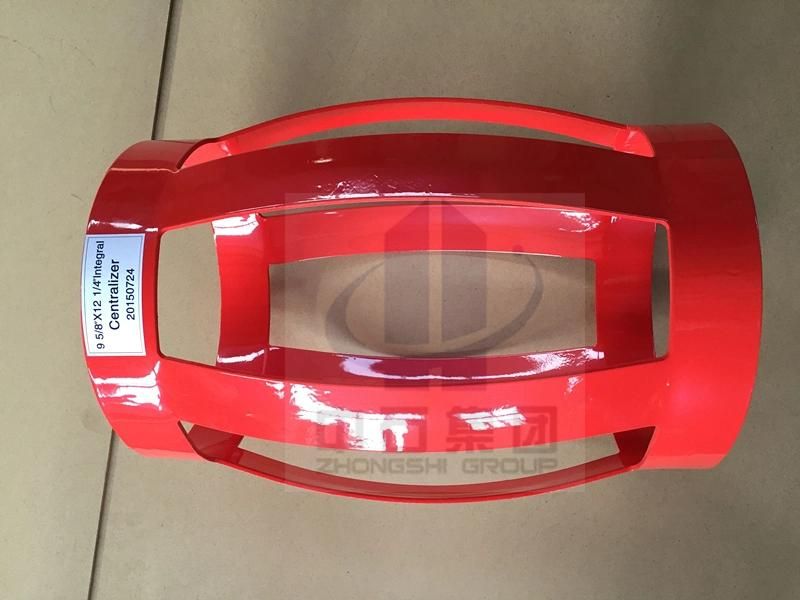

API 10D Slip on Single Piece Centralizer Integral Spring CentralizerThese Centralizers are designed for High Restoring Force and Low Starting Force for centralizing the casing pipe in a Vertical, Horizontal and Deviated well.

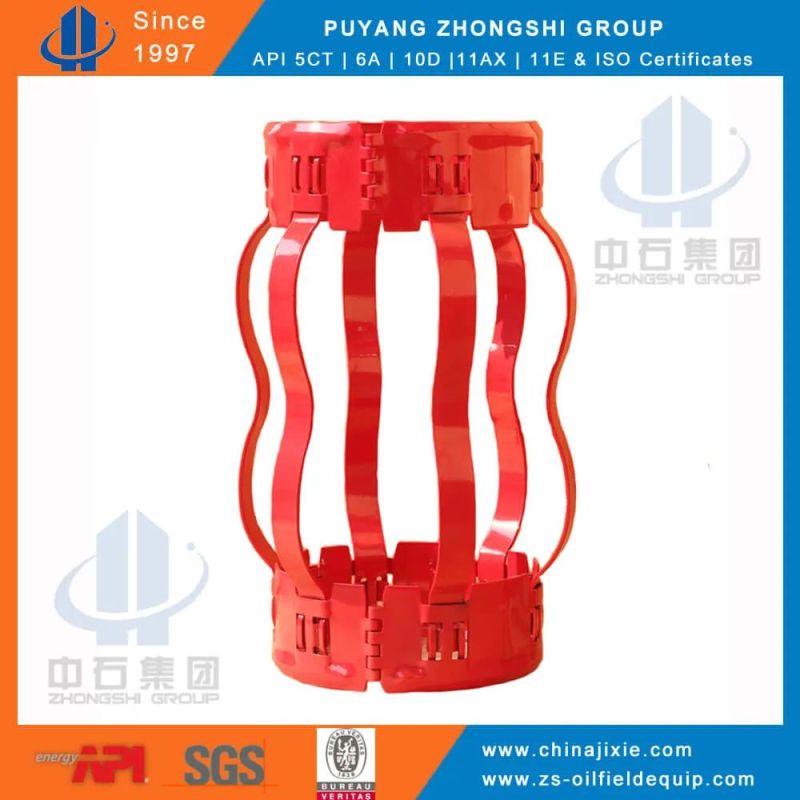

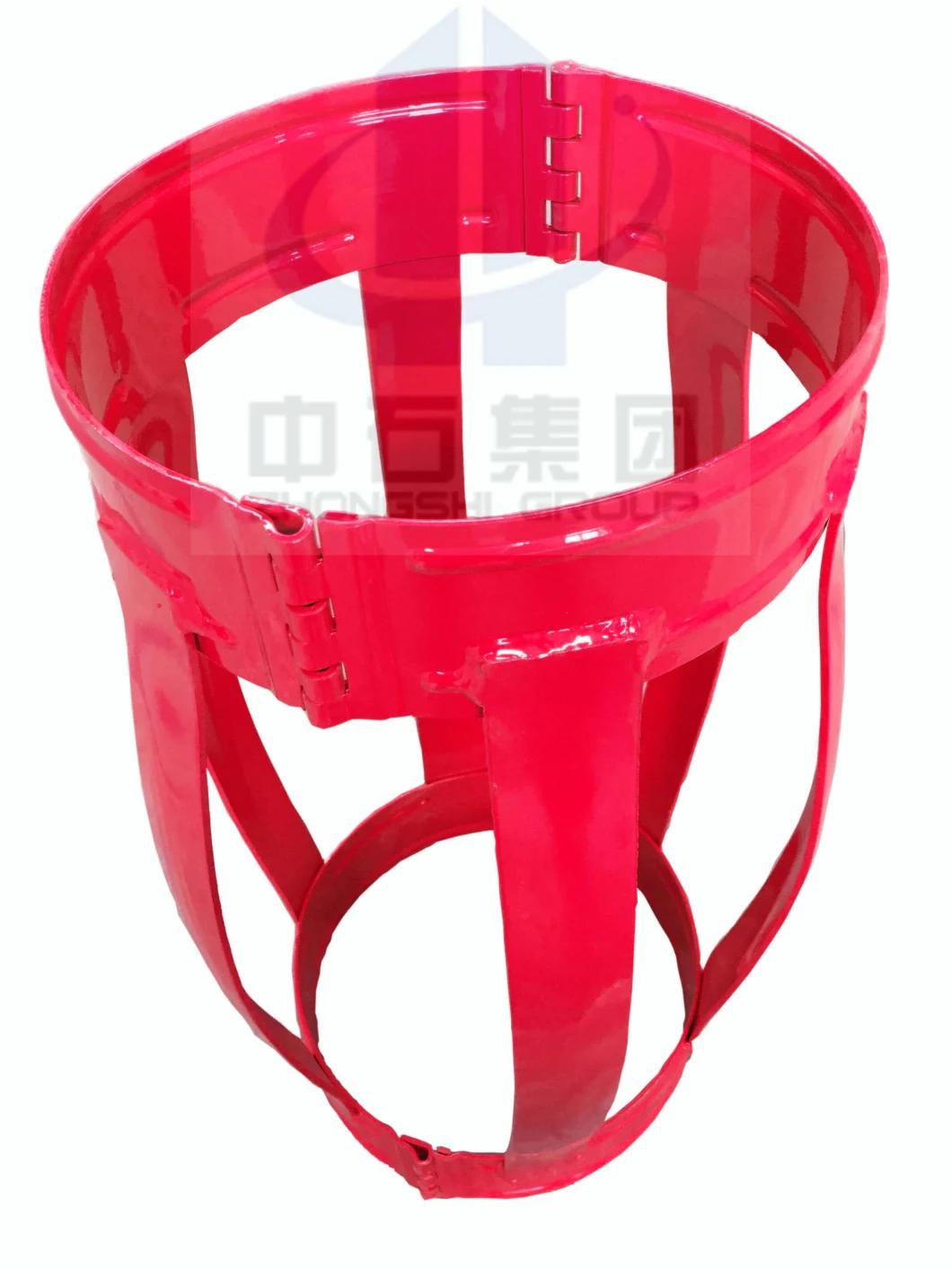

Premium quality Bows are made of special alloy steel and hot formed in totally controlled heat treatment plant to achieve the uniform hardness all over. Spec and performance index of bow spring casing centralizer meet API Spec 10D. The woven centralizer is connected by pin when in use, the unfolded centralizer can be stacked flatly for convenient storage and transportation.
Characteristics:
1) Designed for High Restoring Force and Low Starting & Running Force

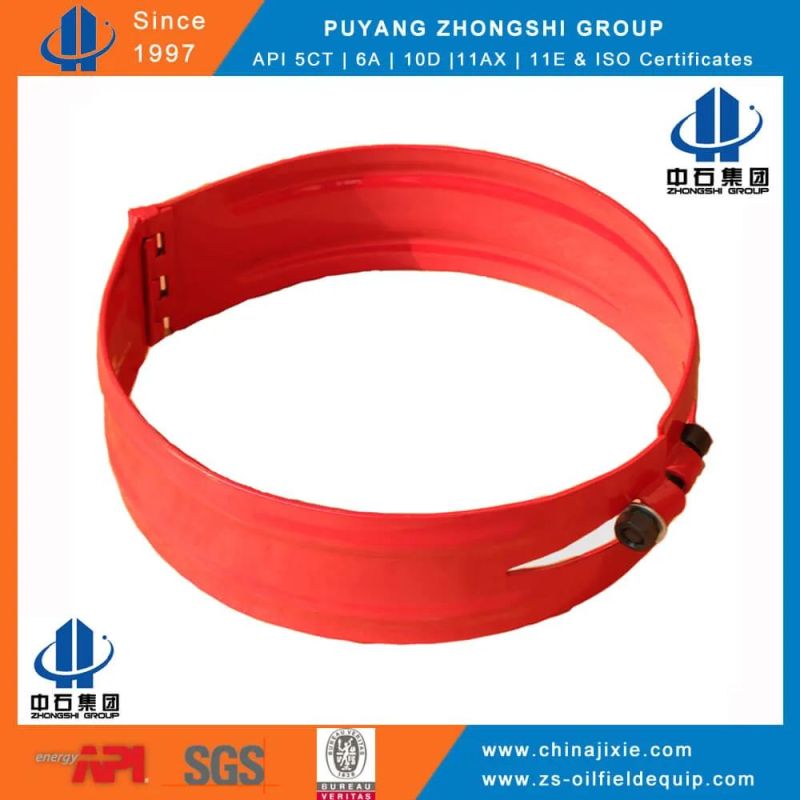

2) End collars are designed with self-locking action, which are easy to assemble.
3) Undergo special coating process to prevent from rust
4) Can be shipped in half assembled condition for economy in shipping and storage costs.
5) Specification: 4"---20". Any special sizes or combination can available on request.
API 10D High Restoring Force Integral Casing Centraliser,Slip on Bow Spring Centralizer, Single One Piece Casing Centralizer
1) Material: 65Mn steel
2) Type: Single Piece Bow Spring Casing Centralizer
3) Standard: API 10D
4) API and ISO certified
5) Specifications: 4 1/2''---20''. More special sizes or combination are available as requested.
6) High Restoring Force: This kind of single piece casing centralizer has restoring force about 198% higher than API standard.
10) Parameter
The Single piece centralizers are available in sizes 4½" to 20" . (Any special sizes or combination can available on request).
These Centralizers are designed for High Restoring Force and Low Starting Force for centralizing the casing pipe in a Vertical, Horizontal and Deviated well.
Premium quality Bows are made of special alloy steel and hot formed in totally controlled heat treatment plant to achieve the uniform hardness all over. Spec and performance index of bow spring casing centralizer meet API Spec 10D. The woven centralizer is connected by pin when in use, the unfolded centralizer can be stacked flatly for convenient storage and transportation.
Model (in) | Hooping In-Dia. (mm) | Hooping thickness(mm | Total length (mm) | Max.Out-Di (mm) | Amount of spring(mm) |
5-1/2" x 8-1/2" | 142-148 | 3-5 | 650±50 | 225±5 | 5 |
7" x 9-5/8" | 181-186 | 3-5 | 650±50 | 255±5 | 6 |
7" x 8-1/2" | 181-186 | 3-5 | 650±50 | 235±5 | 6 |
8-5/8 x 12-1/4" | 223-228 | 3-5 | 650±50 | 330±5 | 8 |
9-5/8 x 12-1/4" | 250-255 | 3-5 | 650±50 | 330±5 | 8 |
10-3/4 x 12-1/4" | 274-276 | 3-5 | 650±50 | 330±5 | 9 |
13-3/8"x17-1/2" | 342-347 | 3-5 | 650±50 | 450±5 | 11 |
18-5/8"x24" | 475-477 | 3-5 | 600±50 | 610±5 | 12 |
20"x26" | 509-511 | 3-5 | 600±50 | 660±5 | 12 |
